Product Details:
Payment & Shipping Terms:
|
| Conductor: | Bare Copper, Tinned Copper, Silver Plated Copper | Insulation: | PVC, XLPE, TPE, PU Etc |
|---|---|---|---|
| Jacket: | PVC, XLPE, TPE, PU Etc | Cable Shape: | Round |
| Application: | Industrial, Comsumer Electrics, Medical, Etc | Packing: | Packed In Reels |
| Volatge: | 300V | Temperature: | -20～80℃ |

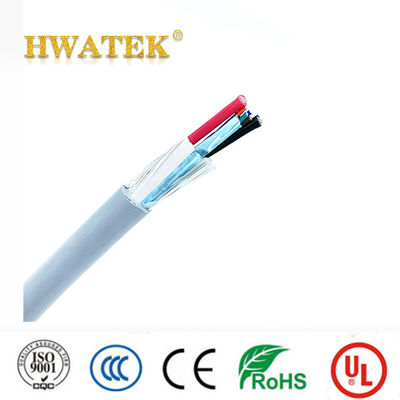

| High Light: | UL2464 Flexible Electrical Cable,Flexible Electrical Cable 300V,5C X 26AWG Flexible Cable |
||
Application: Internal wring or external interconnection of electronic equipment.
Application standard: UL758&UL1581&CSA C22.2 No.210
Product character:
Excellent insulation performance, stable chemical properties
Pass UL VW-1 and CSA FT1 vertical flame test
Heat resistance, anti-acid and environmental protection etc.
Tensile strength:≥10.3MPa Elongation:≥100%
Aged condition:113±1℃×168h
Percent of original tensile strength: ≥70%
Percent of original elongation: ≥65%
| ITEM | 5C×26AWG(7/0.16T)+AB | ||||
| CONDUCTOR | Material | Tinned copper stranded | |||
| Size | 7/0.16 mm | ||||
| O.D.(Ref) | 0.48mm | ||||
| INSULATION | Material | SR-PVC | |||
| Min.average thickness | 0.23mm | ||||
| Min.thickness at any point | 0.18mm | ||||
| O.D. | 1.00±0.05mm | ||||
| CABLING | Filler | Optional | |||
| Material | Al-mylar(facing out) | ||||
| BRAID | Material | Tinned copper | |||
| Size | 0.10mm(80% min.) | ||||
| JACKET | Material | PVC | |||
| Min.average thickness | 0.76mm | ||||
| Min.thickness at any point | 0.61mm | ||||
| O.D. | 5.00±0.20mm | ||||
Construction
Conductor : stranded, tinned or bare copper
Insulation:SR- PVC
black cores with continuous white numbering (also available in other colours on request)
GN-YE conductor, 3 cores and above in the outer layer
Shield or Braid: bare or tinned copper braid or Spiral and AL-mylar
Jacket: PVC
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International: UL758 , UL1581, UL2556
RoHS,REACH Compliant,
Technical data
Rated voltage:300V
Rated Temperature:-20ºC-80ºC
Flame: VW-1, FT1, FT2
Voltage withstand test:AC 2.0kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible
