HWATEK WIRES AND CABLE CO.,LTD.
|
Product Details:
Payment & Shipping Terms:
|
| Conductor: | Bare Copper, Tinned Copper, Silver Plated Copper | Insulation: | PVC, XLPE, TPE, PU Etc |
|---|---|---|---|
| Jacket: | PVC, XLPE, TPE, PU Etc | Cable Shape: | Round |
| Application: | Industrial, Comsumer Electrics, Medical, Etc | Packing: | Packed In Reels |
| Volatge: | 300V | Temperature: | -40～80℃ |
| High Light: | PVC Insulation Ul2464 Cable,OD 4.8mm Ul2464 Cable,Ul2464 Industrial Flexible Cable |
||

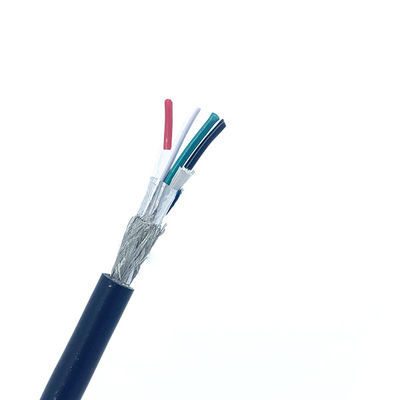

4CX22AWG SHLD PVC GY OD 4.8MM BARE COPPER UL2464 CE CABLE
Product Description
Application: Internal wring or external interconnection of electronic equipment.
Application standard: UL758&UL1581&CE
Product character:
Excellent insulation performance, stable chemical properties
Pass UL VW-1 and CSA FT1 vertical flame test
Heat resistance, anti-acid and environmental protection etc.
Tensile strength:≥10.3MPa Elongation:≥100%
Aged condition:113±1℃×168h
Percent of original tensile strength: ≥70%
Percent of original elongation: ≥65%
UL758 -E258652-20060111-CertificateofCompliance-1....
| Conductor | Bare copper stranded | |
| Cross section | 22AWG | |
| Construction | 7/0.254mm | |
| Strand Dia. | 0.76mm | |
| Insulation | PVC | |
| Nom.Thickness | 0.23mm | |
| Min.Thickness | 0.18mm | |
| Insulation Dia. | 1.30±0.08mm | |
| Insulation colour | 1.White 2.Brown 3.Green 4.Yellow | |
| Jacket | PVC | |
| Nom.Thickness | 0.76mm | |
| Min.Thickness | 0.61mm | |
| Outer Dia. | 4.80±0.25mm | |
| Colour | Grey | |
Conductor : stranded, tinned or bare copper
Construction
Insulation:SR- PVC
black cores with continuous white numbering (also available in other colours on request)
GN-YE conductor, 3 cores and above in the outer layer
Shield or Braid: bare or tinned copper braid or Spiral and AL-mylar
Jacket: PVC
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International: UL758 , UL1581, UL2556
RoHS,REACH Compliant,
Technical data
Rated voltage:300V
Rated Temperature:-40ºC-80ºC
Flame: VW-1, FT1, FT2
Voltage withstand test:AC 2.0kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible
Company Profiles
Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
Certificates
Production Progress
Shipping
FAQ
1. Q:What can you supply?
A: We do produce consumer electronics wires, hock up wires, industrial cables, robot cables, ev charging cables, new/green energy cables.
2. Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
3. Q:Can we get samples before ordering?
A: Yes, we are willing to arrange samples for you.
4. Q: What's your lead time?
A: Normally we can finish you orders in 2-3 weeks, and 5-6 weeks in peak season.
5. Q. How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final Inspection before shipment.
