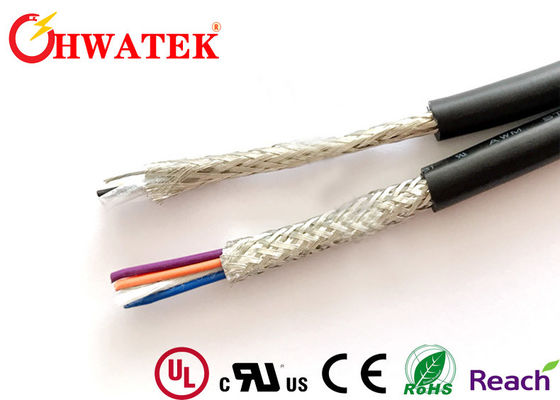

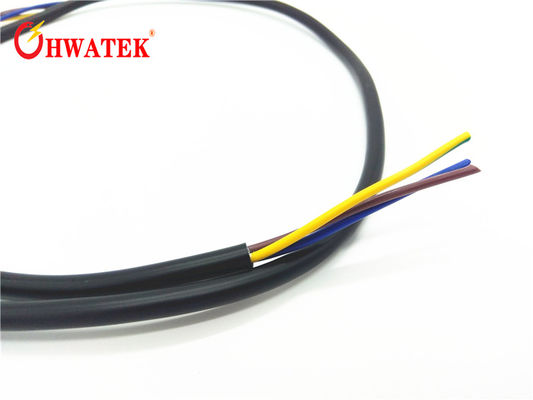

UL2461 3C AWG20 Flexible Wires And Cables With Tinned Or Bare Copper Conductor

UL2461 3C AWG20 Flexible Wires And Cables With Tinned Or Bare Copper Conductor
UL2461 3C AWG20 Flexible Wires And Cables With Tinned Or Bare Copper Conductor

Large Image :  UL2461 3C AWG20 Flexible Wires And Cables With Tinned Or Bare Copper Conductor

Product Details:
Place of Origin: China
Brand Name: HWATEK
Certification: UL,CUL, CE,ROHS, REACH
Model Number: UL2461 Multicore Flexible Cable
Payment & Shipping Terms:
Minimum Order Quantity: 3 KM
Price: Negotiable
Packaging Details: carton/pallet
Delivery Time: 2-3W
Payment Terms: T/T
Detailed Product Description
Product Name: UL2461 Multicore Flexible Cable Size: 20AWG
Conductor: Solid Or Stranded, Tinned Or Bare Copper Core Number: Two Or More Single -core Wires Was Twisted Into Twisted Into Pair Or Cabling Again
Standard: UL758,UL1581, UL2461 Insulation Material: PVC, SRPVC ,PP, PE, FOAM PE
Shield Material: Bare Or Tinned Copper Braid Or Spiral And AL-mylar Sheath Material: PVC
Application: CNC Machines,household Appliances, Computer And Elecronic Business Machines Rated Voltage: 300V
Temperature: -40℃-80℃ Flame: VW-1,FT1,FT2
Free Sample: YES
High Light:

AWG20 Wires And Cables

,

Bare Copper Conductor Multicore Flexible Cable

,

UL2461 Wires And Cables

UL2461 3C AWG20 Flexible Wires And Cables With Tinned Or Bare Copper Conductor



Product character:
Excellent insulation performance, stable chemical properties
Pass UL VW-1 and CSA FT1 vertical flame test
High-temperature resistance, anti-acid, environmental protection etc.

Application: For internal wiring or external interconnection of electronic equipment.
Application standard: UL758&UL1581&CSA C22.2 No.210

Constructure:
Tinned or bare copper, stranded or single conductor
SR-PVC or XLPE insulation
Two or more single-core wires is twisted into pair or cabling again to form round cable, or flat, oval-shaped cable
Tinned or bare copper wire, spiral or braid shield or Al-mylar wrapped shield
PVC jacket



Construction

Conductor : solid or stranded, tinned or bare copper
Insulation:PVC, SRPVC ,PP, PE, FOAM PE

Shield or Braid: bare or tinned copper braid or Spiral and AL-mylar

Jacket: PVC



Standards
International: UL758 , UL1581, UL2461

RoHS,REACH Compliant,



Technical data
Rated voltage:300V

Rated  Temperature:80

Flame: VW-1, FT1, FT2

Voltage withstand test:AC 0.5kV/1min

Printing :E258652 AWM STYLE 2461 80℃ 300V VW-1 --- c
Note: Where "XX" means AWG No.



Properties

effectively resist electromaganetic interference

Excellent insulation performance



Specifications



ITEM 3C×20AWG(26/0.16T)
CONDUCTOR Material Tinned copper stranded
Size 26/0.16±0.008mm
O.D.(Ref) 0.94mm
INSULATION Material SR-PVC
Min.average thickness 0.23mm
Min.thickness at any point 0.18mm
O.D. 1.50±0.10mm
CABLING Assembly 3C×20AWG(26/0.16T)
JACKET Material PVC
Min.average thickness 0.76mm
Min.thickness at any point 0.61mm
O.D. 5.00±0.20mm



Certificates



UL, CUL, CE

UL2461 3C AWG20 Flexible Wires And Cables With Tinned Or Bare Copper Conductor 0UL2461 3C AWG20 Flexible Wires And Cables With Tinned Or Bare Copper Conductor 1

Packing and Shipping



  1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
  2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
  3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
  4. The cargo, manufacturer, packing details will be labeled on the outer packing;
  5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
  6. Shipping term, It depends on the value of the goods and the will of the customer.
