110 H GY 4x18 10019964 TE PN 2360082-2 UV Resistance Cable UL 21089

Certification
China HWATEK WIRES AND CABLE CO.,LTD. certification
China HWATEK WIRES AND CABLE CO.,LTD. certification
thank you very much for your quick response . Your professional cable solution helps me out , Cable quality is very good . It fits our connectors

—— Gonalze

Your products quality beyond my imagine, I highly appreciate your great support , Hope have better and deeper cooperation in future.

—— Bharath

I'm Online Chat Now

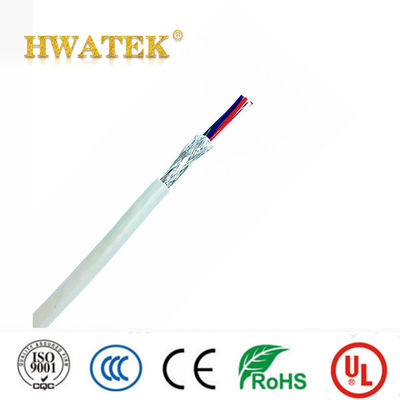

110 H GY 4x18 10019964 TE PN 2360082-2 UV Resistance Cable UL 21089

110 H GY 4x18 10019964 TE PN 2360082-2 UV Resistance Cable UL 21089
110 H GY 4x18 10019964 TE PN 2360082-2 UV Resistance Cable UL 21089

Large Image :  110 H GY 4x18 10019964 TE PN 2360082-2 UV Resistance Cable UL 21089

Product Details:
Place of Origin: China
Brand Name: Hwatek
Certification: UL, CE, RoHS, Reach
Model Number: UL21089
Payment & Shipping Terms:
Minimum Order Quantity: 1220m
Price: To be negotiated
Packaging Details: Packed in rolls or reels
Delivery Time: 3-6 Weeks
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 100km per day
Detailed Product Description
Conductor: Bare Copper, Tinned Copper, Silver Plated Copper Insulation: XLPE
Jacket: FRPE Cable Shape: Round
Application: Industrial, Comsumer Electrics, Medical, Etc Packing: Packed In Reels
Volatge: 600V Temperature: -40~75℃
High Light:

Industrial Flexible Cable UL 21089

,

PN 2360082-2 UV Resistance Cable

CABLE CLASSIC 110 H GY 4x18 10019964 TE PN 2360082-2 UL 21089 UV resistance CABLE

Product Description

Application: Internal wring or external interconnection of electronic equipment.
Application standard: UL758&UL1581
Product character:
Excellent insulation performance, stable chemical properties
Pass
IEC 60332-1-2 flame test
UV resistance , anti-acid and environmental protection etc.

Tensile strength:≥8.27 MPa     Elongation:≥100%

Aged condition:100±1℃×48h

Percent of original tensile strength: ≥85%

Percent of original elongation: ≥85%



UL758 -E258652-20060111-CertificateofCompliance-1....



SPECIFICATION CABLE NAME UL21089
CABLE SPEC 4Cx1.0mm2
RoHS Compliant
ITEM 4Cx1.0mm2
CONDUCTOR Material Bare copper stranded
Size 32/0.20mm
O.D.(Ref) 1.31mm
INSULATION Material FRPE
Min.average thickness 0.35mm
Min.thickness at any point 0.30mm
O.D. 2.1±0.10mm
CABLING Filler Soild PE
Assembly 4Cx1.0mm2
JACKET Material FRPE
Min.average thickness 0.76mm
Min.thickness at any point 0.61mm
O.D. 6.6±0.30mm


Conductor : stranded, tinned or bare copper
Construction

Insulation:XLPE
black cores with continuous white numbering (also available in other colours on request)
GN-YE conductor, 3 cores and above in the outer layer
Shield or Braid: bare or tinned copper braid or Spiral and AL-mylar
Jacket: FRPE

Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,

Standards
International: UL758 , UL1581, UL21089
RoHS,REACH Compliant,

Technical data
Rated voltage:600V
Rated Temperature: -40~75℃
Flame: FT2
Voltage withstand test:AC 4.0kV/1min

Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible

110 H GY 4x18 10019964 TE PN 2360082-2 UV Resistance Cable UL 21089 0

110 H GY 4x18 10019964 TE PN 2360082-2 UV Resistance Cable UL 21089 1



110 H GY 4x18 10019964 TE PN 2360082-2 UV Resistance Cable UL 21089 2





Company Profiles

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.



Certificates
110 H GY 4x18 10019964 TE PN 2360082-2 UV Resistance Cable UL 21089 3

Production Progress

110 H GY 4x18 10019964 TE PN 2360082-2 UV Resistance Cable UL 21089 4

Shipping
110 H GY 4x18 10019964 TE PN 2360082-2 UV Resistance Cable UL 21089 5

FAQ
1. Q:What can you supply?
A: We do produce consumer electronics wires, hock up wires, industrial cables, robot cables, ev charging cables, new/green energy cables.
2. Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
3. Q:Can we get samples before ordering?
A: Yes, we are willing to arrange samples for you.
4. Q: What's your lead time?
A: Normally we can finish you orders in 2-3 weeks, and 5-6 weeks in peak season.
5. Q. How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final Inspection before shipment.
