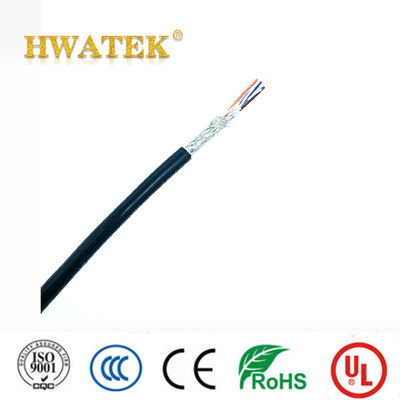

UL2725 30AWG*5P Twisted Pair + 30AWG*11C+AEB Cable For Patient Monitoring System
Product Details
Twisted Pair AEB Cable
,30AWG*11C+AEB Cable
,UL2725 AEB Cable
UL2725 30AWG*5P Twisted Pair + 30AWG*11C+AEB Cable for Patient Monitoring System in Hospitals
Product Description
Application: Internal wring or external interconnection of electronic equipment.
Application standard: UL758&UL1581
Product character:
Tensile strength:≥10.3MPa Elongation:≥100%
Aged condition:136±1℃×168h
Percent of original tensile strength: ≥70%
Percent of original elongation: ≥65%
UL758 -E258652-20060111-CertificateofCompliance-1....
| Construction | ||
| Conductor | Tinned Copper Stranded | |
| Cross section | A:30AWG | B:30AWG |
| Construction | 7/0.10mm | 7/0.10mm |
| Strand Dia.(Ref.) | 0.30mm | 0.30mm |
| Insulation | PVC | PVC |
| Nom.Thickness | 0.23mm | 0.23mm |
| Min.Thickness | 0.18mm | 0.18mm |
| Insulation Dia. | 0.80±0.08mm | 0.80±0.08mm |
| Insulation colour | A1.white&black A2.white&brown A3.white&red A4.white&orange A5.white&green | B1.black B2.brown B3.red B4.orange B5.yellow B6.green B7.blue B8.purple B9.gray B10.white B11.pink |
| Twisted | 1.6mm | / |
| Filler | Optional | |
| Material | Al-mylar(foil face out) | |
| Assembly | 5P×30AWG+11C×30AWG+A | |
| Drain | Tinned Copper Stranded,7/0.10mm | |
| Braid | Tinned copper 0.10mm,≥80% | |
| Jacket | PVC | |
| Nom.Thickness | 0.76mm | |
| Min.Thickness | 0.61mm | |
| Outer Dia. | 7.50±0.30mm | |
| Colour | Per request | |
Insulation:ETFE
Conductor : Tinned copper stranded
Construction
Insulation: 1.black 2.brown 3.red 4.orange 5.yellow 6.green
7.blue 8.violet 9.gray 10.white 11.pink 12.natural
13.darkt red 14.darkt green 15.darkt blue
Jacket :Black
Jacket: PUR
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International: UL758 , UL1581, UL2464
RoHS,REACH Compliant,
Technical data
Rated voltage:30V
Rated Temperature: 80℃
Voltage withstand test:AC 0.5kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible
