Product Details:
Payment & Shipping Terms:
|
| Conductor: | Tinned Copper Stranded | Insulation: | PE |
|---|---|---|---|
| Jacket: | FRPE | Cable Shape: | Round |
| Application: | Industrial, Comsumer Electrics, Medical, Etc | Packing: | Packed In Reels |
| Volatge: | 1500V | Temperature: | -15~70℃ |
| High Light: | Corrosion Resistance RG178 Coaxial Cable,Anti Corrosion RG178 Coaxial Cable,Digital TV RG178 Coaxial Cable |
||

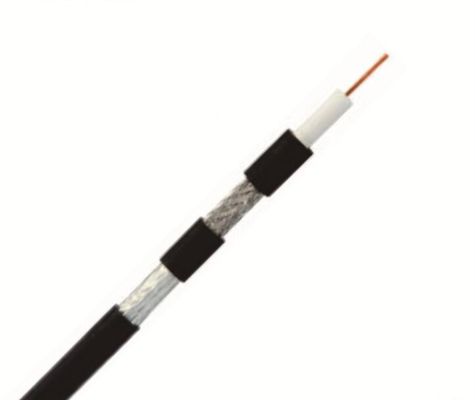

Copper RG58 / RG178 Coaxial Cable For Digital TV Corrosion Resistance
Product Description
Application: Internal wring or external interconnection of electronic equipment.
Application standard: Custom-made
Product character:
Tensile strength:≥8.27MPa Elongation:≥100%
Aged condition:113±1℃×168h
Percent of original tensile strength: ≥75%
Percent of original elongation: ≥75%
UL758 -E258652-20060111-CertificateofCompliance-1....
| ITEM | RG58C/U | ||||
| CONDUCTOR | Material | Tinned copper stranded | |||
| Size | 19/0.18mm | ||||
| O.D.(Ref) | 0.90mm | ||||
| INSULATION | Material | PE | |||
| Min.average thickness | 0.90mm | ||||
| Min.thickness at any point | 0.72mm | ||||
| O.D. | 3.00±0.15mm | ||||
| BRAID | Material | Tinned copper | |||
| Size | 24/7/0.10mm(95% Min.) | ||||
| JACKET | Material | FRPE | |||
| Min.average thickness | 0.70mm | ||||
| Min.thickness at any point | 0.56mm | ||||
| O.D. | 5.00±0.20mm | ||||
Insulation: nature
Insulation:PE
Conductor : Tinned copper stranded
Construction
Jacket: FRPE
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International: UL758 , UL1581, UL2464
RoHS,REACH Compliant,
Technical data
| Freq. | Nom.Att. | Freq. | Nom.Att. |
| 1MHz | 1.4dB/100m | 400MHz | 37.7dB/100m |
| 10MHz | 4.6dB/100 m | 700MHz | 55.8dB/100m |
| 50MHz | 10.8dB/100 m | 900MHz | 65.6dB/100m |
| 100MHz | 16.1dB/100 m | 1000MHz | 70.5dB/100 m |
| 200MHz | 23.9dB/100 m |
Max. Operating Voltage:1500V
Opreating temperature:-15~70℃
Voltage withstand test:AC 2.3kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible
