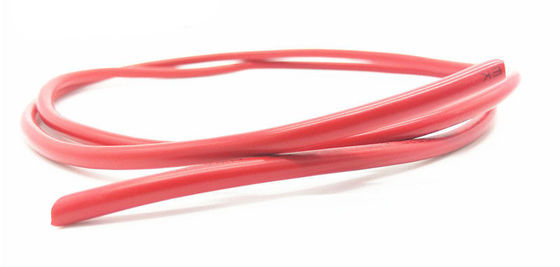

8 AWG XLPE OD 6.8 Mm High Voltage Tinned Copper Single Cable 125℃ 3000V

8 AWG XLPE OD 6.8 Mm High Voltage Tinned Copper Single Cable 125℃ 3000V
8 AWG XLPE OD 6.8 Mm High Voltage Tinned Copper Single Cable 125℃ 3000V

Large Image :  8 AWG XLPE OD 6.8 Mm High Voltage Tinned Copper Single Cable 125℃ 3000V

Product Details:
Place of Origin: China
Brand Name: Hwatek
Certification: UL, CE, RoHS, Reach
Model Number: UL3817
Payment & Shipping Terms:
Minimum Order Quantity: 1220m
Price: To be negotiated
Packaging Details: Packed in rolls or reels
Delivery Time: 3-6 Weeks
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 100km per day
Detailed Product Description
Conductor: Tinned Copper, Silver Plated Copper Insulation: XLPE
Cable Shape: Round Application: Industrial, Comsumer Electrics, Medical, Etc
Packing: Packed In Reels Volatge: 3000V
Temperature: 125℃ HWATEK: HT2102555
Highlight:

OD 6.8 Mm Single Cable

,

XLPE Tinned Copper Cable

,

OD 6.8 Mm Tinned Copper Cable

8 AWG XLPE OD 6.8 mm high Voltage Tinned copper single Cable 125℃ 3000V



Product Description

Application: This specification covers FEP insulated cable for intenal wiring of electronic equipment, such as Note-PC,PDA, Mobile phone.


Product character:

1) Nominal voltage: 3000V
2) Rated temperature:125℃
3) Conductor: Tinned copper stranded
4) Insulator:XLPE
5) Operating temperature : 125ºC
6) Colours: Insualtion:per request
7) Standard: UL3817



UL758 -E258652-20060111-CertificateofCompliance-1....

Construction

Conductor Tinned copper stranded
Cross section 10mm2
Construction 320/0.20mm
Strand Dia.(Max) 4.50mm
Insulation XLPE
Nom.Thickness 1.00mm
Min.Thickness 0.80mm
Insulation Dia. 6.80±0.30mm
Insulation colour Per request

Conductor : stranded, tinned or bare copper

Construction

Insulation:XLPE
Insulation:per request
Jacket: XLPE

Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,

Standards
RoHS,REACH Compliant,

Technical data
Rated voltage:3000V
Rated Temperature:
125℃
Flame: VW1
Voltage withstand test:AC 2.0
kV/1min

Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible



Electric Performance

Rated Temperature 125
Voltage rating 3000V
Max.conductor DC resistance(20℃) 2.230Ω/km
Dielectric Strength AC 7.0 KV/1min

8 AWG XLPE OD 6.8 Mm High Voltage Tinned Copper Single Cable 125℃ 3000V 08 AWG XLPE OD 6.8 Mm High Voltage Tinned Copper Single Cable 125℃ 3000V 1



8 AWG XLPE OD 6.8 Mm High Voltage Tinned Copper Single Cable 125℃ 3000V 2





8 AWG XLPE OD 6.8 Mm High Voltage Tinned Copper Single Cable 125℃ 3000V 3





Company Profiles

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.



Certificates
8 AWG XLPE OD 6.8 Mm High Voltage Tinned Copper Single Cable 125℃ 3000V 4

Production Progress

8 AWG XLPE OD 6.8 Mm High Voltage Tinned Copper Single Cable 125℃ 3000V 5

Shipping
8 AWG XLPE OD 6.8 Mm High Voltage Tinned Copper Single Cable 125℃ 3000V 6

FAQ
1. Q:What can you supply?
A: We do produce consumer electronics wires, hock up wires, industrial cables, robot cables, ev charging cables, new/green energy cables.
2. Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
3. Q:Can we get samples before ordering?
A: Yes, we are willing to arrange samples for you.
4. Q: What's your lead time?
A: Normally we can finish you orders in 2-3 weeks, and 5-6 weeks in peak season.
5. Q. How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final Inspection before shipment.
