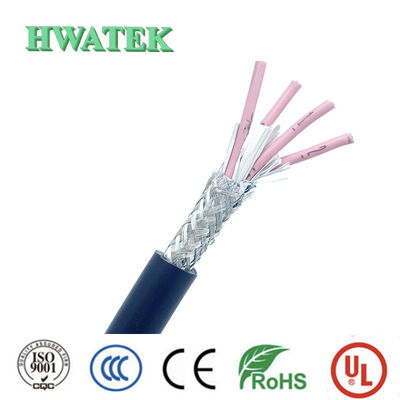

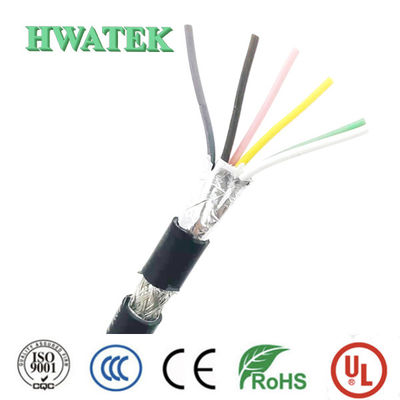

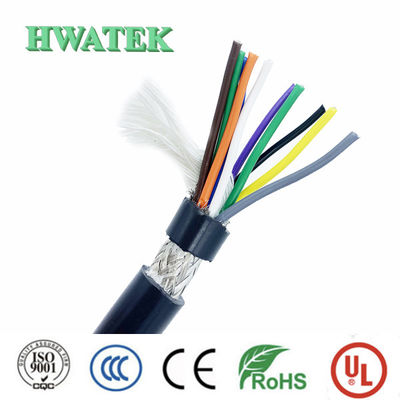

6387 equivalent cable UL 2919 9P × 24AWG + DA Tinned copper, 80°C 30V shield cable
Product Description
Application: Internal wring or external interconnection of electronic equipment.
Application standard: UL758&UL2919
Product character:
Flame rated : FT2
Tensile strength:≥10.3MPa Elongation:≥100%
Aged condition:113±1℃×168h
Percent of original tensile strength: ≥70%
Percent of original elongation: ≥65%
UL758 -E258652-20060111-CertificateofCompliance-1....
| Construction |
| Conductor |
Tinned copper stranded |
| Cross section |
24AWG |
| Construction |
7/0.20mm |
| Strand Dia. |
0.60mm |
| Insulation |
PVC |
| Nom.Thickness |
0.23m |
| Min.Thickness |
0.18mm |
| Insulation Dia. |
1.10±0.10mm |
| Insulation colour |
1.black&red 2.black&white 3.black&green 4.black&blue 5.black&brown 6.black&yellow 7.black&orange 8.red&green 9.red&white |
| Twists OD |
2.2mm(ref) |
| Filler |
Optional |
| Drain |
Tinned Copper 7/0.20mm |
| Material |
Al-mylar(foil face in),≥25% |
| Assembly |
9P×24AWG+DA |
| Jacket |
PVC |
| Nom.Thickness |
0.76mm |
| Min.Thickness |
0.61mm |
| Outer Dia. |
9.40±0.40mm |
| Colour |
per request |
Insulation:PVC
Conductor : Tinned copper stranded
Construction
Insulation:1.black&red 2.black&white 3.black&green 4.black&blue 5.black&brown 6.black&yellow 7.black&orange 8.red&green 9.red&white
Jacket : black
Jacket: PVC
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International: UL758 , UL1581, UL2919
RoHS,REACH Compliant,
Technical data
Rated voltage:30V
Rated Temperature: 80℃
Flame: FT2
Voltage withstand test:AC 2.0kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible
| Mechanical Performance |
| Material |
PVC |
| Tensile strength |
≥10.3MPa |
| Elongation |
≥100% |
| Aged condition |
113±1℃×168h |
| Percent of original tensile strength |
≥70% |
| Percent of original elongation |
≥65% |
