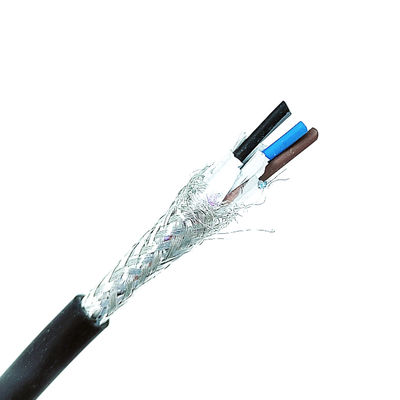

UL2586 2 X 7 AWG Bare Copper Stranded Shield Power Cable 600V PVC Jacket Outdoor Cable

Certification
China HWATEK WIRES AND CABLE CO.,LTD. certification
China HWATEK WIRES AND CABLE CO.,LTD. certification
thank you very much for your quick response . Your professional cable solution helps me out , Cable quality is very good . It fits our connectors

—— Gonalze

Your products quality beyond my imagine, I highly appreciate your great support , Hope have better and deeper cooperation in future.

—— Bharath

I'm Online Chat Now

UL2586 2 X 7 AWG Bare Copper Stranded Shield Power Cable 600V PVC Jacket Outdoor Cable

UL2586 2 X 7 AWG Bare Copper Stranded Shield Power Cable 600V PVC Jacket Outdoor Cable
UL2586 2 X 7 AWG Bare Copper Stranded Shield Power Cable 600V PVC Jacket Outdoor Cable

Large Image :  UL2586 2 X 7 AWG Bare Copper Stranded Shield Power Cable 600V PVC Jacket Outdoor Cable

Product Details:
Place of Origin: China
Brand Name: Hwatek
Certification: RoHS, Reach
Model Number: UL2586
Payment & Shipping Terms:
Minimum Order Quantity: 1000m
Price: To be negotiated
Packaging Details: Packed in rolls or reels
Delivery Time: 3-4 Weeks
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 100km per day
Detailed Product Description
Conductor: Bare Copper Stranded Insulation: PVC
Jacket: PVC Cable Shape: Round
Application: Industrial, Comsumer Electrics, Medical, Etc Packing: Packed In Reels
Volatge: 600V Temperature: 105℃
HWATEK: HT2303622
Highlight:

2 X 7 AWG Industrial Flexible Cable

,

Industrial Flexible PVC Jacket Outdoor Cable

,

Bare Copper Stranded Power Cable 600V

Bare Copper Stranded shield UL2586 2 x 7 AWG Power Cable 600V PVC Jacket Outdoor Cable



Product Description

Application: Internal wring or external interconnection of electronic equipment.
Application standard: Outdoor

Product character:

Flame rated :FT2

Tensile strength:≥10.3 MPa    Elongation:≥100%

Aged condition:136±1℃×168h

Percent of original tensile strength: ≥70%

Percent of original elongation: ≥65%



UL758 -E258652-20060111-CertificateofCompliance-1....

Construction
Conductor Bare copper stranded
Cross section 7AWG
Construction 84/0.40mm
Strand Dia. 4.80mm
Insulation PVC
Nom.Thickness 0.76mm
Min.Thickness 0.69mm
Insulation Dia. 6.40±0.30mm
Insulation colour 1.blue 2.black
Filler Optional
Material AL mylar(face out)
Assembly 2C×7AWG+A
Braid Tinned copper
Size 0.15mm,≥80%
Jacket PVC
Nom.Thickness 1.52mm
Min.Thickness 1.22mm
Outer Dia. 17.00±0.60mm
Colour Black


Insulation:PVC
Conductor : Bare copper
Construction

Insulation: 1.blue 2.black

Jacket : per request

Jacket: PVC

Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,

Standards
International: UL2586
RoHS,REACH Compliant,

Technical data
Rated voltage:600V
Rated Temperature:
105℃
Flame: FT2
Voltage withstand test:AC 2.0kV/1min

Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible



PHYSICAL PROPERTIES
Tensile strength: 10.3MPa
Elongation: 100%
Aged condition: 136±1×168h
Percent of original tensile strength: 70%
Percent of original elongation: 65%



UL2586 2 X 7 AWG Bare Copper Stranded Shield Power Cable 600V PVC Jacket Outdoor Cable 0

UL2586 2 X 7 AWG Bare Copper Stranded Shield Power Cable 600V PVC Jacket Outdoor Cable 1



UL2586 2 X 7 AWG Bare Copper Stranded Shield Power Cable 600V PVC Jacket Outdoor Cable 2
