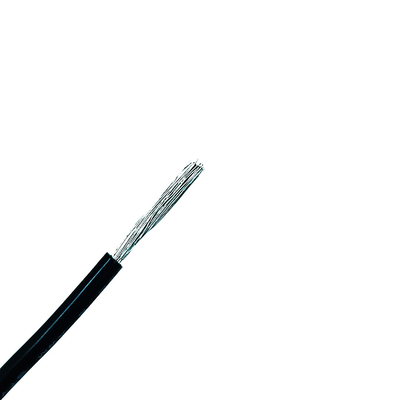

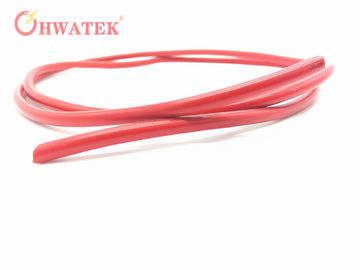

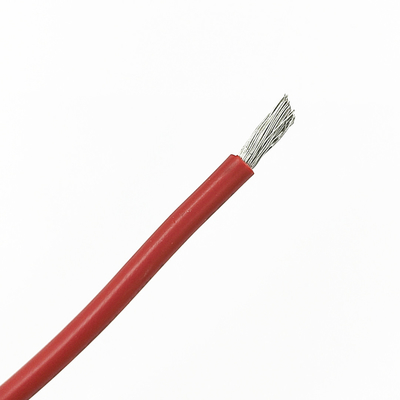

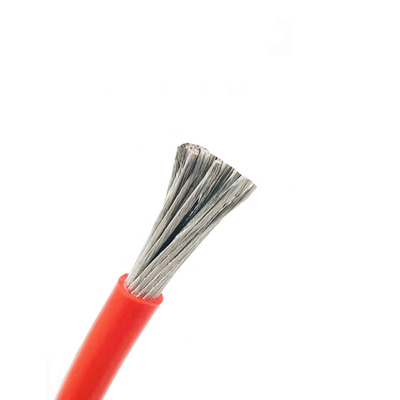

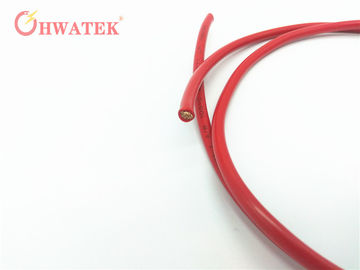

12mm2 600V 150℃ Silicone EX 30 Bare Copper Stranded Single Wire For Automotive
Product Details
Bare Copper Stranded Industrial Flexible Cable
,Silicone EX 30 Single Wire
,Automotive Industrial Flexible Single Wire
Bare Copper Stranded 12mm2 600V 150℃ Silicone EX 30 single wire for automotive applications
Product Description
Application: Internal wring or external interconnection of electronic equipment.
Application standard: Outdoor
Product character:
Flame rated :FT2
Tensile strength:≥3.45 MPa
Aged condition:180 ± 3 ℃ × 240h
Percent of original tensile strength: ≥75%
Percent of original elongation: ≥75%
UL758 -E258652-20060111-CertificateofCompliance-1....
| Construction | ||
| Conductor | Bare Copper Stranded | |
| Cross section | 12mm2 | |
| Construction | 78/0.45mm | |
| Strand Dia. | 4.70mm | |
| Insulation | SR | |
| Nom.Thickness | 1.00mm | |
| Min.Thickness | 0.80mm | |
| Insulation Dia. | 6.70±0.30mm | |
| Insulation colour | Orange | |
Insulation:SR
Conductor : Bare copper
Construction
Insulation: Orange
Jacket : Orange
Jacket: SR
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International:
RoHS,REACH Compliant,
Technical data E489601 (UL)
Rated voltage:600V
Rated Temperature: 150℃
Flame: FT2
Voltage withstand test:AC 5.0kV/5min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible
| Mechanical Performance | |||
| Insulation | |||
| Material | SR | ||
| Tensile strength | ≥3.45MPa | ||
| Elongation | ≥100% | ||
| Heat Deformation: | 150±3℃×4H,brine:10min,1.0kV/1min,No cracking | ||
| Cold Bend: | -40±2℃×4H,bending radius ≤5 × OD, winding speed of 0.5 turns/s, minimum winding number of 0.5 turns, brine:10min,1.0kV/1min,No cracking |
||
| Cold impact | -15±2℃×4H,weight:300g,high:100mm brine:10min,1.0kV/1min,No cracking |
||
| Scrape abrasion | Length:1m,hanging weight of 1.9kg, speed:1500 ± 75mm/min Minimum wear degree 3430mm |
||
| Heat ageing 1B | 180 ± 3 ℃ × 240h, winding diameter 255mm, weight 2700g, number of turns 3,No breakdown,brine:10min,1.0kV/1min, No cracking |
||
| Shrinkage by heat | 150± 3 ℃×15min,≤2mm | ||
| Resistance to liquid chemicals | IRM 902/903,50± 3℃ × 20h,Cold Bend(room temperature) | ||
| Flame test: | After burning in the flame, remove the flame and self extinguish within 30 seconds |
||
