Conductor: | Bared Copper Stranded | Insulation: | PVC |
---|---|---|---|
Jacket: | PVC | Cable Shape: | Round |
Application: | Industrial, Comsumer Electrics, Medical, Etc | Packing: | Packed In Reels |
Volatge: | 300/500V | Temperature: | -40~80℃ |
HWATEK: | HT2304501 | ||
Highlight: | Industrial Flexible PVC Jacket Cable,Bared Copper Industrial Flexible Cable,Industrial Flexible Copper Stranded Cable 300V |

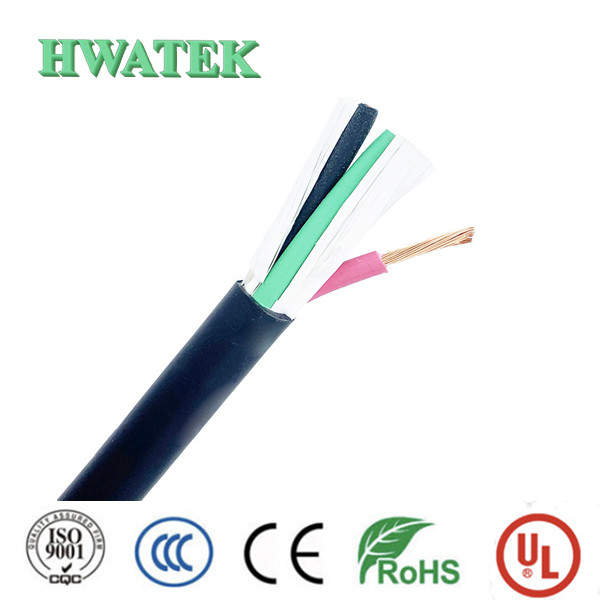

300/500V -40~80 ℃ PVC Jacket Bared copper stranded 10C×0.5mm2 11190101 Equivalent cable
Product Description
Application: Internal wring or external interconnection of electronic equipment.
Application standard: Outdoor
Product character:
Flame rated : IEC 60332-1-2
Tensile strength:≥10.3 MPa Elongation:≥100%
Aged condition:113±1℃×168H
Percent of original tensile strength: ≥70%
Percent of original elongation: ≥65%
UL758 -E258652-20060111-CertificateofCompliance-1....
ITEM | 10C×0.5mm2 | ||||
CONDUCTOR | Material | Bared copper stranded | |||
Size | 112/0.08mm | ||||
O.D.(Ref) | 0.98mm | ||||
INSULATION | Material | PVC | |||
Min.average thickness | 0.30mm | ||||
Min.thickness at any point | 0.24mm | ||||
O.D. | 1.70±0.10mm | ||||
CABLING | Material | Non-woven | |||
Filler | Optional | ||||
Assembly | 10C×0.5mm2 | ||||
JACKET | Material | PVC | |||
Min.average thickness | 0.76mm | ||||
Min.thickness at any point | 0.61mm | ||||
O.D. | 8.60±0.30mm |
Insulation:PVC
Conductor : Bared copper stranded
Construction
Insulation:1~9Black with white numbers 10.green/yellow
Jacket : per request
Jacket: PVC
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International: NOUL
RoHS,REACH Compliant,
Technical data
Rated voltage:300/500V
Rated Temperature: -40~80℃
Flame: IEC 60332-1-2
Voltage withstand test:AC 3.0kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible
PHYSICAL PROPERTIES | |||
Tensile strength:≥10.3MPa | |||
Elongation:≥100% | |||
Aged condition:113±1℃×168h | |||
Percent of original tensile strength≥70% | |||
Percent of original elongation≥65% | |||
Occasional flexing: 15 x cable diameter | |||
Fixed installation: 4 x cable diameter | |||
Flame retardant according to IEC 60332-1-2 |
