UL TC ER 4C X 16AWG Bare Copper Stranded Solar Power Cable 600V PVC Jacket 2216040 Cable

Certification
China HWATEK WIRES AND CABLE CO.,LTD. certification
China HWATEK WIRES AND CABLE CO.,LTD. certification
thank you very much for your quick response . Your professional cable solution helps me out , Cable quality is very good . It fits our connectors

—— Gonalze

Your products quality beyond my imagine, I highly appreciate your great support , Hope have better and deeper cooperation in future.

—— Bharath

I'm Online Chat Now

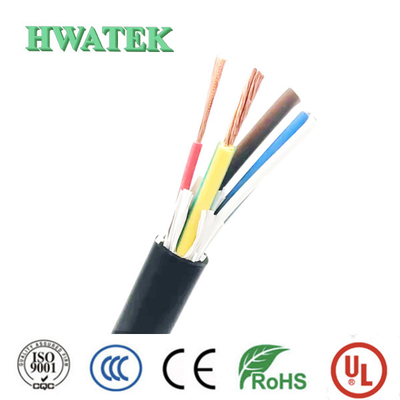

UL TC ER 4C X 16AWG Bare Copper Stranded Solar Power Cable 600V PVC Jacket 2216040 Cable

UL TC ER 4C X 16AWG Bare Copper Stranded Solar Power Cable 600V PVC Jacket  2216040 Cable
UL TC ER 4C X 16AWG Bare Copper Stranded Solar Power Cable 600V PVC Jacket  2216040 Cable

Large Image :  UL TC ER 4C X 16AWG Bare Copper Stranded Solar Power Cable 600V PVC Jacket 2216040 Cable

Product Details:
Place of Origin: China
Brand Name: Hwatek
Certification: RoHS, Reach
Model Number: UL TYPE
Payment & Shipping Terms:
Minimum Order Quantity: 1000m
Price: To be negotiated
Packaging Details: Packed in rolls or reels
Delivery Time: 3-4 Weeks
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 100km per day
Detailed Product Description
Conductor: Bare Copper Stranded Insulation: XLPE
Jacket: PVC(Oli&UV Resistance) Cable Shape: Round
Application: Industrial, Comsumer Electrics, Medical, Etc Packing: Packed In Reels
Volatge: 600V Temperature: 90℃
HWATEK: HT2304485
Highlight:

600V Bare Copper Solar Power Cable

,

Solar Power Type TC-ER Cable

,

Stranded Solar Power Cable

UL TC ER 4C X 16AWG Bare Copper Stranded Solar Power Cable 600V PVC Jacket 2216040 cable



Product Description

Application: Internal wring or external interconnection of electronic equipment.
Application standard: Outdoor

Product character:

Flame rated :FT2

Tensile strength:≥10.3 MPa    Elongation:≥100%

Aged condition:121±1℃×168h

Percent of original tensile strength: ≥70%

Percent of original elongation: ≥65%



UL758 -E258652-20060111-CertificateofCompliance-1....

Construction
Conductor Bare copper stranded
Cross section 16AWG
Construction 26/0.254mm
Strand Dia. 1.49mm
Insulation PVC
Nom.Thickness 0.38mm
Min.Thickness 0.33mm
Insulation Dia. 2.30±0.10mm
Insulation colour 1~3.black with number of 1~3 4.green/yellow
Covering Nylon
Nom.Thickness 0.12mm
Outer Dia. 2.60±0.15mm
Colour Natural
Assembly 4C×16AWG
Jacket PVC(Oli&UV resistance)
Nom.Thickness 1.14mm
Min.Thickness 0.91mm
Outer Dia. 8.80±0.30mm
Colour Black


Insulation:PVC
Conductor : Bare copper
Construction

Insulation: 1~3.black with number of 1~3 4.green/yellow

Jacket : per request

Jacket: PVC(Oli&UV resistance)

Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,

Standards
International:

RoHS,REACH Compliant,

Technical data E476298 (UL)
Rated voltage:600V
Rated Temperature:
90℃
Flame: FT2
Voltage withstand test:AC 2.0kV/1min

Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible



Electric Performance
Rated Temperature 90
Voltage rating 600V
Max.conductor DC resistance(20℃) 13.7Ω/km
Dielectric Strength AC 2.0kV/1min





UL TC ER 4C X 16AWG Bare Copper Stranded Solar Power Cable 600V PVC Jacket  2216040 Cable 0UL TC ER 4C X 16AWG Bare Copper Stranded Solar Power Cable 600V PVC Jacket  2216040 Cable 1



UL TC ER 4C X 16AWG Bare Copper Stranded Solar Power Cable 600V PVC Jacket  2216040 Cable 2
