HWATEK WIRES AND CABLE CO.,LTD.
|
Product Details:
Payment & Shipping Terms:
|
| Conductor: | Bared Copper Stranded | Insulation: | PVC |
|---|---|---|---|
| Jacket: | PVC | Cable Shape: | Round |
| Application: | Industrial, Comsumer Electrics, Medical, Etc | Packing: | Packed In Reels |
| Volatge: | 500V | Temperature: | '-40~80℃ |
| HWATEK: | HT2304525 | ||
| High Light: | 500V Bared Copper Stranded Cable,Copper Stranded Cable 2C×0.34mm2,Industrial Stranded Copper Wire |
||

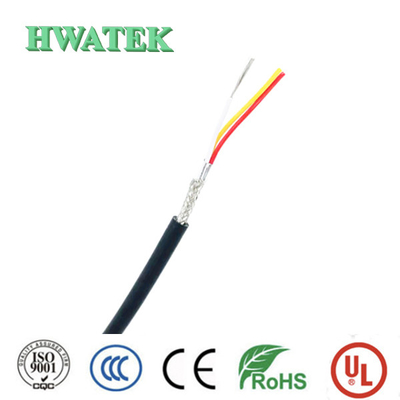

PVC Jacket Bared Copper Stranded 2C×0.34mm2 + AB 34502 Equivalent 500 V Cable
Product Description
Application: Internal wring or external interconnection of electronic equipment.
Application standard: Outdoor
Product character:
Flame rated : FT2
Tensile strength:≥10.3 MPa Elongation:≥100%
Aged condition:113±1℃×168H
Percent of original tensile strength: ≥70%
Percent of original elongation: ≥65%
UL758 -E258652-20060111-CertificateofCompliance-1....
| Construction | ||
| Conductor | Bare copper Stranded | |
| Cross section | 0.34mm2 | |
| Construction | 7/0.254mm | |
| Strand Dia.(Ref.) | 0.76mm | |
| Insulation | PVC | |
| Nom.Thickness | 0.30mm | |
| Min.Thickness | 0.24mm | |
| Insulation Dia. | 1.50±0.08mm | |
| Insulation colour | 1.white 2.brown | |
| Filler | Optional | |
| Material | Al-mylar | |
| Braid | Tinned copper,0.10mm,≥85% | |
| Assembly | 2C×0.34mm2+AB | |
| Jacket | PVC | |
| Nom.Thickness | 0.70mm | |
| Min.Thickness | 0.56mm | |
| O.D. | 4.90±0.20mm | |
| Colour | red | |
Insulation:PVC
Conductor : Bared copper stranded
Construction
Insulation:1.white 2.brown
Jacket : red
Jacket: PVC
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International:BOUL
RoHS,REACH Compliant,
Technical data
Rated voltage:500V
Rated Temperature: -40~80℃
Flame: FT2
Voltage withstand test:AC 2.0kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible
| Mechanical Performance | ||
| Jacket | ||
| Material | PVC | |
| Tensile strength | ≥10.3MPa | |
| Elongation | ≥100% | |
| Aged condition | 113±1℃×168h | |
| Percent of original tensile strength | ≥70% | |
| Percent of original elongation | ≥65% | |
