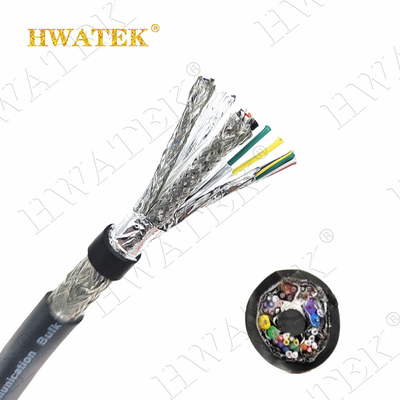

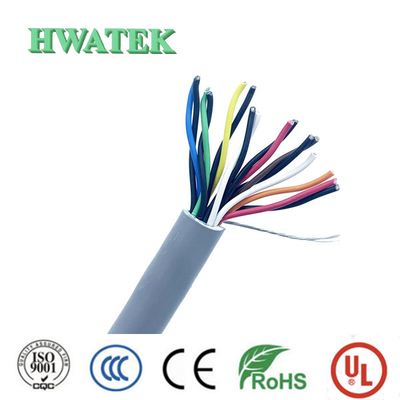

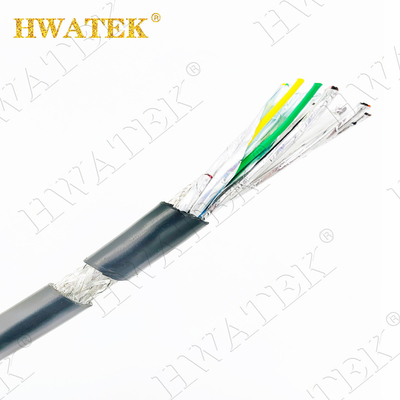

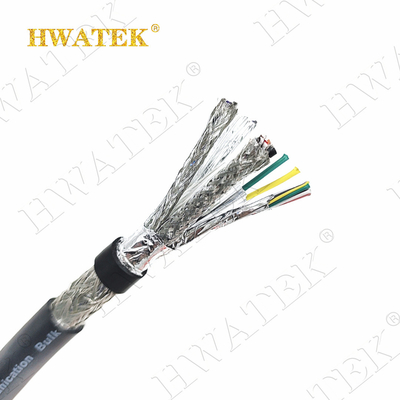

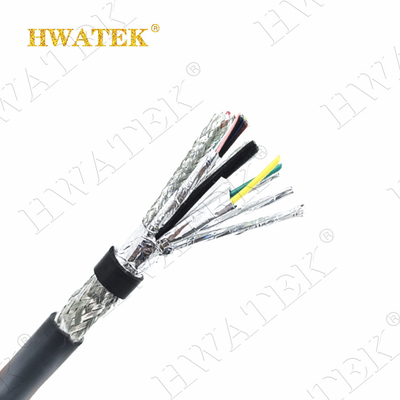

UL 20549 PUR Jacket Bared Copper Stranded 2P×0.18mm2+5C×0.5mm2 70388730 Equivalent Cable
Product Description
Application: Internal wring or external interconnection of electronic equipment.
Application standard: Outdoor
Product character:
Flame rated : FT2
Tensile strength:≥10.3 MPa Elongation:≥100%
Aged condition:113±1℃×168H
Percent of original tensile strength: ≥70%
Percent of original elongation: ≥65%
UL758 -E258652-20060111-CertificateofCompliance-1....
| Construction |
| |
A:2P×0.18mm2 |
B:5C×0.5mm2 |
| Material |
Bare copper stranded |
Bare copper stranded |
| Construction |
37/0.08mm |
64/0.10mm |
| Strand Dia. |
0.56mm |
0.92mm |
| Insulation |
PP |
| Nom.Thickness |
0.23mm |
0.23mm |
| Min.Thickness |
0.18mm |
0.18mm |
| Insulation Dia. |
1.10±0.10mm |
1.50±0.10mm |
| Twisted |
2.20mm |
/ |
| Insulation colour |
A1.white*brown A2.green*yellow |
B1.red B2.blue B3.violet
B4.gray B5.black |
| Filler |
Optional |
| Jacket |
PUR(Oil resistant and UV resistant) |
| Nom.Thickness |
0.76mm |
| Min.Thickness |
0.61mm |
| O.D. |
7.60±0.30mm |
| Colour |
Per request |
Insulation:PP
Conductor : Bared copper stranded
Construction
Insulation:A1.white*brown A2.green*yellow B1.red B2.blue B3.violet
B4.gray B5.black
Jacket: Per request
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International:UL20549
RoHS,REACH Compliant,
Technical data
Rated voltage:300V
Rated Temperature: 80℃
Flame: FT2
Voltage withstand test:AC 2.0kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible
| Mechanical Performance |
| |
Jacket |
| Material |
PUR |
| Tensile strength |
≥10.3MPa |
| Elongation |
≥100% |
| Aged condition |
113±1℃×168h |
| Percent of original tensile strength |
≥70% |
| Percent of original elongation |
≥65% |
