HWATEK WIRES AND CABLE CO.,LTD.
|
Product Details:
Payment & Shipping Terms:
|
| Conductor: | Bared Copper Stranded | Insulation: | HDPE |
|---|---|---|---|
| Jacket: | PVC(Oil Resistant ) | Cable Shape: | Round |
| Application: | Industrial, Comsumer Electrics, Medical, Etc | Packing: | Packed In Reels |
| Volatge: | 30V | Temperature: | 80℃ |
| HWATEK: | HT2304536 | ||
| High Light: | Oil Resistant Bared Copper Stranded Cable,PVC Jacket Bared Copper Stranded,HDPE Industrial Flexible Cable |
||

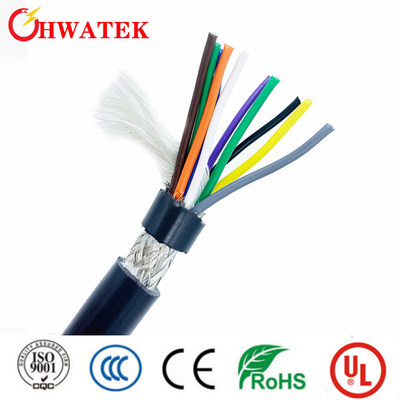

UL2725 PVC Jacket Oil resistance Bared Copper Stranded 10P×28AWG+ADB 70388736 Equivalent Cable
Product Description
Application: Internal wring or external interconnection of electronic equipment.
Application standard: Outdoor
Product character:
Flame rated :FT2
Tensile strength:≥10.3 MPa Elongation:≥100%
Aged condition:113±1℃×168H
Percent of original tensile strength: ≥70%
Percent of original elongation: ≥65%
UL758 -E258652-20060111-CertificateofCompliance-1....
| Construction | ||
| A:2P×28AWG | B:8P×28AWG | |
| Material | Bare copper stranded | Bare copper stranded |
| Construction | 7/0.127mm | 7/0.127mm |
| Strand Dia. | 0.38mm | 0.38mm |
| Insulation | HDPE | |
| Nom.Thickness | 0.10mm | 0.15mm |
| Insulation Dia. | 0.65±0.10mm | 0.70±0.10mm |
| Twisted | 1.30mm | 1.40mm |
| Insulation colour | A1.white*blue A2.white*yellow |
A3.white*green A4.white*red A5.white*violet A6.brown*blue A7.brown*yellow A8.brown*green A9.brown*red A10.brown*violet |
| Filler | Optional | |
| Material | Al-mylar(face out) | |
| Drain wire | Tinned copper stranded | |
| Size | 24/0.10mm | |
| Assembly | 10P×28AWG+AD | |
| Braid | Tinned copper | |
| Size | 0.10mm,≥80% | |
| Jacket | PVC(Oil resistant ) | |
| Nom.Thickness | 0.50mm | |
| Min.Thickness | 0.40mm | |
| O.D. | 6.00±0.30mm | |
| Colour | Per request | |
Insulation:HDPE
Conductor : Bared copper stranded
Construction
Insulation:A1.white*blue A2.white*yellow A3.white*green A4.white*red
A5.white*violet A6.brown*blue
A7.brown*yellow A8.brown*green
A9.brown*red A10.brown*violet
Jacket: Per request
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International:UL2725
RoHS,REACH Compliant,
Technical data
Rated voltage:30V
Rated Temperature: 80℃
Flame: FT2
Voltage withstand test:AC 0.5kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible
| Electric Performance | |
| Rated Temperature | 80℃ |
| Voltage rating | 30V |
| Max.conductor DC resistance(20℃) | A&B:223Ω/km |
| Dielectric Strength AC | 0.5kV/1min |
| Nom.Impedance: | 90Ω(1MHz) |
| Nom.Capacitance: | 65 pF/m |
