HWATEK WIRES AND CABLE CO.,LTD.
|
Product Details:
Payment & Shipping Terms:
|
| Conductor: | Bared Copper Stranded | Insulation: | PVC |
|---|---|---|---|
| Jacket: | PVC | Cable Shape: | Round |
| Application: | Industrial, Comsumer Electrics, Medical, Etc | Packing: | Packed In Reels |
| Volatge: | 600V | Temperature: | -40~90℃ |
| HWATEK: | HT2306051 | ||
| High Light: | Bare Copper Stranded Industrial 600V Cable,TC-ER Energy Cable,PVC Jacket 600 Volt Cable |
||

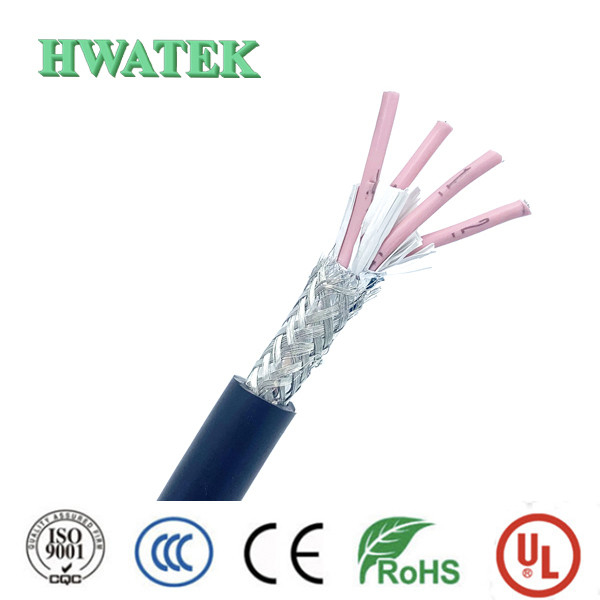

E476298 ( UL ) Bare Copper Stranded TC-ER THHN 5C/2AWG 90℃ PVC Jacket 600V Cable
Product Description
Application: Internal wring or external interconnection of electronic equipment.
Application standard: Outdoor
Product character:
Flame rated : ft1
Tensile strength:≥10.3MPa Elongation:≥100%
Aged condition:121±1℃×168h
Percent of original tensile strength: ≥70%
Percent of original elongation: ≥65%
UL758 -E258652-20060111-CertificateofCompliance-1....
| Construction | ||
| Conductor | Bare copper stranded | |
| Cross section | 2AWG | |
| Construction | 665/0.254mm | |
| Strand Dia.(Ref) | 8.10mm | |
| Insulation | PVC | |
| Nom.Thickness | 1.02mm | |
| Min.Thickness | 0.91mm | |
| Insulation Dia. | 10.50±0.40mm | |
| Insulation colour | 1.red 2.black 3.white 4.blue 5.yellow/green | |
| Material | Nylon | |
| Nom.Thickness | 0.15mm | |
| Min.Thickness | 0.12mm | |
| Covering Dia. | 10.90±0.40mm | |
| Material | AL-mylar | |
| Assembly | 5C×2AWG+A | |
| Jacket | PVC | |
| Nom.Thickness | 2.03mm | |
| Min.Thickness | 1.63mm | |
| Jacket Dia. | 34.70±1.50mm | |
| Colour | black | |
Insulation:PVC
Conductor : Bared copper stranded
Construction
Insualtion:1.red 2.black 3.white 4.blue 5.yellow/green
Jacket: Black
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International:THHN
RoHS,REACH Compliant,
Technical data
Rated voltage:600V
Rated Temperature: -40~90℃
Flame: FT1
Voltage withstand test:AC 2.0kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible
| Electric Performance | |
| Rated Temperature | -40~90℃ |
| Operating temperature | 90℃ |
| Voltage rating | 600V |
| Max.conductor DC resistance(20℃) | 0.5335Ω/km |
| Voltage withstand test:AC | 2.0kV/1min |
