HWATEK WIRES AND CABLE CO.,LTD.
|
Product Details:
Payment & Shipping Terms:
|
| Conductor: | Tinned Copper Stranded | Insulation: | PVC |
|---|---|---|---|
| Jacket: | PVC | Cable Shape: | Round |
| Application: | Industrial, Comsumer Electrics, Medical, Etc | Packing: | Packed In Reels |
| Volatge: | 30V | Temperature: | 80℃ |
| HWATEK: | HT2306112 | ||
| High Light: | Tinned Copper Stranded Flexible Cable 28AWG,30V PVC Jacket Cable,Industrial Tinned Copper Stranded Cable |
||

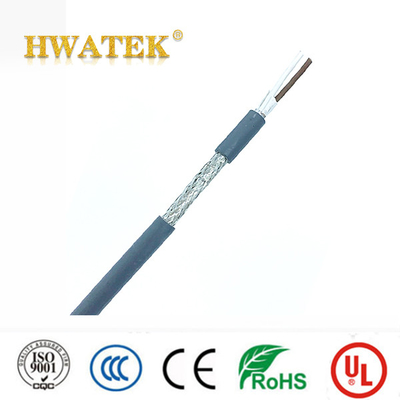

UL2725 Tinned Copper Stranded 2 coax × 28AWG + 2C × 28AWG 80℃ PVC Jacket 30V Cable
Product Description
Application: Internal wring or external interconnection of electronic equipment.
Application standard: Outdoor
Product character:
Flame rated : FT1
Tensile strength:≥10.3MPa Elongation:≥100%
Aged condition:113±1℃×168h
Percent of original tensile strength: ≥70%
Percent of original elongation: ≥65%
UL758 -E258652-20060111-CertificateofCompliance-1....
| Construction | ||
| Conductor | Tinned copper stranded | |
| Cross section | A:28AWG | B:28AWG |
| Construction | 70.127mm | 7/0.127mm |
| Strand Dia.(Ref) | 0.38mm | 0.38mm |
| Insulation | PVC | PVC |
| Nom.Thickness | 0.23mm | 0.23mm |
| Min.Thickness | 0.18mm | 0.18mm |
| Insulation Dia. | 0.90±0.08mm | 0.90±0.08mm |
| Insulation colour | A1.red A2.black | B1.yellow B2.brown |
| Spiral | Tinned copper,0.08mm,90%min | / |
| Material | Paper tape,≥25% | / |
| Filler | Optional | |
| Drain | Tinned copper stranded,7/0.127mm | |
| Material | AL-mylar,≥25% | |
| Assembly | 2coax×28AWG+2C×28AWG+DA | |
| Jacket | PVC | |
| Nom.Thickness | 0.76mm | |
| Min.Thickness | 0.61mm | |
| Outer Dia. | 4.50±0.30mm | |
| Colour | per request | |
Insulation:PVC
Conductor : Tinned copper stranded
Construction
Insualtion:A1.red A2.black B1.yellow B2.brown
Jacket: Black
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International:UL2725
RoHS,REACH Compliant,
Technical data
Rated voltage:30V
Rated Temperature: 80℃
Flame: FT1
Voltage withstand test:AC 0.5 kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible
| Electric Performance | |
| Rated Temperature | 80℃ |
| Voltage rating | 30V |
| Max.conductor DC resistance(20℃) | A&B:239Ω/km |
| Voltage withstand test:AC | 0.5kV/1min |
