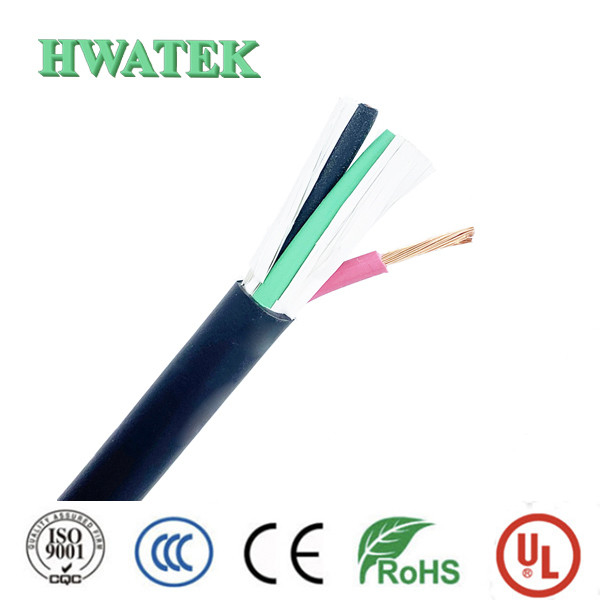

UL20549 3 Cond 22AWG Unshielded Tinned Copper Stranded Cable PVC Insulation PUE Jacket
Product Details
3 Cond Tinned Copper Stranded Cable
,Unshielded Tinned Copper Stranded Cable
,PUE Jacket Industrial Flexible Cable
Cable Unshielded 3 Cond 22AWG PVC Insulation PUE Jacket 300V 80℃ UL20549 Tinned copper stranded cable
Product Description
Application: Internal wring or external interconnection of electronic equipment.
Application standard: Outdoor
Product character:
Flame rated : FT2
Rated Temperature -20~80℃
Voltage rating 300V
UL758 -E258652-20060111-CertificateofCompliance-1....
| ITEM | 3C×22AWG(19/0.16T)+W | ||||
| CONDUCTOR | Material | Tinned copper stranded | |||
| Size | 19/0.16mm | ||||
| O.D.(Ref) | 0.80mm | ||||
| INSULATION | Material | PVC | |||
| Min.average thickness | 0.23mm | ||||
| Min.thickness at any point | 0.18mm | ||||
| O.D. | 1.30±0.08mm | ||||
| Filler | Optonal | ||||
| CABLING | Material | Non-woven | |||
| Assembly | 3C×22AWG(19/0.16T)+W | ||||
| JACKET | Material | TPU | |||
| Min.average thickness | 0.76mm | ||||
| Min.thickness at any point | 0.61mm | ||||
| O.D. | 4.90±0.20mm | ||||
Insulation:SR
Conductor : Tinned copper stranded
Construction
Insulation : 1.blue 2.white 3.black
Jacket: Black
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International:NOUL
RoHS,REACH Compliant,
Technical data
Rated voltage:300V
Rated Temperature: -20~80℃
Flame: FT2
Voltage withstand test:AC 2.0kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible
| ELECTRICAL CHARACTERISTICS | |
| Rated voltage:300V | |
| Rated temperature:-20~80℃ | |
| Max. DC conductor resistance(20℃):59.4Ω/km | |
| Voltage withstand test:AC 2.0kV/1min |
