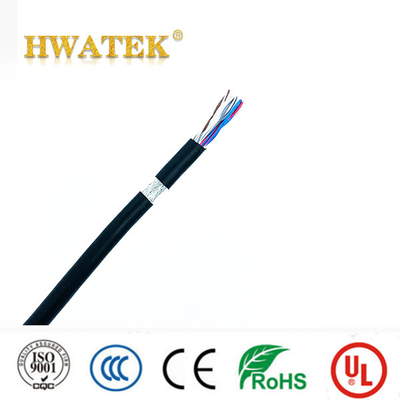

HDPE Insulation FRPE Jacket Tinned Copper Shielded Cable 300V UL21307 2 Pair 26AWG
Product Details
FRPE Jacket Shielded Cable
,HDPE Insulation Tinned Copper Cable
,2 Pair Shielded Cable
Cable shielded 2 pair 26AWG HDPE Insulation FRPE Jacket 300V 80℃ UL21307 Tinned copper stranded cable
Product Description
Application: Internal wring or external interconnection of electronic equipment.
Application standard: Outdoor
Product character:
Flame rated : VW-1
Rated Temperature 80℃
Voltage rating 300V
UL758 -E258652-20060111-CertificateofCompliance-1....
| Construction | ||
| Conductor | Tinned copper stranded | |
| Cross section | 26AWG | |
| Construction | 7/0.16mm | |
| Strand Dia. | 0.48mm | |
| Insulation | PVC | |
| Nom.Thickness | 0.18mm | |
| Insulation | HDPE | |
| Nom.Thickness | 0.23mm | |
| Min.Thickness | 0.20mm | |
| Insulation Dia. | 1.00±0.08mm | |
| Insulation colour | black,brown,,red,orange | |
| Filler | Optional | |
| Material | Al-mylar (face out) | |
| Drain | Tinned copper, 7/0.16mm | |
| Braid | Tinned copper | |
| Size | 0.10mm, ≥85% | |
| Assembly | 4C×26AWG+ADB | |
| Jacket | FRPE | |
| Nom.Thickness | 0.40mm | |
| Min.Thickness | 0.33mm | |
| Outer Dia. | 4.00±0.20mm | |
| Colour | Gray | |
Insulation:HDPE
Conductor : Tinned copper stranded
Construction
Insulation : black,brown,,red,orange
Jacket: Gray
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International:UL21307
RoHS,REACH Compliant,
Technical data
Rated voltage:300V
Rated Temperature: 80℃
Flame: VW-1
Voltage withstand test:AC 2.0kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible
| ELECTRICAL CHARACTERISTICS | |
| Rated voltage:300V | |
| Rated temperature:80℃ | |
| Max. DC conductor resistance(20℃):150Ω/km | |
| Voltage withstand test:AC 2.0kV/1min |
