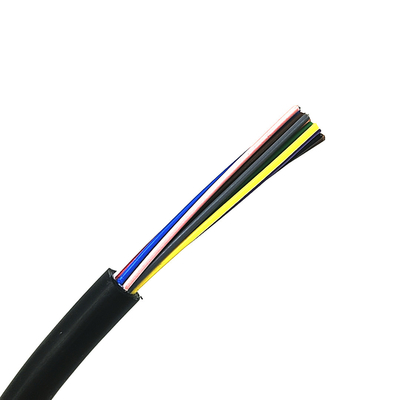

PVC Insulation Jacket 30V UL20276 Tinned Copper Stranded Cable Shielded 10 Pair 24 AWG

PVC Insulation Jacket 30V UL20276 Tinned Copper Stranded Cable Shielded 10 Pair 24 AWG
PVC Insulation Jacket 30V UL20276 Tinned Copper Stranded Cable Shielded 10 Pair 24 AWG

Large Image :  PVC Insulation Jacket 30V UL20276 Tinned Copper Stranded Cable Shielded 10 Pair 24 AWG

Product Details:
Place of Origin: China
Brand Name: Hwatek
Certification: RoHS, Reach
Model Number: UL20276
Payment & Shipping Terms:
Minimum Order Quantity: 500m
Price: To be negotiated
Packaging Details: Packed in rolls or reels
Delivery Time: 3-4 Weeks
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 100km per day
Detailed Product Description
Conductor: Tinned Copper Stranded Insulation: PVC
Jacket: PVC Cable Shape: Round
Application: Industrial, Comsumer Electrics, Medical, Etc Packing: Packed In Reels
Volatge: 30V Temperature: 80℃
HWATEK: HT2306176
High Light:

24 AWG Tinned Copper Cable

,

PVC Insulation Jacket Stranded Cable

,

Tinned Copper Stranded Cable



Cable shielded 10 pair 24 AWG PVC Insulation PVC Jacket 30V 80℃ UL20276 Tinned copper stranded cable



Product Description

Application: Internal wring or external interconnection of electronic equipment.
Application standard: Outdoor

Product character:

Flame rated : FT2

Rated Temperature  80℃

Voltage rating 30V



UL758 -E258652-20060111-CertificateofCompliance-1....

Construction
Conductor Tinned Copper Stranded
Cross section 24AWG
Construction 7/0.20mm
Strand Dia. 0.60mm
Insulation PVC
Nom.Thickness 0.23mm
  0.18mm
Insulation Dia. 1.10±0.08mm
Insulation colour see table
Twisted 2.20mm
Filler Optional
Drain Tinned Copper Stranded
Size 7/0.20mm
Material AL-mylar(foil face out),≥25%
Assembly 10P×24AWG+DA
Jacket PVC
Nom.Thickness 0.51mm
Min.Thickness 0.43mm
Outer Dia. 8.20±0.30mm
Colour Per request


Insulation:PVC
Conductor : Tinned copper stranded
Construction

Insulation :

Color table
1 Black & Red
2 Black & White
3 Black & Green
4 Black & Blue
5 Black & Yellow
6 Black & Brown
7 Black & Orange
8 Red & White
9 Red & Green
10 Red & Blue

Jacket: Per request

Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,

Standards
International:
UL20276
RoHS,REACH Compliant,

Technical data
Rated voltage:
30V
Rated Temperature: 80℃
Flame:  FT2
Voltage withstand test:AC 2.0kV/1min

Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible



ELECTRICAL CHARACTERISTICS
Rated voltage:30V
Rated temperature:80
Max. DC conductor resistance(20℃):94.2Ω/km
Voltage withstand test:AC 0.5kV/1min

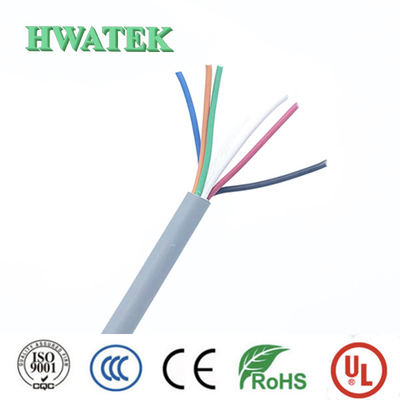

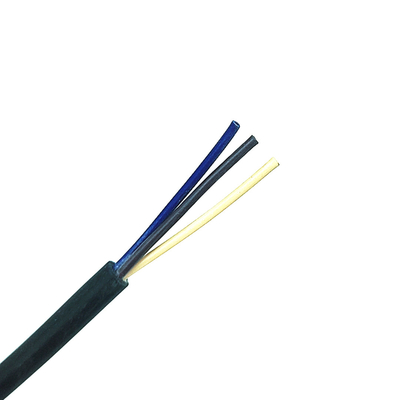

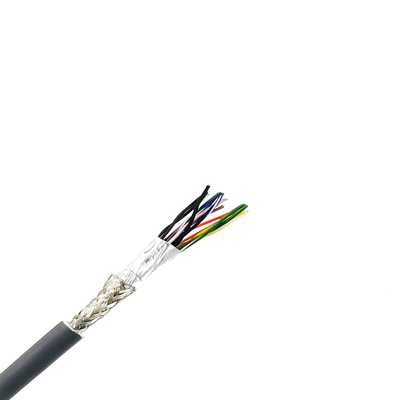

PVC Insulation Jacket 30V UL20276 Tinned Copper Stranded Cable Shielded 10 Pair 24 AWG 0

PVC Insulation Jacket 30V UL20276 Tinned Copper Stranded Cable Shielded 10 Pair 24 AWG 1



PVC Insulation Jacket 30V UL20276 Tinned Copper Stranded Cable Shielded 10 Pair 24 AWG 2





Company Profiles

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.



Certificates
PVC Insulation Jacket 30V UL20276 Tinned Copper Stranded Cable Shielded 10 Pair 24 AWG 3

Production Progress

PVC Insulation Jacket 30V UL20276 Tinned Copper Stranded Cable Shielded 10 Pair 24 AWG 4

Shipping
PVC Insulation Jacket 30V UL20276 Tinned Copper Stranded Cable Shielded 10 Pair 24 AWG 5

FAQ
1. Q:What can you supply?
A: We do produce consumer electronics wires, hock up wires, industrial cables, robot cables, ev charging cables, new/green energy cables.
2. Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
3. Q:Can we get samples before ordering?
A: Yes, we are willing to arrange samples for you.
4. Q: What's your lead time?
A: Normally we can finish you orders in 2-3 weeks, and 5-6 weeks in peak season.
5. Q. How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final Inspection before shipment.
