UL3133 16mm2 Bare Copper Stranded Silicone 600V 150℃ EV Battery Motorcycles Charging Cable
Product Details
UL3133 ev charging cable
,16mm2 ev charging cable
,600V ev cables

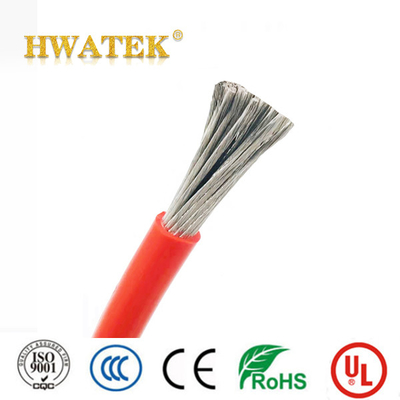

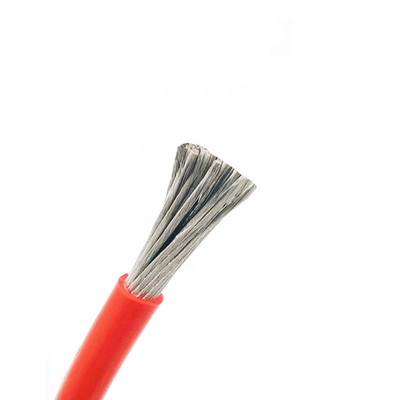

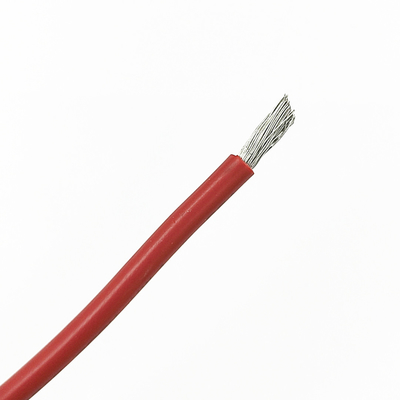

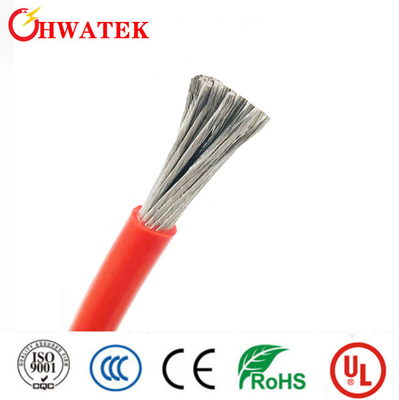

UL3133 16 mm2 Bared Copper Stranded Silicone 600V 150℃ EV battery motorcycles charging cable
Product Description
Application: Internal wring or external interconnection of electronic equipment.
Application standard: Outdoor
Product character:
Flame rated : FT2
Rated Temperature 150℃
Voltage rating 600V
UL758 -E258652-20060111-CertificateofCompliance-1....
| Construction | |
| Conductor | Bared Copper Stranded |
| Cross section | 16mm2 |
| Construction | 3200/0.08mm |
| Strand Dia.(Ref) | 5.80mm |
| Insulation | SR |
| Nom.Thickness | 0.76mm |
| Min.Thickness | 0.69mm |
| Insulation Dia. | 7.60±0.30mm |
| Insulation colour | Per request |
Insulation:SR
Conductor : Bared copper stranded
Jacket: Per request
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International:UL3133
RoHS,REACH Compliant,
Technical data
Rated voltage:600V
Rated Temperature: 150℃
Flame: FT2
Voltage withstand test:AC 2.0kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible
| ELECTRICAL CHARACTERISTICS | |
| Rated voltage:3600V | |
| Rated temperature:150℃ | |
| Max. DC conductor resistance(20℃):1.348Ω/km | |
| Voltage withstand test:AC 2.0kV/1min |
Company Profiles
Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
Certificates
Production Progress
Shipping
FAQ
1. Q:What can you supply?
A: We do produce consumer electronics wires, hock up wires, industrial cables, robot cables, ev charging cables, new/green energy cables.
2. Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
3. Q:Can we get samples before ordering?
A: Yes, we are willing to arrange samples for you.
4. Q: What's your lead time?
A: Normally we can finish you orders in 2-3 weeks, and 5-6 weeks in peak season.
5. Q. How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final Inspection before shipment.
