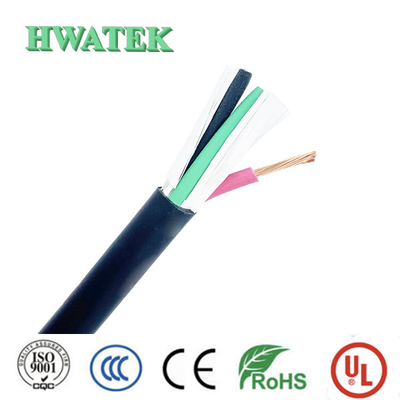

EVT EV Charging Cable 2C X 10AWG + 1C X 10AWG +1C X 18AWG 600V UL62 Cable
Product Details
1C 18AWG EV Charging Cable
,2C 10AWG EV Charging Cable
,600V UL62 EV Charging Cable
EVT EV Charging Cable 2C X 10AWG + 1C X 10AWG +1C X 18AWG 600V UL62 Cable
Product Description
| ITEM | A:2C×10AWG | B:1C×10AWG | C:1C×18AWG | ||||
| CONDUCTOR | Material | Bared Copper Stranded | |||||
| Size | 105/0.254±0.008mm | 105/0.254±0.008mm | 16/0.254±0.008mm | ||||
| O.D.(Ref) | 3.20mm | 3.20mm | 1.18mm | ||||
| INSULATION | Material | PVC | PVC | PVC | |||
| Min.average thickness | 1.14mm | 1.14mm | 0.76mm | ||||
| Min.thickness at any point | 1.02mm | 1.02mm | 0.68mm | ||||
| O.D. | 5.70±0.20mm | 5.70±0.20mm | 2.80±0.10mm | ||||
| CABLING | Material | Non-woven | |||||
| Filler | Optional | ||||||
| Assembly | 2Cx10AWG+1Cx10AWG+1Cx18AWG+W | ||||||
| JACKET | Material | PVC | |||||
| Min.average thickness | 2.03mm | ||||||
| Min.thickness at any point | 1.62mm | ||||||
| O.D. | 16.80±0.60mm | ||||||
Conductor Bare copper stranded
Cross section 10AWG 10AWG, 18AWG Tensile strength ≥10.3MPa
Construction 2Cx10AWG+1Cx10AWG+1Cx18AWG+W
Elongation ≥100%
Strand Dia.(Ref.) 5.70±0.20mm 2.80±0.10mm
Aged condition 136±1℃×168h
Insulation PVC
Nom.Thickness 1.14mm 0.76mm
Min.Thickness 1.02mm 0.68mm
Insulation Dia. 5.70±0.20mm 2.80±0.10mm
Insulation colour
A1.blue, A2.red,B1.green/yellow(single strip)
C1.red
Assembly 2Cx10AWG+1Cx10AWG+1Cx18AWG+W
Jacket PVC
Reference standard:UL62
Nom.Thickness 2.03mm
Min.Thickness 1.62mm
Outer Dia. 16.80±0.60mm
Colour per request
| ELECTRICAL CHARACTERISTICS | |
| Rated voltage:600V | |
| Rated temperature:-40~105℃ | |
| Rated current:25Amps | |
| Max. DC conductor resistance(20℃): | |
| A&B:3.51Ω/km B:22.4Ω/km | |
| Voltage withstand test:AC 3.0kV/min |
Company Profiles
Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
Certificates
Production Progress
Shipping
FAQ
1. Q:What can you supply?
A: We do produce consumer electronics wires, hock up wires, industrial cables, robot cables, ev charging cables, new/green energy cables.
2. Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
3. Q:Can we get samples before ordering?
A: Yes, we are willing to arrange samples for you.
4. Q: What's your lead time?
A: Normally we can finish you orders in 2-3 weeks, and 5-6 weeks in peak season.
5. Q. How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final Inspection before shipment.
