UL 20234 80 ℃ 600V Bare copper stranded TPE insulation TPU Jacket 4C × 4mm2 Halogen-free UV resistance Cable

Certification
China HWATEK WIRES AND CABLE CO.,LTD. certification
China HWATEK WIRES AND CABLE CO.,LTD. certification
thank you very much for your quick response . Your professional cable solution helps me out , Cable quality is very good . It fits our connectors

—— Gonalze

Your products quality beyond my imagine, I highly appreciate your great support , Hope have better and deeper cooperation in future.

—— Bharath

I'm Online Chat Now

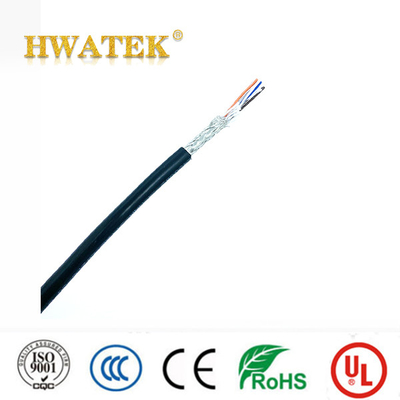

UL 20234 80 ℃ 600V Bare copper stranded TPE insulation TPU Jacket 4C × 4mm2 Halogen-free UV resistance Cable

UL 20234 80 ℃ 600V Bare copper stranded TPE insulation TPU Jacket 4C × 4mm2 Halogen-free UV resistance Cable
UL 20234 80 ℃ 600V Bare copper stranded TPE insulation TPU Jacket 4C × 4mm2 Halogen-free UV resistance Cable

Large Image :  UL 20234 80 ℃ 600V Bare copper stranded TPE insulation TPU Jacket 4C × 4mm2 Halogen-free UV resistance Cable

Product Details:
Place of Origin: China
Brand Name: Hwatek
Certification: UL20234
Model Number: UL20234
Payment & Shipping Terms:
Minimum Order Quantity: 1000m
Price: To be negotiated
Packaging Details: Packed in reels
Delivery Time: 4-6 Weeks
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 100KM per month
Detailed Product Description
Conductor: Bare Copper Insulation: TPE
Jacket: TPU Cable Shape: Round
Application: Industrial, Comsumer Electrics, Medical, EV Charging, Green Energy Etc Packing: Packed In Reels
Volatge: 600V Temperature: -40~80℃
PN: HT2401095

UL 20234 80 ℃ 600V Bare copper stranded TPE insulation TPU Jacket 4C × 4mm2 Halogen-free UV resistance Cable

Product Description

Construction
Conductor Bare copper stranded
Cross section 4mm2
Construction 315/0.127mm
Strand Dia. 2.80mm
Insulation TPE
Nom.Thickness 0.51mm
Min.Thickness 0.46mm
Insulation Dia. 4.00±0.20mm
Insulation colour 1~2.red with number of 1~2
3~4.black with number of 1~2
Filler Optional
Material Non-woven
Assembly 4C×4mm2+W
Jacket TPU
Nom.Thickness 1.14mm
Min.Thickness 0.91mm
Outer Dia. 13.70±0.40mm
Colour Per request
UL 20234 80 ℃ 600V Bare copper stranded TPE insulation TPU Jacket 4C × 4mm2 Halogen-free UV resistance Cable 0

Conductor Bare copper stranded
Cross section 4MM2  Tensile strength ≥10.3MPa
Construction
4C×4mm2+W
Elongation ≥100%
Strand Dia.(Ref.)
2.80mm
Aged condition 113±1℃×168h
Insulation TPE
Nom.Thickness
0.51mm
Min.Thickness 0.46mm
Insulation Dia. 4.00±0.20mm
Insulation colour
1~2.red with number of 1~2
3~4.black with number of 1~2
Assembly  AWM20234 4C×4mm2+W
Jacket TPU
Reference standard:UL20234
Nom.Thickness 1.14mm
Min.Thickness 0.91mm
Outer Dia.
13.70±0.40mm
Colour per request

UL758-E258652-20060111A-CertificateofCompliance(2)...



ELECTRICAL CHARACTERISTICS
Rated voltage:600V
Rated temperature:-40~80
Flame test:IEC 60332-1-2
Max. DC conductor resistance(20):
5.43Ω/km
Voltage withstand test:AC 4.0kV/min



UL 20234 80 ℃ 600V Bare copper stranded TPE insulation TPU Jacket 4C × 4mm2 Halogen-free UV resistance Cable 1UL 20234 80 ℃ 600V Bare copper stranded TPE insulation TPU Jacket 4C × 4mm2 Halogen-free UV resistance Cable 2



Company Profiles
Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.



Certificates
UL 20234 80 ℃ 600V Bare copper stranded TPE insulation TPU Jacket 4C × 4mm2 Halogen-free UV resistance Cable 3

Production Progress

UL 20234 80 ℃ 600V Bare copper stranded TPE insulation TPU Jacket 4C × 4mm2 Halogen-free UV resistance Cable 4

Shipping
UL 20234 80 ℃ 600V Bare copper stranded TPE insulation TPU Jacket 4C × 4mm2 Halogen-free UV resistance Cable 5

FAQ
1. Q:What can you supply?
A: We do produce consumer electronics wires, hock up wires, industrial cables, robot cables, ev charging cables, new/green energy cables.
2. Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
3. Q:Can we get samples before ordering?
A:
Yes, we are willing to arrange samples for you.
4. Q: What's your lead time?
A: Normally we can finish you orders in 2-3 weeks, and 5-6 weeks in peak season.
5. Q. How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final Inspection before shipment.
