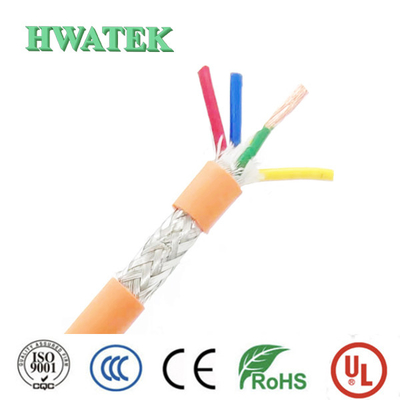

UL2464 TYPE PVC Jacket Bared Copper Stranded Cable 4C × 2.5 mm2 300V 80 ℃ FT1 Cable
Product Details
4C × 2.5 mm2 copper stranded cable
,300V copper stranded cable
,copper stranded cable 300V
UL2464 TYPE PVC Jacket Bared Copper Stranded Cable 4C × 2.5 mm2 300V 80 ℃ FT1 Cable
Product Description
Application: Internal wring or external interconnection of electronic equipment.
Application standard: Outdoor
Product character:
Flame rated : FT1
Tensile strength:≥10.3MPa Elongation:≥100%
Aged condition:113±1℃×168H
Percent of original tensile strength: ≥70%
Percent of original elongation: ≥65%
UL758 -E258652-20060111-CertificateofCompliance-1....
| ITEM | 4C×2.5mm2(49/0.254B)+AB | ||||
| CONDUCTOR | Material | Bared copper stranded | |||
| Size | 49/0.254±0.008mm | ||||
| O.D.(Ref) | 2.05mm | ||||
| INSULATION | Material | PVC | |||
| Min.average thickness | 0.38mm | ||||
| Min.thickness at any point | 0.33mm | ||||
| O.D. | 3.00±0.10mm | ||||
| CABLING | Filler | Optional | |||
| Material | Al-mylar(Foil face outwards) | ||||
| BRAID | Material | Tinned copper | |||
| Coverage | 0.10±0.008mm (Coverage:80%) | ||||
| JACKET | Material | PVC | |||
| Min.average thickness | 0.76mm | ||||
| Min.thickness at any point | 0.61mm | ||||
| O.D. | 9.80±0.20mm | ||||
Insulation:PVC
Conductor : Bared copper stranded
Construction:
Jacket : per request
Jacket: PVC
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International: UL2464
RoHS,REACH Compliant,
Technical data
Rated voltage:300V
Rated Temperature: 80℃
Flame: FT1
Voltage withstand test:AC 2.0 kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible
| ELECTRICAL CHARACTERISTICS | |
| Rated voltage:300V | |
| Rated temperature:80℃ | |
| Max. DC conductor resistance(20℃):8.62Ω/km | |
| Voltage withstand test:AC 2.0kV/1min |
