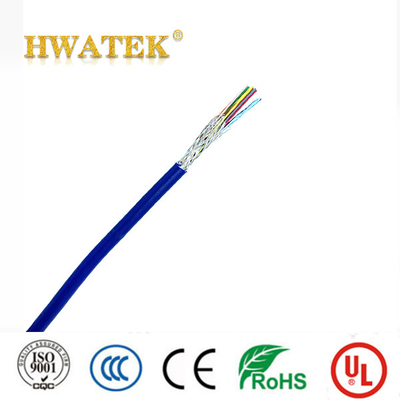

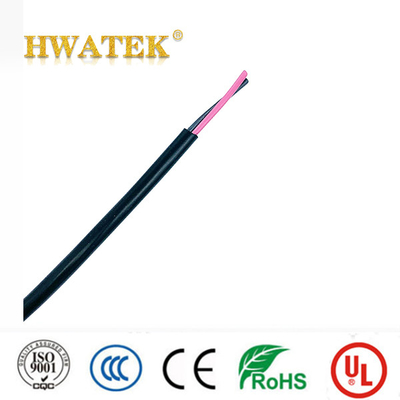

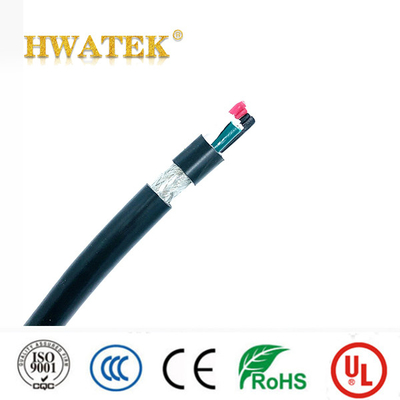

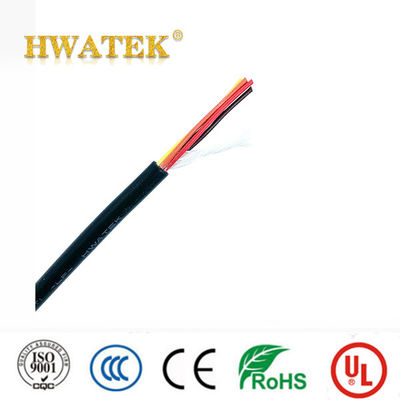

UL2586 TYPE PVC Oil resistance Bare Copper Stranded 4G × 2.50 mm2 105℃ 1000V Cable

UL2586 TYPE PVC Oil resistance Bare Copper Stranded 4G × 2.50 mm2  105℃ 1000V Cable
UL2586 TYPE PVC Oil resistance Bare Copper Stranded 4G × 2.50 mm2  105℃ 1000V Cable

Large Image :  UL2586 TYPE PVC Oil resistance Bare Copper Stranded 4G × 2.50 mm2 105℃ 1000V Cable

Product Details:
Place of Origin: China
Brand Name: Hwatek
Certification: RoHS, Reach
Model Number: UL2586
Payment & Shipping Terms:
Minimum Order Quantity: 1000m
Price: To be negotiated
Packaging Details: Packed in rolls or reels
Delivery Time: 3-4 Weeks
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 100km per day
Detailed Product Description
Conductor: Tinned Copper Stranded Insulation: PVC
Jacket: PVC(Oil Resistance) Cable Shape: Round
Application: Industrial, Comsumer Electrics, Medical, Etc Packing: Packed In Reels
Volatge: 1000V Temperature: -40~105℃
HWATEK: HT2401942
High Light:

Oil resistance Bare Copper Stranded Cable

,

105℃ Bare Copper Stranded Cable

,

1000V Bare Copper Stranded Cable

UL2586 TYPE PVC ( Oil resistance ) Bare Copper Stranded 4G × 2.50 mm2 105℃ 1000V Cable

Product Description

Application: Internal wring or external interconnection of electronic equipment.
Application standard: Outdoor

Product character:

Flame rated : VW-1

Tensile strength:≥10.3MPa    Elongation:≥100%

Aged condition:136±1℃×168H

Percent of original tensile strength: ≥70%

Percent of original elongation: ≥65%



UL758 -E258652-20060111-CertificateofCompliance-1....



Construction
Conductor Bare copper stranded
Cross section 2.50mm2
Construction 140/0.15mm
Strand Dia. 2.05mm
Insulation PVC
Nom.Thickness 0.76mm
Min.Thickness 0.69mm
Insulation Dia. 3.80±0.20mm
Insulation colour 1~3.black with number 1~3
4.yellow/green
Filler Optional
Material Non-woven
Assembly 4C×2.50mm2+W
Jacket PVC(Oil resistance)
Nom.Thickness 0.76mm
Min.Thickness 0.61mm
O.D. 11.50±0.40mm
Colour Black







Insulation:PVC
Conductor : Bared copper stranded
Construction:

Jacket : per request

Jacket: PVC

Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,

Standards
International:
UL2586
RoHS,REACH Compliant,

Technical data
Rated voltage:
1000V
Rated Temperature:  -40~105℃
Flame:  VW-1
Voltage withstand test:AC 3.0 kV/1min

Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible



Electric Performance
Rated Temperature -40~105
Voltage rating 1000V
Max.conductor DC resistance(20℃) 8.62Ω/km
Dielectric Strength AC 3.0kV/1min
Min. bend radius fixed 4*OD moving 8*OD

UL2586 TYPE PVC Oil resistance Bare Copper Stranded 4G × 2.50 mm2  105℃ 1000V Cable 0UL2586 TYPE PVC Oil resistance Bare Copper Stranded 4G × 2.50 mm2  105℃ 1000V Cable 1UL2586 TYPE PVC Oil resistance Bare Copper Stranded 4G × 2.50 mm2  105℃ 1000V Cable 2



UL2586 TYPE PVC Oil resistance Bare Copper Stranded 4G × 2.50 mm2  105℃ 1000V Cable 3
