HWATEK WIRES AND CABLE CO.,LTD.
|
Product Details:
Payment & Shipping Terms:
|
| Conductor: | Tinned Copper Stranded | Insulation: | PVC |
|---|---|---|---|
| Jacket: | PVC(Oil Resistance) | Cable Shape: | Round |
| Application: | Industrial, Comsumer Electrics, Medical, Etc | Packing: | Packed In Reels |
| Volatge: | 600V | Temperature: | 90℃ |
| HWATEK: | HT2401941 | ||
| High Light: | 600V PVC Bare Copper Stranded Cable,12G PVC Bare Copper Stranded Cable,ul2587 type bare copper cable |
||

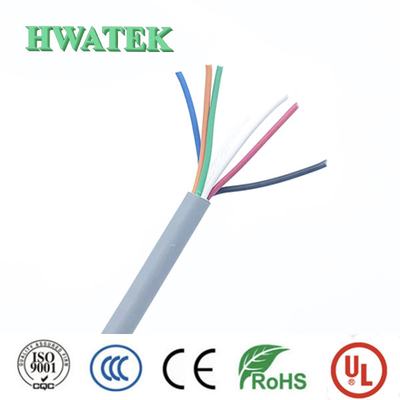

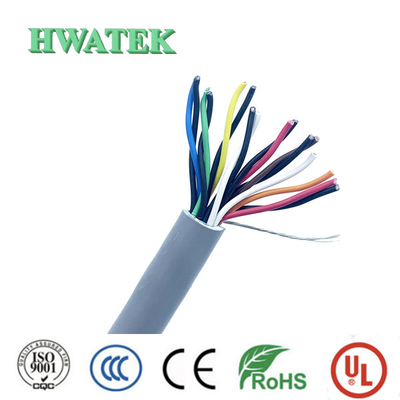

UL2587 TYPE PVC ( Oil resistance ) Bare Copper Stranded 12G ×1.50 mm2 90℃ 600V Cable
Product Description
Application: Internal wring or external interconnection of electronic equipment.
Application standard: Outdoor
Product character:
Flame rated : VW-1
Tensile strength:≥10.3MPa Elongation:≥100%
Aged condition:121±1℃×168H
Percent of original tensile strength: ≥70%
Percent of original elongation: ≥65%
UL758 -E258652-20060111-CertificateofCompliance-1....
| Construction | ||
| Conductor | Bare copper stranded | |
| Cross section | 1.50mm2 | |
| Construction | 30/0.254mm | |
| Strand Dia. | 1.61mm | |
| Insulation | PVC | |
| Nom.Thickness | 0.38mm | |
| Min.Thickness | 0.33mm | |
| Insulation Dia. | 2.50±0.15mm | |
| Insulation colour | 1~11.black with number 1~11 12.yellow/green |
|
| Filler | Optional | |
| Material | Non-woven | |
| Assembly | 12C×0.75mm2+W | |
| In jacket | PVC | |
| Nom.Thickness | 0.30mm | |
| In jacket O.D. | 11.20±0.30mm | |
| In jacket colour | Grey | |
| Braid | Tinned copper | |
| Size | 0.15mm,≥85% | |
| Material | Paper | |
| Jacket | PVC(Oil resistance) | |
| Nom.Thickness | 1.00mm | |
| Min.Thickness | 0.80mm | |
| O.D. | 14.80±0.50mm | |
| Colour | Grey (RAL7001) | |
Insulation:PVC
Conductor : Bared copper stranded
Construction:
Jacket : per request
Jacket: PVC
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International: UL2587
RoHS,REACH Compliant,
Technical data
Rated voltage:600V
Rated Temperature: 90℃
Flame: FT1
Voltage withstand test:AC 2.0 kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible
| Electric Performance | |
| Rated Temperature | -40~90℃ |
| Voltage rating | 600V |
| Max.conductor DC resistance(20℃) | 13.7Ω/km |
| Dielectric Strength AC | 2.0kV/1min |
| Min. bend radius | fixed 5*OD moving 10*OD |
