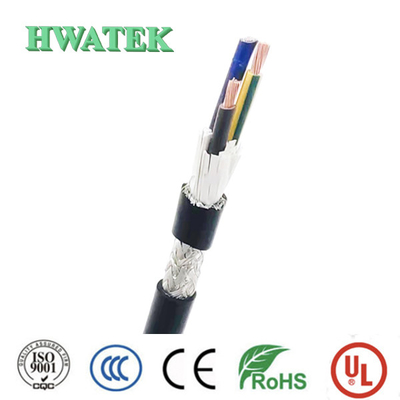

UL20233 TYPE TPU oil UV Resistance Bare Copper Stranded 4P ×0.75 mm2 80℃ 300V Cable
Product Details
UV Resistance Bare Copper Stranded Cable
,80℃ Bare Copper Stranded Cable
,Oil Resistance Bare Copper Stranded Cable
UL20233 TYPE TPU ( oil & UV Resistance ) Bare Copper Stranded 4P ×0.75 mm2 80℃ 300V Cable
Product Description
Application: Internal wring or external interconnection of electronic equipment.
Application standard: Outdoor
Product character:
Flame rated : FT2
Tensile strength:≥10.3MPa Elongation:≥100%
Aged condition:113±1℃×168H
Percent of original tensile strength: ≥70%
Percent of original elongation: ≥65%
UL758 -E258652-20060111-CertificateofCompliance-1....
| ITEM | 4P×0.75mm2(24/0.20B)+W | ||||
| CONDUCTOR | Material | Bare Copper Stranded | |||
| Size | 24/0.20mm | ||||
| O.D.(Ref) | 1.13mm | ||||
| INSULATION | Material | PP | |||
| Min.average thickness | 0.20mm | ||||
| Min.thickness at any point | 0.16mm | ||||
| O.D. | 1.60±0.10mm | ||||
| TWISTED | O.D.(Ref) | 3.20mm | |||
| CABLING | Filler | Cotton | |||
| Material | Non-woven | ||||
| Assembly | 4P×0.75mm2(24/0.20B)+W | ||||
| BRAID | Material | Tinned Copper | |||
| Size | 0.12mm ≥85% | ||||
| JACKET | Material | Non-woven | |||
| Material | TPU(oil & UV Resistance) | ||||
| Min.average thickness | 0.76mm | ||||
| Min.thickness at any point | 0.61mm | ||||
| O.D. | 10.60±0.40mm | ||||
Insulation:PP
Conductor : Bared copper stranded
Construction:
Jacket : per request
Jacket: TPU
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International: UL20233
RoHS,REACH Compliant,
Technical data
Rated voltage:300V
Rated Temperature: 80℃
Flame: FT2
Voltage withstand test:AC 2.0 kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible
| ELECTRICAL CHARACTERISTICS | |
| Rated voltage:300V | |
| Rated temperature:80℃ | |
| Max. DC conductor resistance(20℃):27.4Ω/km | |
| Voltage withstand test:AC 2.0kV/1min |
