HWATEK WIRES AND CABLE CO.,LTD.
|
Product Details:
Payment & Shipping Terms:
|
| Conductor: | Tinned Copper Stranded | Insulation: | ETFE |
|---|---|---|---|
| Jacket: | XLPE | Cable Shape: | Round |
| Application: | Industrial, Comsumer Electrics, Medical, Etc | Packing: | Packed In Reels |
| Volatge: | 30V | Temperature: | 125℃ |
| HWATEK: | HT2402082 | ||
| Highlight: | 125℃ ETFE insulation Cable,UL21410 ETFE insulation Cable,3C ×28 AWG ETFE insulation Cable |
||

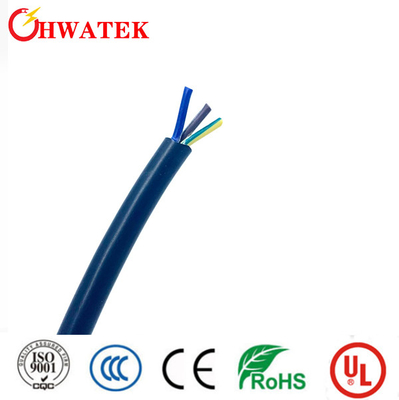

UL21410 TYPE XLPE Jacket ETFE insulation Tinned Copper Stranded 3C ×28 AWG 125℃ 30V Cable
Product Description
Application: Internal wring or external interconnection of electronic equipment.
Application standard: Outdoor
Product character:
Flame rated : FT2
Tensile strength:≥13.79MPa Elongation:≥300%
Aged condition:158±1℃×168h
Percent of original tensile strength: ≥80%
Percent of original elongation: ≥80%
UL758 -E258652-20060111-CertificateofCompliance-1....
| ITEM | 3C×28AWG+P | ||||
| CONDUCTOR | Material | Tinned copper strand | |||
| Size | 7/0.127mm | ||||
| O.D.(Ref) | 0.38mm | ||||
| INSULATION | Material | ETFE | |||
| Min.average thickness | 0.18mm | ||||
| Min.thickness at any point | 0.13mm | ||||
| O.D | 0.85±0.10mm | ||||
| CABLING | Material | Paper tape | |||
| Assembly | 3C×28AWG+P | ||||
| BRAID | Material | / | |||
| Size | / | ||||
| JACKET | Material | XLPE | |||
| Min.average thickness | 0.18mm | ||||
| Min.thickness at any point | 0.13mm | ||||
| O.D | 2.70±0.20mm | ||||
Insulation:ETFE
Conductor : Tinned copper stranded
Construction:
Jacket : per request
Jacket: XLPE
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International: UL21410
RoHS,REACH Compliant,
Technical data
Rated voltage:30V
Rated Temperature: -40~125℃
Flame: FT2
Voltage withstand test:AC 0.5 kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible
| ELECTRICAL CHARACTERISTICS | |
| Rated voltage:30V | |
| Working temperature:-40~125℃ | |
| Max. DC conductor resistance(20℃): 239Ω/km | |
| Voltage withstand test:AC 0.5kV/1min | |
| Current:0.5A |
