HWATEK WIRES AND CABLE CO.,LTD.
|
Product Details:
Payment & Shipping Terms:
|
| Conductor: | Tinned Copper Stranded | Insulation: | PVC |
|---|---|---|---|
| Jacket: | PVC | Cable Shape: | Round |
| Application: | Industrial, Comsumer Electrics, Medical, Etc | Packing: | Packed In Reels |
| Volatge: | 300/500V | Temperature: | 70℃ |
| HWATEK: | HT2402357 | ||
| High Light: | 70℃ PVC insulation Cable,300/500V PVC insulation Cable,3C × 1.25mm2 PVC insulation Cable |
||

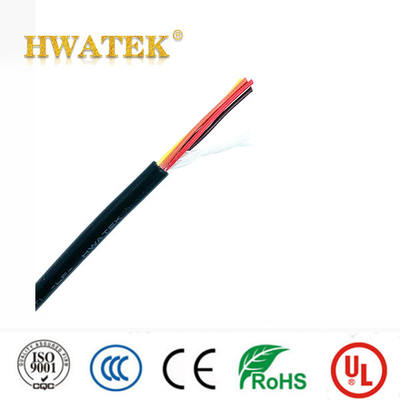

H05VV-F TYPE PVC Jacket PVC insulation Bared Copper Stranded 3C × 1.25mm2 70℃ 300/500V Cable
Product Description
Application: Internal wring or external interconnection of electronic equipment.
Product character:
Flame rated : FT2
Tensile strength:≥10.0MPa Elongation:≥150%
Aged condition:80±2℃×168h
Percent of original tensile strength: ±20%
Percent of original elongation: ±20%
UL758 -E258652-20060111-CertificateofCompliance-1....
| ITEM | 3C×1.25mm2 | ||||
| CONDUCTOR | Material | Bare copper stranded | |||
| Size | 26/0.254mm | ||||
| O.D.(Ref) | 1.49mm | ||||
| INSULATION | Material | PVC | |||
| Min.average thickness | 0.70mm | ||||
| Min.thickness at any point | 0.56mm | ||||
| O.D. | 3.00±0.15mm | ||||
| CABLING | Assembly | 3C×1.25mm2 | |||
| JACKET | Material | PVC | |||
| Min.average thickness | 0.90mm | ||||
| Min.thickness at any point | 0.72mm | ||||
| O.D. | 8.50±0.30mm | ||||
Insulation:PVC
Conductor : Tinned copper stranded
Construction:
Jacket : per request
Jacket: PVC
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International: H05VV-F
RoHS,REACH Compliant,
Technical data
Rated voltage:300/500V
Rated Temperature: 70℃
Flame: FT2
Voltage withstand test:AC 2.0 kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible
| ELECTRICAL CHARACTERISTICS | |
| Rated voltage:300/500V | |
| Rated temperature:70℃ | |
| Max. DC conductor resistance(20℃):13.7Ω/km | |
| Voltage withstand test:AC 2.0kV/5min |
