UL10322 10 AWG Bared Copper Stranded TPE Jacket 600V 105℃ High Voltage Single Cable

Certification
China HWATEK WIRES AND CABLE CO.,LTD. certification
China HWATEK WIRES AND CABLE CO.,LTD. certification
thank you very much for your quick response . Your professional cable solution helps me out , Cable quality is very good . It fits our connectors

—— Gonalze

Your products quality beyond my imagine, I highly appreciate your great support , Hope have better and deeper cooperation in future.

—— Bharath

I'm Online Chat Now

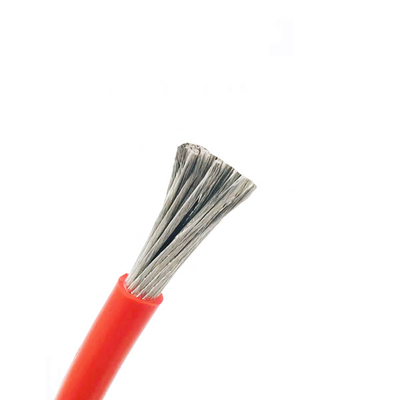

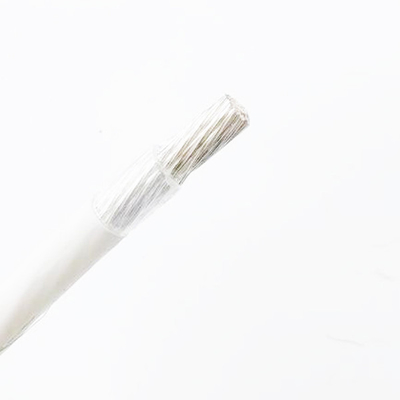

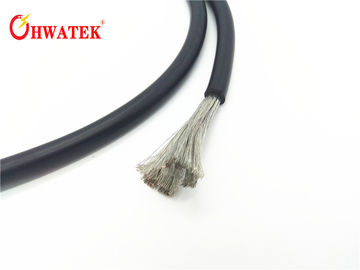

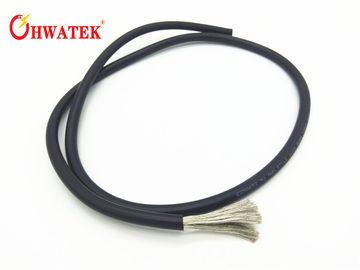

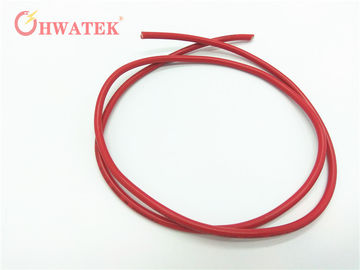

UL10322 10 AWG Bared Copper Stranded TPE Jacket 600V 105℃ High Voltage Single Cable

UL10322 10 AWG Bared Copper Stranded TPE Jacket 600V 105℃ High Voltage Single Cable
UL10322 10 AWG Bared Copper Stranded TPE Jacket 600V 105℃ High Voltage Single Cable

Large Image :  UL10322 10 AWG Bared Copper Stranded TPE Jacket 600V 105℃ High Voltage Single Cable

Product Details:
Place of Origin: China
Brand Name: Hwatek
Certification: RoHS, Reach
Model Number: UL10322
Payment & Shipping Terms:
Minimum Order Quantity: 1000m
Price: To be negotiated
Packaging Details: Packed in rolls or reels
Delivery Time: 3-4 Weeks
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 100km per day
Detailed Product Description
Conductor: Bared Copper Stranded Insulation: TPE
Jacket: TPE Cable Shape: Round
Application: Industrial, Comsumer Electrics, Medical, Etc Packing: Packed In Reels
Volatge: 600V Temperature: 105℃
HWATEK: HT2303277
High Light:

105℃ Single Cable

,

UL10322 Single Cable

,

10 AWG Single Cable



UL10322 10 AWG Bared Copper Stranded TPE Jacket 600V 105℃ High Voltage Single Cable



Product Description
Application: Internal wring or external interconnection of electronic equipment.
Application standard: Outdoor

Product character:
Flame rated : VW-1
Rated Temperature  105℃
Voltage rating 600V

UL758 -E258652-20060111-CertificateofCompliance-1....

ITEM 10AWG(7/59/0.127B)
CONDUCTOR Material Bare copper stranded
Size 7/59/0.127mm
O.D.(Ref) 3.30mm
INSULATION Material TPE
Min.average thickness 0.51mm
Min.thickness at any point 0.46mm
O.D. 4.70±0.20mm


Insulation:TPE
Conductor : Bared copper stranded
Jacket: Per request
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,

Standards
International:
UL10322
RoHS,REACH Compliant,
Technical data
Rated voltage:
600V
Rated Temperature: 105℃
Flame:  VW-1
Voltage withstand test:AC 2.0kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible



ELECTRICAL CHARACTERISTICS
Rated voltage:600V
Rated temperature:105
Max. DC conductor resistance(20℃):3.409Ω/km
Voltage withstand test:AC 2.0kV/1min



UL10322 10 AWG Bared Copper Stranded TPE Jacket 600V 105℃ High Voltage Single Cable 0UL10322 10 AWG Bared Copper Stranded TPE Jacket 600V 105℃ High Voltage Single Cable 1

UL10322 10 AWG Bared Copper Stranded TPE Jacket 600V 105℃ High Voltage Single Cable 2


Company Profiles
Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.


Certificates
UL10322 10 AWG Bared Copper Stranded TPE Jacket 600V 105℃ High Voltage Single Cable 3

Production Progress
UL10322 10 AWG Bared Copper Stranded TPE Jacket 600V 105℃ High Voltage Single Cable 4
Shipping
UL10322 10 AWG Bared Copper Stranded TPE Jacket 600V 105℃ High Voltage Single Cable 5

FAQ
1. Q:What can you supply?
A: We do produce consumer electronics wires, hock up wires, industrial cables, robot cables, ev charging cables, new/green energy cables.
2. Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
3. Q:Can we get samples before ordering?
A: Yes, we are willing to arrange samples for you.
4. Q: What's your lead time?
A: Normally we can finish you orders in 2-3 weeks, and 5-6 weeks in peak season.
5. Q. How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final Inspection before shipment.
