Name: IEC 126 Standard Bared Copper Stranded 2C × 50 mm2 + 25 mm2 + 6C × 0.75 mm2 1500V DC CPE Jacket 90 Deg Cable
Brand: NANTONG HWATEK WIRES AND CABLE CO.,LTD.
SKU: IEC 62893-4-1
Price: 0.20 USD
Availability: InStock

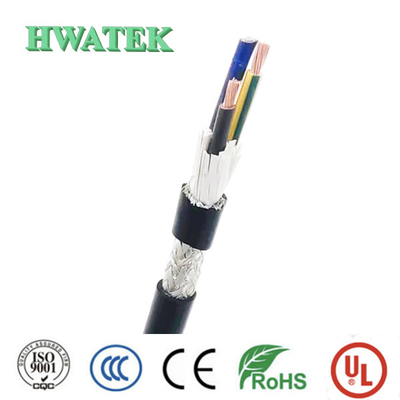

Large Image : IEC 126 Standard Bared Copper Stranded 2C × 50 mm2 + 25 mm2 + 6C × 0.75 mm2 1500V DC CPE Jacket 90 Deg Cable

Product Details:

Place of Origin:	China
Brand Name:	Hwatek
Certification:	IEC
Model Number:	IEC 62893-4-1

Payment & Shipping Terms:

Minimum Order Quantity:	1000m
Price:	To be negotiated
Packaging Details:	Packed in reels
Delivery Time:	4 Weeks
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	100KM per month

Contact Now

Detailed Product Description

Conductor:	Bared Copper	Insulation:	EVI-2
Jacket:	EVM-1	Cable Shape:	Round
Application:	Industrial, Comsumer Electrics, Medical, EV Charging, Green Energy Etc	Packing:	Packed In Reels
Volatge:	1500V DC	Temperature:	-40~90℃
PN:	HT2504389

Electric Performance

Rated Temperature

Voltage rating

Max.conductor DC resistance(20℃)

A:0.423Ω/km B:0.848Ω/km C:27.4Ω/km

Dielectric Strength

AC 3.5kV/5min

Construction

Conductor
Cross section	A:2C×50.0mm2	B:1C×25.0mm2	C:3×2C×0.75mm2
Construction	1596/0.20mm	798/0.20mm	40/0.15mm +Tinsel+Kevlar
Strand Dia.(Ref.)	9.90mm	7.10mm	1.30mm
Insulation	EVI-2
Nom.Thickness	1.10mm	1.00mm	0.50mm
Min.Thickness	0.90mm	0.85mm	0.35mm
Insulation Dia.	12.40±0.40mm	9.20±0.30mm	2.35±0.15mm
Insulation colour	1.red 2.black	B.yellow/green	C1.violet&white C2.orange&blue C3.gray&brown
Twisted pair	/	/	4.7mm
Filler	PP rope
Material	Non-woven
Assembly	2C×50.0mm2+1C×25.0mm2+6C×0.75mm2+W
Jacket	EVM-1
Nom.Thickness	2.20mm
Min.Thickness	1.77mm
Outer Dia.	32.00±1.00mm
Colour	Black

IEC 126 Standard Bared Copper Stranded 2C × 50 mm2 + 25 mm2 + 6C × 0.75 mm2 1500V DC CPE Jacket 90 Deg Cable 0

Conductor Bared copper stranded
Cross section 2C×50.0mm2+1C×25.0mm2+6C×0.75mm2+W
Construction 1596/0.20mm ,798/0.20mm,40/0.15mm
Elongation ≥100%
Aged condition 110℃×168H
Insulation EVI-2
Nom.Thickness 1.00 mm
Min.Thickness 0.85 mm
Insulation Dia.12.40±0.40mm

nsulation: :red, black

Jacket EVM-1
Reference standard:IEC standard
Nom.Thickness 2.2 mm
Outer Dia. 32.00±1.00mm
Colour per request
