Copper Multi Conductor Control Cable 305m PVC Sheath HT-LS007

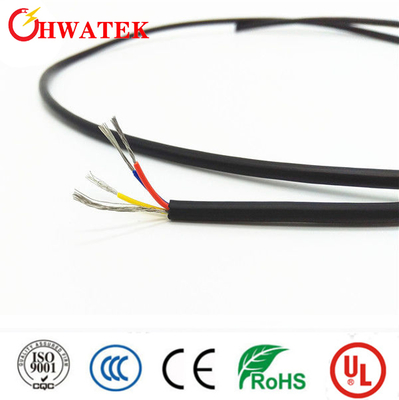

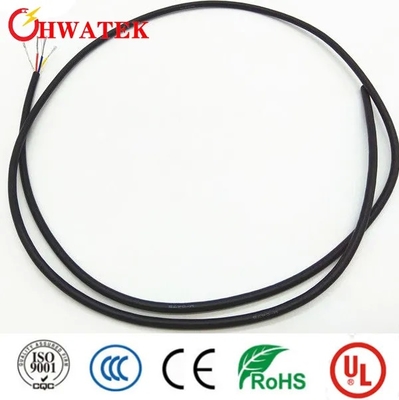

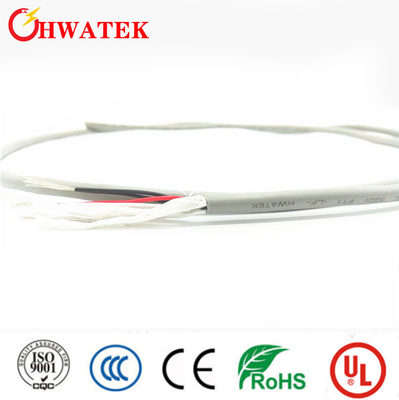

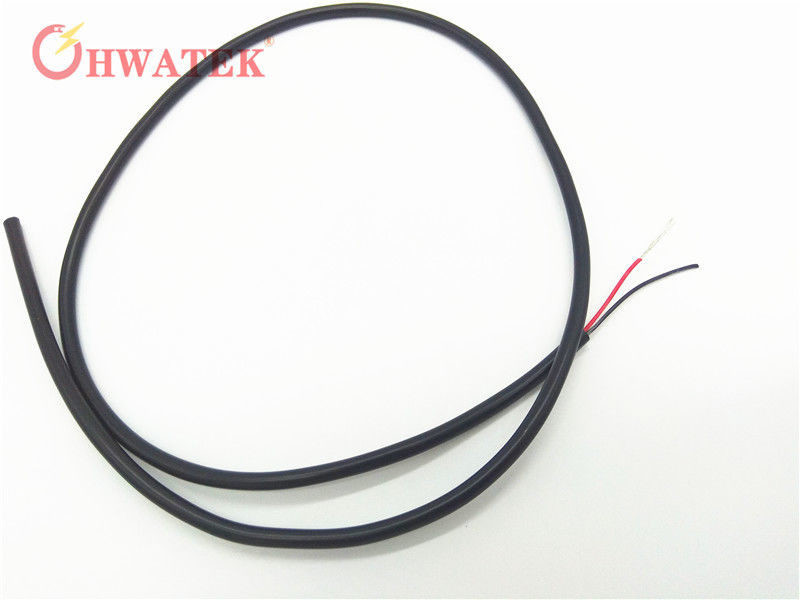

Large Image : Copper Multi Conductor Control Cable 305m PVC Sheath HT-LS007

Product Details:

Certification:	ISO9001, CE, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Conductor Material:	Copper	Sheath Material:	PVC
Insulation Material:	TPE	Material Shape:	Round Wire
Qty/Roll:	305m, 610m Or As Request	Conductor Dia.:	0.38mm, 0.48mm, 0.61mm
Insulation Thickness:	0.28mm, 0.36mm, 0.4mm	Nom. Dia.:	0.95mm, 1.2mm, 1.4mm
Shield Dia.:	1.15mm, 1.4mm, 1.6mm	Jacket Thickness:	0.3mm, 0.3mm, 0.4mm
Rated Voltage:	600 V	Rated Temperature:	-40ºC To 105ºC
Oil Resistance:	60ºC Or 80ºC Oil	Voltage Withstand:	AC 2.5kV/1min
Max. Resistance:	223Ω/km, 140Ω/km, 87.6Ω/km
Highlight:	Copper multi conductor control cable , PVC sheath industrial flexible cable , 305m control cable with warranty

Electrical Hook up Multi Conductor Control Cable

Product Specifications

Attribute	Value
Model NO.	HT-LS007
Conductor Material	Copper
Sheath Material	PVC
Insulation Material	TPE
Material Shape	Round Wire
Range of Application	Medical Equipment
Brand	Hwatek
Color	Optional
Qty/Roll	305m, 610m or as Request
Transport Package	Rolled in Reels, Packed in Pallets.
Trademark	Hwatek
Origin	China
HS Code	8544492100

Technical Specifications

Product Number	Conductor	Insulation	Spiral or Braiding Shield	Jacket	Max. Cond. Resistance(20ºC)Ω/km
Size AWG	No./mm	Conductor Dia. mm	Nom. Thickness mm	Nom. Dia. mm	No./mm	Nom Dia.mm	Nom. Thickness mm	Nom. Dia. mm
HT1354**001	28	7/0.127	0.38	0.28	0.95	32/0.1	1.15	0.3	1.75	223
HT1354**002	26	7/0.16	0.48	0.36	1.2	40/0.1	1.4	0.3	2	140
HT1354**003	24	7/0.203	0.61	0.4	1.4	46/0.1	1.6	0.4	2.4	87.6

Construction Details

Core Number: Consists of two or more conductors, twisted pairs or groups of twisted conductors twisted together
Conductor: Solid or Stranded
Insulation: PVC, PE, SRPVC, PP
Shield or Braid: Optional
Jacket: PVC
Application: Internal wiring of electronic equipment and appliances

Standards Compliance

International: UL758, UL1581, UL2556
RoHS, REACH Compliant

Technical Data

Rated voltage: 600 V
Rated Temperature: -40ºC to 105ºC
Flame: VW-1, FT1, FT2
Oil resistance: 60ºC or 80ºC Oil
Voltage withstand test: AC 2.5kV/1min
Printing: E258652 AWM STYLE 2501 AWGXX 105ºC 300V VW-1 ---c AWM I A/B 105ºC 300V FT1 -LF-HWATEK
