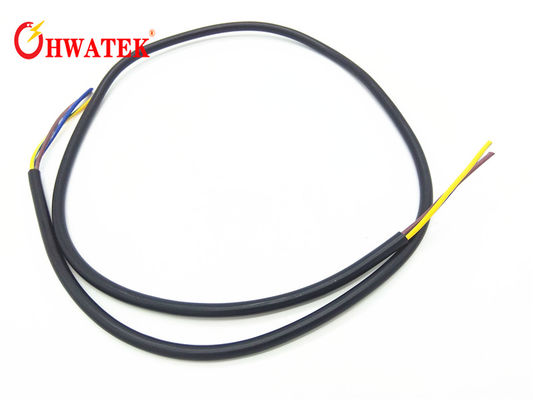

Multi Core PVC Cable Copper Wire UL2570 , Screened Power Cable 40AWG

Multi Core PVC Cable Copper Wire UL2570 , Screened Power Cable 40AWG
Multi Core PVC Cable Copper Wire UL2570 , Screened Power Cable 40AWG Multi Core PVC Cable Copper Wire UL2570 , Screened Power Cable 40AWG Multi Core PVC Cable Copper Wire UL2570 , Screened Power Cable 40AWG

Large Image :  Multi Core PVC Cable Copper Wire UL2570 , Screened Power Cable 40AWG

Product Details:
Brand Name: HWATEK
Certification: UL,CUL, CE,ROHS, REACH
Model Number: UL2570 Multiple-core Flexible cable,Special PVC Sheath, High Flexible,Screened
Payment & Shipping Terms:
Minimum Order Quantity: 6.1KM
Price: Negotiable
Packaging Details: carton/pallet
Delivery Time: 2-3W
Payment Terms: T/T
Detailed Product Description
Product Name: UL2570 Multiple-core Flexible Cable,Special PVC Sheath, High Flexible,Screened Size: 40AWG MIN
Conductor: Stranded, Tinned Or Bare Copper, IEC60228 CL5 Core Number: Multiple-core
Standard: UL758,UL1581, UL2556,IEC60228 Insulation Material: Special PVC, SRPVC, PP
Shield Material: Bare Or Tinned Copper Braid Sheath Material: Special PVC
Rated Voltage: 600V Temperature: -40℃-80℃
Flame: VW-1,FT1,FT2 Free Sample: YES
High Light:

flexible multicore cable

,

multi core electrical cable

UL2570 Multiple-core Flexible cable,Special PVC Sheath, High Flexible,Screened,80 ℃, 600V VW-1



Construction

Conductor : stranded, tinned or bare copper, IEC60228 CL5
Insulation: Special PVC, SRPVC, PP

Shield or Braid: bare or tinned copper braid

Jacket: Special PVC



Standards
International: UL758 , UL1581, UL2556

RoHS,REACH Compliant,

Application:These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,



Technical data
Rated voltage:600V

Rated  Temperature:-40℃-80℃

Flame: VW-1, FT1, FT2
Oil resistance: 60 ℃ or 80 ℃ Oil

Voltage withstand test:AC 3.5kV/1min

Printing :E258652 Multi Core PVC Cable Copper Wire UL2570 , Screened Power Cable 40AWG 0   AWM STYLE 2570 AWGXX 80℃ 600V VW-1 ---c AWM I A/B 80℃ 600V FT1 -LF-HWATEK
Note: Where "XX" means AWG No.



Properties

Extensively oil resistant,
Conditional drag chain compatible

Conditional suitability for torsion

low Temperature
self-extinguishing and flame retardant




Specifications





Certificates



UL, CUL, CE



Packing and Shipping



  1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
  2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
  3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
  4. The cargo, manufacturer, packing details will be labeled on the outer packing;
  5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
  6. Shipping term, It depends on the value of the goods and the will of the customer.
