Screened Drag Chain Cable 300V 4P-8P Copper Conductor

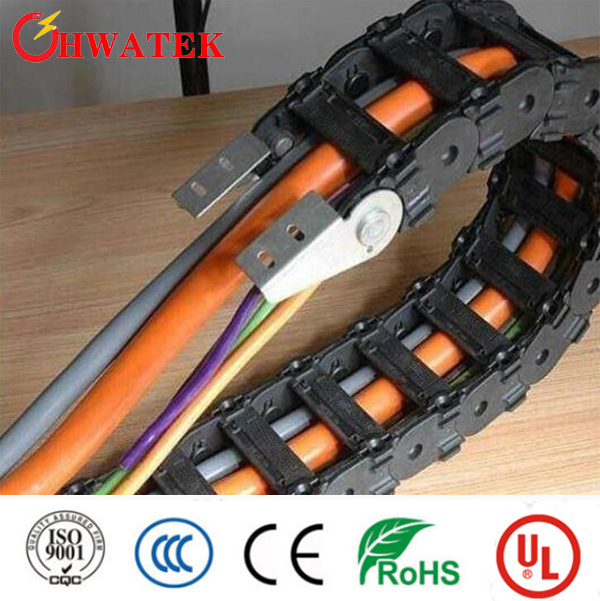

Large Image : Screened Drag Chain Cable 300V 4P-8P Copper Conductor

Product Details:

Certification:	ISO9001, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Model NO.:	HT-LS004	Conductor Material:	Copper
Sheath Material:	PVC	Insulation Material:	TPE
Material Shape:	Round Wire	Conductor Size:	26 AWG
Conductor Stranding:	18/0.10	Conductor Diameter:	0.49 Mm
Insulation Thickness:	0.21 Mm	Nominal Diameter:	0.90 Mm
Max Conductor Resistance:	131.8 Ω/km	Rated Voltage:	300 V
Temperature Range:	-40ºC To 105ºC	Flame Rating:	VW-1, FT1, FT2
Voltage Withstand:	AC 2.0kV/1min
Highlight:	screened drag chain cable 300V , 4P-8P copper conductor cable , industrial flexible screened cable

Screened Drag Chain Cable

Product Specifications

Attribute	Value
Model NO.	HT-LS004
Conductor Material	Copper
Sheath Material	PVC
Insulation Material	TPE
Material Shape	Round Wire
Range of Application	Medical Equipment
Brand	Hwatek
Color	Optional
Qty/Roll	305m, 610m or as Request
Transport Package	Rolled in Reels, Packed in Pallets.
Trademark	Hwatek
Origin	China
HS Code	8544492100

Technical Specifications

Product Number	Conductor	Size AWG	NO./mm	Conductor Dia.mm	Nom Thickness mm	Nom. Dia mm	Max Cond. Resistance(20ºC)Ω/km
HT20233***001	4P	26	18/0.10	0.49	0.21	0.90	131.8
HT20233***002	5P	26	18/0.10	0.49	0.21	0.90	131.8
HT20233***003	6P	26	18/0.10	0.49	0.21	0.90	131.8
HT20233***004	7P	26	18/0.10	0.49	0.21	0.90	131.8
HT20233***005	8P	26	18/0.10	0.49	0.21	0.90	131.8

Construction Details

Conductor: Stranded tinned or bare copper
Insulation: PVC, SRPVC, PP, ETFE, TPEE
Screened: Construction with Cu-screening, tinned, approx. 85%
Jacket: PVC

Standards Compliance

International: UL758, UL1581, UL2556, IEC60228 CL6
RoHS, REACH Compliant

Technical Data

Rated voltage: 300 V
Rated Temperature: -40ºC to 105ºC
Flame: VW-1, FT1, FT2
Voltage withstand test: AC 2.0kV/1min

Key Properties

Low adhesion
Ozon- and UV-resistant
High property of alternating bending strength
High resistant to mechanical strain
Long life durabilities due to low friction-resistance
Better chemical resistance
High stability
Higher economical solution
Reduced Ø, results low weight of moving materials

Minimum Bending Radius

Flexing: 7.5x cable Ø
Fixed installation: 4x cable Ø
