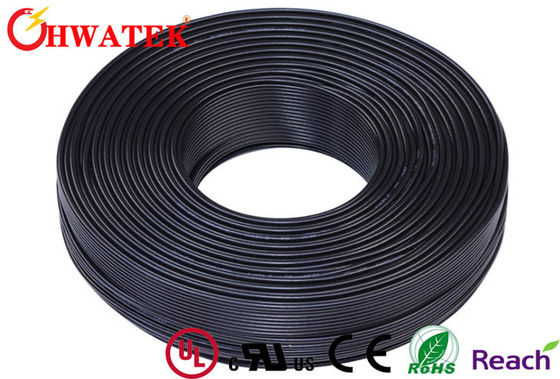

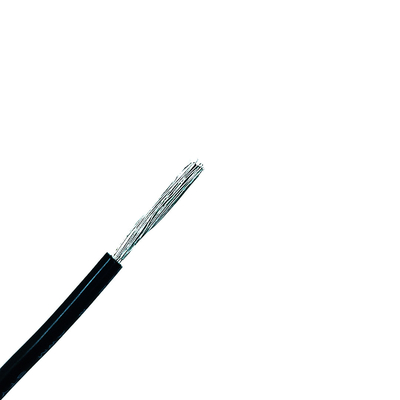

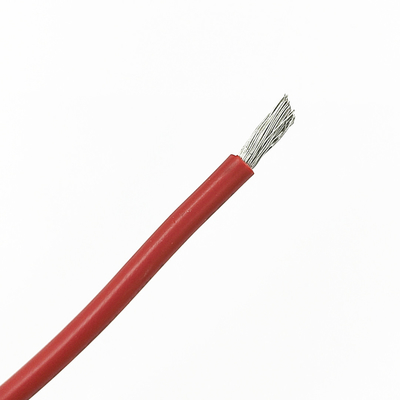

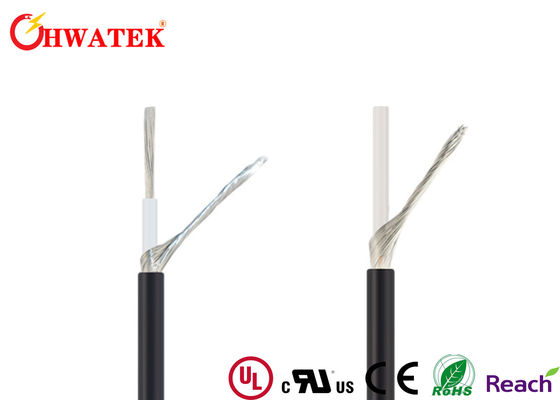

UL3452 26AWG XLPE Jacket Tinned Copper Stranded Cable 30V 125℃ Hook up wire Cable

UL3452 26AWG XLPE Jacket Tinned Copper Stranded Cable 30V 125℃ Hook up wire Cable
UL3452 26AWG XLPE Jacket Tinned Copper Stranded Cable 30V 125℃ Hook up wire Cable

Large Image :  UL3452 26AWG XLPE Jacket Tinned Copper Stranded Cable 30V 125℃ Hook up wire Cable

Product Details:
Place of Origin: China
Brand Name: HWATEK
Certification: ISO9001, CCC, RoHS
Model Number: UL3452
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: Negotiable
Packaging Details: Reels or rolls
Delivery Time: 4 Weeks
Payment Terms: T/T
Supply Ability: 1000KM/ month
Contact Now
Detailed Product Description
Conductor Material: Tinned Copper Sheath Material: XLPE
Insulation Material: XLPE Material Shape: Round Wire
Conductor Size: 16-24AWG Max Conductor Resistance: 150Ω/km
Rated Temperature: 125ºC Rated Voltage: 30V
Nominal Diameter: 1.00±0.08mm Cable Length: 305m, 610m Or As Request
Flame Test: VW-1 Spec: HT2502653
Highlight:

shielded robot cable 305m

,

PVC sheath industrial cable

,

copper conductor flexible cable

UL3452 26AWG XLPE Jacket Tinned Copper Stranded Cable 30V 125℃ Hook up wire Cable
Product Specifications
Construction
Conductor Tinned copper stranded
Cross section 26AWG
Construction 7/0.16mm
Strand Dia.(Ref.) 0.48mm
Insulation XLPE
Nom.Thickness 0.23mm
Min.Thickness 0.18mm
Insulation Dia. 1.00±0.08mm
Insulation colour black
Technical Parameters
Electric Performance
Rated Temperature 125℃
Voltage rating 30V
Max.conductor DC resistance(20℃) 150Ω/km
Dielectric Strength AC 0.5kV/1min
Mechanical Performance
/ Jacket
Material XLPE
Tensile strength ≥13.79MPa
Elongation ≥300%
Aged condition 158±1℃×168h
Percent of original tensile strength ≥80%
Percent of original elongation ≥80%
Flame test VW-1

Product Features
  • Passes UL VW-1 and CSA FT1 vertical flame test
  • Excellent heat, oil, and wear resistance
  • Superior bending and torsion resistance
Construction Details
  • Stranded bare copper conductor (16-24WG)
  • XLPE  insulation
Technical Specifications
Company Profile
Founded in 2004 with 9 million USD capital investment, our headquarters factory in Kunshan covers 14,980 square meters. In 2020, we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters.
With ISO9001, ISO14001, IATF16949, and ISO13485 system certificates, all our products have passed CCC, UL, CUL, CE, CSA, and ETL safety certifications. We serve global customers through our well-established sales system based on the management principles of HONESTY, INNOVATION, and ENVIRONMENTAL PROTECTION.
UL3452 26AWG XLPE Jacket Tinned Copper Stranded Cable 30V 125℃ Hook up wire Cable 2 UL3452 26AWG XLPE Jacket Tinned Copper Stranded Cable 30V 125℃ Hook up wire Cable 3
Certifications
UL3452 26AWG XLPE Jacket Tinned Copper Stranded Cable 30V 125℃ Hook up wire Cable 4
Production Process
UL3452 26AWG XLPE Jacket Tinned Copper Stranded Cable 30V 125℃ Hook up wire Cable 5
Shipping
UL3452 26AWG XLPE Jacket Tinned Copper Stranded Cable 30V 125℃ Hook up wire Cable 6
Frequently Asked Questions
Q: What can you supply?
A: We produce consumer electronics wires, hook-up wires, industrial cables, robot cables, EV charging cables, and new/green energy cables.
Q: What certificates do you have?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, and ETL certificates.
Q: Can we get samples before ordering?
A: Yes, we can arrange samples for evaluation.
Q: What's your lead time?
A: Normally 2-3 weeks, extending to 5-6 weeks during peak season.
Q: How do you guarantee product quality?
A: We conduct pre-production sampling and final inspection before shipment.
Major Customers
We serve a global clientele across various industrial sectors.
