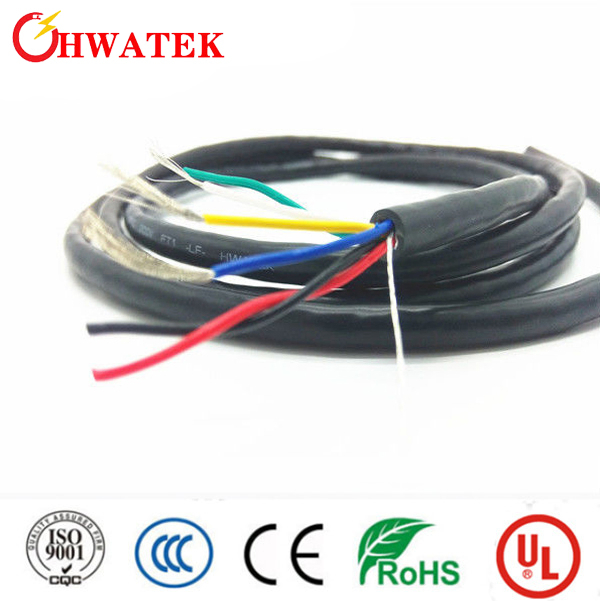

Industrial Robot Cable 4C 19AWG Copper TPEE PVC 305m Roll

Large Image : Industrial Robot Cable 4C 19AWG Copper TPEE PVC 305m Roll

Product Details:

Certification:	ISO9001, CE, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Conductor Material:	Copper	Sheath Material:	Tpee
Insulation Material:	PVC	Material Shape:	Round Wire
Qty/Roll:	305m,610m Or As Request	Conductor Size:	16-24WG
Rated Temperature:	80ºC	Rated Voltage:	300V
Max Conductor Resistance:	200C Ω/km	Conductor Dia:	0.24mm, 0.38mm
Insulation Thickness:	0.40mm	Nominal Dia:	2.1mm, 2.45mm, 7.2mm, 8.1mm, 12.1mm
Shield Material:	Not Specified	Jacket Thickness:	1.0mm
Cores:	4C, 8C
Highlight:	Industrial Robot Cable 4C 19AWG , TPEE PVC Flexible Cable 305m , Copper Industrial Cable with Warranty

Long Distance Using Signal Robot Cable

Product Specifications

Attribute	Value
Model NO.	NOUL
Conductor Material	Copper
Sheath Material	Tpee
Insulation Material	PVC
Material Shape	Round Wire
Range of Application	Industrial Robot
Brand	Hwatek
Color	Optional
Qty/Roll	305m,610m or as Request
Transport Package	Rolled in Reels, Packed in Pallets.
Trademark	Hwatek
Origin	China
HS Code	8544492100

Product Description

Products are used in long distance drag chain applications.

Product Number	Conductor	Size AWG	NO./mm	Conductor Dia. mm	Thickness mm	Nom. Dia. mm	Material	Nom. Thickness mm	Nom. Dia. mm
HTR***013	4C	19	7/22/0.08	0.24	0.40	2.1	/	1.0	7.2
HTR***014	8C	11.5
HTR***016	4C	17	7/36/0.08	0.38	0.40	2.45	8.1		4C
HTR***017	8C	12.1

Key Features

Application: Long distance drag chain cable
Passes UL VW-1 and CSA FT1 vertical flame test
Heat resistance, oil resistance, wear resistance
Resistance to bending and torsion

Construction

Stranded bare copper conductor, 16-24WG
TPEE insulation
PVC insulation

Technical Parameters

Rated temperature: 80ºC
Rated Voltage: 300V
