UL20549 34P 30AWG Tinned copper stranded PP insulation PVC jacket 30V 80℃ multi-Cores Cable

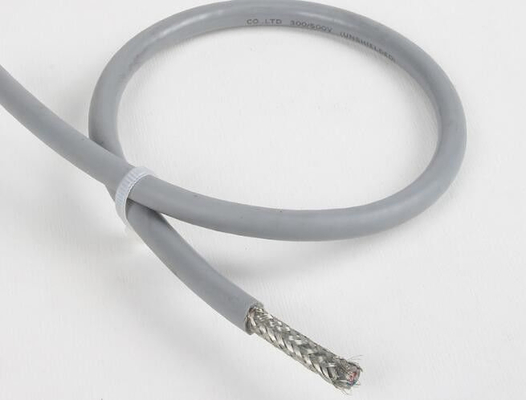

Large Image : UL20549 34P 30AWG Tinned copper stranded PP insulation PVC jacket 30V 80℃ multi-Cores Cable

Product Details:

Place of Origin:	China
Brand Name:	HWATEK
Certification:	ISO9001, CE, CCC, RoHS
Model Number:	UL20276

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	Negotiable
Packaging Details:	Reels or rolls
Delivery Time:	4 Weeks
Payment Terms:	T/T
Supply Ability:	1000KM/ month

Contact Now

Detailed Product Description

Conductor Material:	Tinned Copper Stranded	Sheath Material:	PVC
Insulation Material:	PP	Material Shape:	Round Wire
Conductor Size:	30AWG	Rated Temperature:	80ºC
Rated Voltage:	30V	Max Conductor Resistance:	381 Ω/km
Shield Material:	Tinned Copper Braid	Insulation Thickness:	0.12 Mm
Jacket Thickness:	0.38 Mm	Cable Diameter:	9.80±0.30mm
Spec:	HT2502617
Highlight:	UL2517 industrial robot cable , 28AWG ETFE insulation cable , 305m flexible robot cable

UL20549 34P 30AWG Tinned copper stranded PP insulation PVC jacket 30V 80℃ multi-Cores Cable

Product Specifications

ITEM		34P×30AWG+AB
CONDUCTOR	Material	Tinned copper stranded
	Size	7/0.100mm
	O.D.(Ref)	0.30mm
INSULATION	Material	PP
	Min.average thickness	0.12mm
	Min.thickness at any point	0.10mm
	O.D.	0.60±0.08mm
TWISTED	O.D.(Ref)	1.20mm
CABLING	Filler	Optional
	Material	Al-mylar(foil face out)
BRAID	Material	Tinned copper
	Size	0.100mm(85% min.)
Jacket	Material	PVC
	Min.average thickness	0.38mm
	Min.thickness at any point	0.31mm
	O.D.	9.80±0.30mm

Product Overview

Designed for high-speed moving part wiring of robots and other industrial equipment.

Technical Specifications

ELECTRICAL CHARACTERISTICS
Rated voltage:30V
Rated temperature:80℃
Max. DC conductor resistance(20℃):381Ω/km
Dielectric Strength AC:0.5kV/1min

Key Features

Application: High-speed moving part wiring of robots
Application standard: UL758, UL1581
UL number: UL20276
Passes UL FT2 flame test
Oil and heat resistant with anti-bending and abrasion properties
Effectively resists electromagnetic interference through braiding shield

Construction Details

Stranded bare copper conductor, 30AWG
PP insulation
Tinned copper braid shielding
PVC jacket

Technical Parameters

Rated temperature: 80ºC
Rated Voltage: 30V
