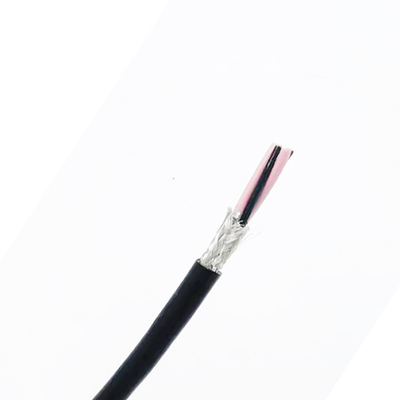

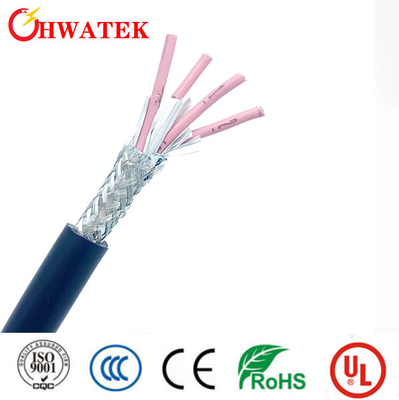

UL 20549 tinned copper stranded 4C X 22AWG 300V 80C VW-1 TPU jacket cable

Large Image : UL 20549 tinned copper stranded 4C X 22AWG 300V 80C VW-1 TPU jacket cable

Product Details:

Place of Origin:	China
Brand Name:	HWATEK
Certification:	ISO9001, CE, CCC, RoHS
Model Number:	UL20549

Payment & Shipping Terms:

Minimum Order Quantity:	1,000
Price:	Negotiable
Packaging Details:	Reels or rolls
Delivery Time:	4 Weeks
Payment Terms:	T/T
Supply Ability:	1000KM/ month

Contact Now

Detailed Product Description

Sheath Material:	TPU	Insulation Material:	TPE
Material Shape:	Round Wire	Conductor Type:	Tinned Copper Stranded
Conductor Structure:	Stranded Or Single	Conductor Size:	22AWG
Rated Temperature:	-30-80℃	Rated Voltage:	300V
Max Conductor Resistance:	59.4Ω/km	Spec:	HT2502811
Highlight:	UL 20549 hook up wire , 300V electronic equipment wire , 80C industrial flexible cable

UL 20549 tinned copper stranded 4C X 22AWG 300V 80C VW-1 TPU jacket cable

ITEM		4C×22AWG+W
CONDUCTOR	Material	Tinned copper stranded
	Size	19/0.16mm
	O.D.(Ref)	0.80mm
INSULATION	Material	TPE
	Min.average thickness	0.23mm
	Min.thickness at any point	0.18mm
	O.D.	1.30±0.10mm
CABLING	Fillers	Optional
	Material	Non-woven
	Assembly	4C×22AWG+W
JACKET	Material	TPU
	Min.average thickness	0.76mm
	Min.thickness at any point	0.61mm
	O.D.	5.00±0.50mm

Application Standard

UL758 & UL1581 & CSA C22.2 No.210

Product Characteristics

Excellent insulation performance with stable chemical properties
Passes UL VW-1 and CSA FT1 vertical flame test
Heat resistant, anti-acid, and environmentally friendly

Construction

Tinned or bare copper, 4C x 22AWG
TPE insulation
Two or more single-core wires twisted or cabled together
Tinned or bare copper wire with spiral or braid shield or Al-mylar wrapped shield
TPU jacket
Insulation : 1.Blue 2.Black 3.White 4.Brown
Jacket:Black

Technical Parameters

Rated temperature: -30 to 80°C

Rated Voltage: 300V

UL758-E258652-20060111A-CertificateofCompliance(2)...
