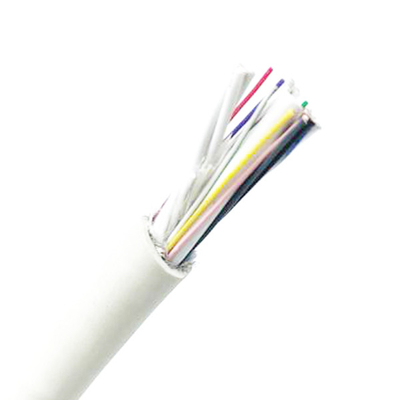

UL2103 TYPE PVC Tinned Copper Stranded 20P×26AWG ( 7/0.16T )+ AB 105℃ 300V Cable
Basic Properties
Place of Origin:
China
Brand Name:
HWATEK
Certification:
ISO9001, CE, CCC, RoHS
Model Number:
UL2103
Trading Properties
Minimum Order Quantity:
3,000
Price:
0.5
Product Summary
UL2103 TYPE PVC Tinned Copper Stranded 20P×26AWG ( 7/0.16T )+ AB 105℃ 300V Cable Product Specifications Construction Conductor Tinner copper stranded Cross section 26AWG Construction 7/0.16mm Strand Dia. 0.48mm Insulation SR-PVC Nom.Thickness 0.23mm Min.Thickness 0.18mm Insulation Dia. 1.00±0.08mm ...
Product Details
Highlight:
UL20940 PVC insulated industrial cable
,600V industrial flexible cable
,305m roll PVC cable
Model NO.:
UL2103
Sheath Material:
PVC
Insulation Material:
SR-PVC
Material Shape:
Round Wire
Qty/Roll:
305m,610m Or As Request
Rated Temperature:
105ºC
Rated Voltage:
300V
Conductor Size:
26AWG
Max Conductor Resistance:
150 Ω/km
Spec:
HT2502915
Product Description
UL2103 TYPE PVC Tinned Copper Stranded 20P×26AWG ( 7/0.16T )+ AB 105℃ 300V Cable
Product Specifications
| Construction | ||||
| Conductor | Tinner copper stranded | |||
| Cross section | 26AWG | |||
| Construction | 7/0.16mm | |||
| Strand Dia. | 0.48mm | |||
| Insulation | SR-PVC | |||
| Nom.Thickness | 0.23mm | |||
| Min.Thickness | 0.18mm | |||
| Insulation Dia. | 1.00±0.08mm | |||
| Insulation colour | See the colour table | |||
| Twisted | 2.00mm | |||
| Material 1 | Al-mylar(fcae in) | |||
| Filler | Optional | |||
| Material 2 | Al-mylar(face out) | |||
| Assembly | 20×(1P×26AWG+A)+A | |||
| Braid | Tinner copper,0.10mm,≥65% | |||
| Jacket | PVC | |||
| Nom.Thickness | 0.76mm | |||
| Min.Thickness | 0.61mm | |||
| O.D. | 12.20±0.40mm | |||
| Colour | Per request | |||
| Colour table | |||||
| 1 | white&black | 18 | black&grey | ||
| 2 | white&brown | 19 | black&pink | ||
| 3 | white&red | 20 | brown&red | ||
| 4 | white&orange | ||||
| 5 | white&yellow | ||||
| 6 | white&green | ||||
| 7 | white&blue | ||||
| 8 | white&violet | ||||
| 9 | white&grey | ||||
| 10 | white&pink | ||||
| 11 | black&brown | ||||
| 12 | black&red | ||||
| 13 | black&orange | ||||
| 14 | black&yellow | ||||
| 15 | black&green | ||||
| 16 | black&blue | ||||
| 17 | black&violet | ||||
Product Overview
Products are used in communication equipment, instruments, industrial control systems, electronic and electrical equipment.
Key Features
- Application: For internal wiring of electronic equipment and appliance
- Application standard: UL758 & UL1581 & CSA C22.2 No.210
- Excellent insulation performance, stable chemical properties
- Pass UL VW-1 and CSA FT1 vertical flame test
- Heat resistance, anti-acid and environmental protection
Construction Details
- Tinned or bare copper, stranded or single conductor, 26AWG
- SR-PVC insulation
- Two or more single-core wires twisted into pair or cabling
- Tinned or bare copper wire, spiral or braid shield or Al-mylar wrapped shield
- PVC jacket
Technical Parameters
- Rated temperature: 105ºC
- Rated Voltage: 300V,
Technical Specifications
| Mechanical Performance | ||||||||
| Jacket | ||||||||
| Material | PVC | |||||||
| Tensile strength | ≥10.3MPa | |||||||
| Elongation | ≥100% | |||||||
| Aged condition | 136±1℃×168h | |||||||
| Percent of original tensile strength | ≥70% | |||||||
| Percent of original elongation | ≥65% | |||||||
Company Profile
Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
Certificates
Production Progress
Shipping
Frequently Asked Questions
Q: What can you supply?
A: We do produce consumer electronics wires, hock up wires, industrial cables, robot cables, ev charging cables, new/green energy cables.
Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
Q: Can we get samples before ordering?
A: Yes, we are willing to arrange samples for you.
Q: What's your lead time?
A: Normally we can finish you orders in 2-3 weeks, and 5-6 weeks in peak season.
Q: How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final Inspection before shipment.
