Customized 2 Coax × 36 AWG + 3C × 32AWG + 1Coax × 28AWG teflon insulation biocompatible PVC jacket medical coaxial Cable
Basic Properties
Place of Origin:
China
Brand Name:
HWATEK
Certification:
ISO9001, CE, CCC, RoHS
Model Number:
Customized
Trading Properties
Minimum Order Quantity:
1000
Price:
Negotiable
Standard Packaging:
Reels or rolls
Delivery Time:
4 Weeks
Payment Terms:
T/T
Supply Ability:
1000KM/ month
Product Summary
Customized 2 Coax × 36 AWG + 3C × 32AWG + 1Coax × 28AWG teflon insulation biocompatible PVC jacket medical coaxial Cable Construction A:2Coax×36AWG B:3C×32AWG C:1Coax×28AWG Conductor Tinned copper stranded Cross section 36AWG 32AWG 28AWG Construction 7/0.05mm 7/0.08mm 7/0.127mm Strand Dia.(Ref.) 0...
Product Details
Highlight:
UL2464 PVC shielded power cable
,24-28AWG industrial wire
,300V braided shielded cable
Model NO.:
Customized
Material Shape:
Round Wire
Qty/Roll:
305m,610m Or As Request
Production Capacity:
20km/Day
Rated Temperature:
80ºC
Rated Voltage:
30V
Conductor Size:
2Coax×36AWG+3C×32AWG+1Coax×28AWG
Jacket Material:
PVC（biocompatible）
Insulation Material:
Teflon
Conductor Type:
Tinned Or Bare Copper
Spec:
HT2502430
Product Description
Customized 2 Coax × 36 AWG + 3C × 32AWG + 1Coax × 28AWG teflon insulation biocompatible PVC jacket medical coaxial Cable
| Construction | |||||
| A:2Coax×36AWG | B:3C×32AWG | C:1Coax×28AWG | |||
| Conductor | Tinned copper stranded | ||||
| Cross section | 36AWG | 32AWG | 28AWG | ||
| Construction | 7/0.05mm | 7/0.08mm | 7/0.127mm | ||
| Strand Dia.(Ref.) | 0.15mm | 0.24mm | 0.38mm | ||
| Insulation | PFA | FEP | FEP | ||
| Nom.Thickness | 0.10mm | 0.10mm | 0.30mm | ||
| Insulation Dia. | 0.40±0.05mm | 0.45±0.05mm | 1.10±0.08mm | ||
| Insulation colour | A.natural | B1.red B2.yellow B3.blue | C1.natural | ||
| Sprial | Tinned copper,0.05mm,≥90% | / | Tinned copper,0.08mm,≥90% | ||
| Inner Jacket | PFA | / | FEP | ||
| Nom.Thickness | 0.05mm | / | 0.05mm | ||
| O.D. | 0.64±0.08mm | / | 1.40±0.08mm | ||
| Color | white | / | blue | ||
| Filler | Optional | ||||
| Material | Al-mylar(Face out) | ||||
| Drain | Tinned copper stranded,7/0.127mm | ||||
| Assembly | 2Coax×36AWG+3C×32AWG+1Coax×28AWG+AD | ||||
| Braid | Tinned copper,0.08mm,≥90% | ||||
| Jacket | TPV (Santoprene 8281-65MED)(biocompatible) | ||||
| Nom.Thickness | 0.76mm | ||||
| O.D. | 4.00±0.20mm | ||||
| Color | black | ||||
Product Specifications
Product Description
Products are widely used for medical wire harness.
Key Features
- Application: Internal wiring or external interconnection of electronic equipment
- Application standard: According to customer requirement
- Excellent insulation performance with stable chemical properties
- Teflon insulation
- Biocompatible and environmentally friendly
Construction Details
- Tinned or bare copper, stranded or single conductor (2-50 conductors) 36-16AWG
- Teflon insulation
- Max core wire size: 20AWG, available in flat or round
- Tinned or bare copper wire, spiral or braid shield or Al-mylar wrapped shield
- PVC jacket
Technical Parameters
- Rated temperature: 80ºC
- Rated Voltage: 30V
| Electric Performance | ||||||
| Rated Temperature | 80℃ | |||||
| Voltage rating | 30V | |||||
| Max.conductor DC resistance(20℃) | A:1500Ω/km B:595Ω/km C:239Ω/km | |||||
| Dielectric Strength AC | 0.5kV/1min | |||||
| Impedance: | A&C:50±5Ω | |||||
| Capacitance | A:100±15pF/m | |||||
| B:Nom.169pF/m | ||||||

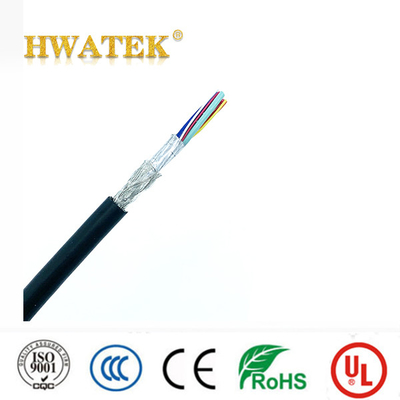

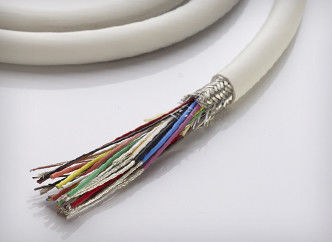

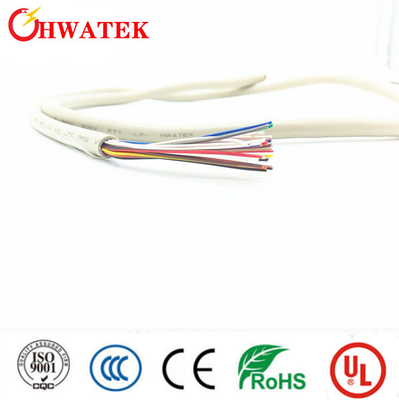

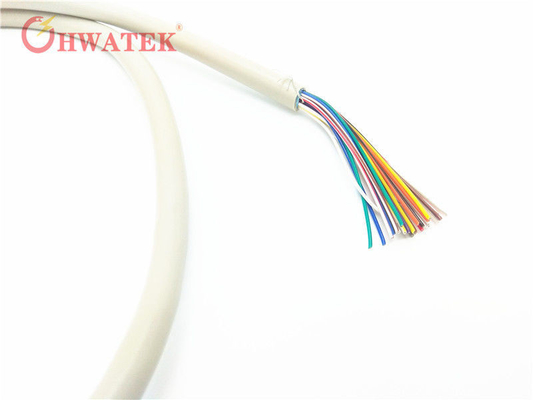

Product Images
Company Profile
Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters. In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters. With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
Certifications
Production Process
Shipping
Frequently Asked Questions
Q: What can you supply?
A: We produce consumer electronics wires, hook up wires, industrial cables, robot cables, EV charging cables, new/green energy cables.
Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
Q: Can we get samples before ordering?
A: Yes, we are willing to arrange samples for you.
Q: What's your lead time?
A: Normally we can finish your orders in 2-3 weeks, and 5-6 weeks in peak season.
Q: How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final inspection before shipment.
