Electric Performance

Rated Temperature

Voltage rating

Max.conductor DC resistance(20℃)

A:150Ω/KM B:36.7Ω/KM

Dielectric Strength AC

Name: UL20276 TYPE PVC Jacket PVC insulation Tinned Copper Strande1P ×26 AWG + 6C×20 AWG 80℃ 30V Cable
Brand: NANTONG HWATEK WIRES AND CABLE CO.,LTD.
SKU: UL20276
Price: 0.20 USD
Availability: InStock

Large Image : UL20276 TYPE PVC Jacket PVC insulation Tinned Copper Strande1P ×26 AWG + 6C×20 AWG 80℃ 30V Cable

Product Details:

Place of Origin:	China
Brand Name:	HWATEK
Certification:	ISO9001, CE, RoHS
Model Number:	UL20276

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	Negotiable
Packaging Details:	Reels or rolls
Delivery Time:	4 Weeks
Payment Terms:	T/T
Supply Ability:	1000KM/ month

Contact Now

Detailed Product Description

Conductor Material:	Tinned Copper Stranded	Sheath Material:	PVC
Insulation Material:	PVC	Rated Voltage:	30V
Rated Temperature:	80ºC	Max Conductor Resistance:	A:150Ω/KM B:36.7Ω/KM
Cable Voltage Withstand:	0.5KV	Spec:	HT2502545
Highlight:	30km/Day Production Capacity EV Charging Cable , Multicore EV Charging Cable , Copper Conductor EV Charging Cable

UL20276 TYPE PVC Jacket PVC insulation Tinned Copper Strande1P ×26 AWG + 6C×20 AWG 80℃ 30V Cable

Product Specifications

Construction

Conductor	A:Tinned copper standard	B:Tinned copper standard
Cross section	1P×26AWG	6C×20AWG
Construction	7/0.16mm	19/0.20mm
Strand Dia.(Ref.)	0.48mm	1.00mm
Insulation	PVC	PVC
Nom.Thickness	0.23mm	0.23mm
Min.Thickness	0.18mm	0.18mm
Insulation Dia.	1.00±0.08mm	1.50±0.10mm
Insulation colour	A.green&white	B1.black B2.brown B3.red B4.orange B5.yellow B6.blue
Twisted(Ref.)	2.00mm
Assembly	1P×26AWG+6C×20AWG
Filler	/
Material	Al-mylar(facing out)
Drain	Tinned copper standard,7/0.16mm
Braid	Tinned copper,0.10mm 80%
Jacket	PVC
Nom.Thickness	0.51mm
Min.Thickness	0.43mm
Outer Dia.	6.50±0.30mm
Colour	Black

Technical Specifications

Mechanical Performance

					Jacket
Material					PVC
Tensile strength					10.3MPa
Elongation					100%
Aged condition					113℃×168H
Percent of original tensile strength					≥70%
Percent of original elongation					≥65%

UL758-E258652-20060111A-CertificateofCompliance(2)...

Product character:

Flame rated : VW-1

Tensile strength:≥10.3MPa Elongation:≥100%

Aged condition:113℃×168H

Percent of original tensile strength: ≥70%

Percent of original elongation: ≥65%

Company Profile

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters. In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.

With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.

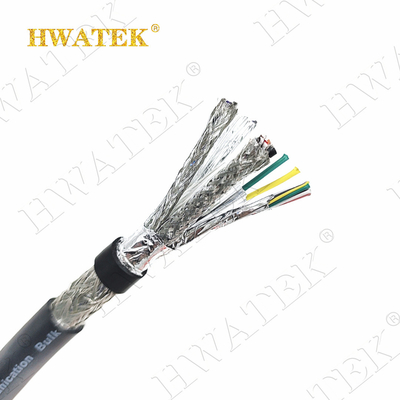

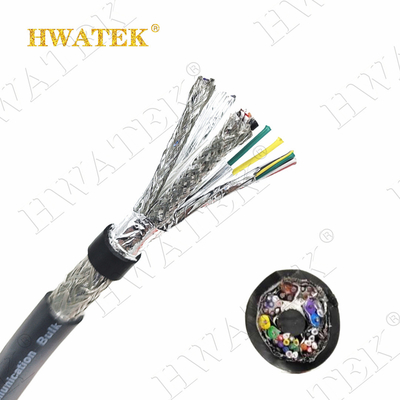

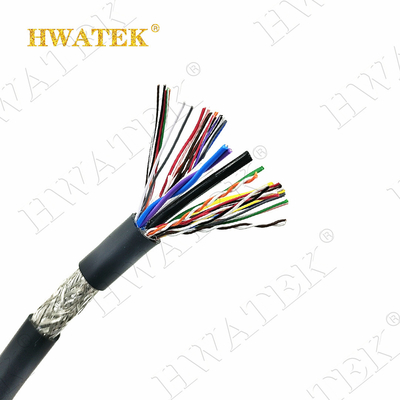

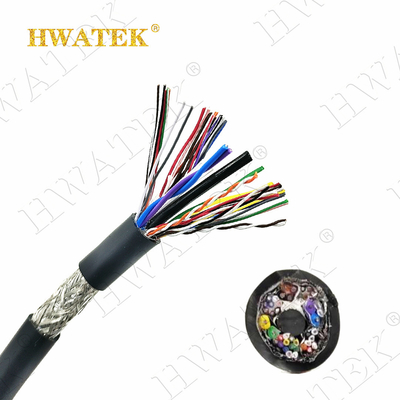

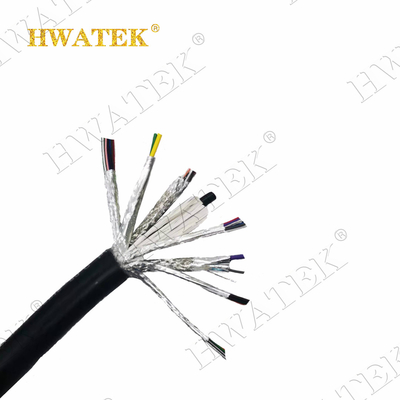

Product Images
