1000V EV Charging Cable with Copper Conductor TPE Sheath and Flame Retardant Properties

Large Image : 1000V EV Charging Cable with Copper Conductor TPE Sheath and Flame Retardant Properties

Product Details:

Certification:	ISO9001, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000

Contact Now

Detailed Product Description

Rated Voltage:	DC 1000V	Rated Temperature:	90ºC
Conductor Material:	Bare Copper Stranded	Sheath Material:	TPE
Insulation Material:	Thermoplastic	Cable Assembly:	2C×70mm2+1C×25mm2+2C×4mm2+12C×0.75mm2
Max DC Resistance:	A: 0.272Ω/km, B: 0.78Ω/km, C: 4.95Ω/km, D: 26Ω/km	Voltage Withstand Test:	A&B&C: DC 8.4kV/15min, D,E: DC 3.6kV/15min
Tensile Strength:	≥10MPa	Elongation:	≥250%
Aged Condition:	135±1ºC×168h	Jacket Thickness:	Nom. 4.20mm, Min. 3.47mm
Cable Diameter:	37.60+0.60/-1.00mm	Transport Package:	220m/Roll
Production Capacity:	30km/Day
Highlight:	Copper Conductor EV Charging Cable , TPE Sheath Electric Vehicle Charging Cable , Flame Retardant EV Power Cable

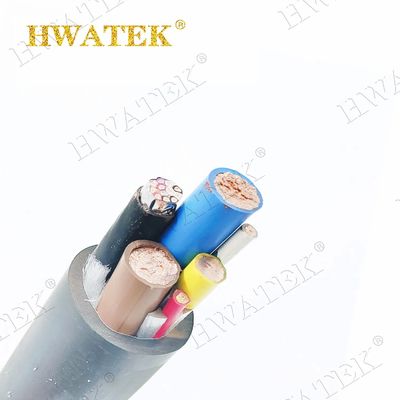

1000V EV Cable 2c× 70mm² + 1c× 25mm² + 2c× 4mm² + 12c× 0.75mm²

Product Specifications

ITEM	A: 2C×70mm²	B: 1C×25mm²	C: 2C×4.0mm²	D: 12C×0.75mm²
CONDUCTOR Material	Bare copper stranded
Size	2257/0.20mm	798/0.20mm	224/0.15+10/1#Tinsel+1000D Kevlar	40/0.15+10/0.19mm#Tinsel+200D Kevlar
O.D.(Ref)	11.80mm	7.10mm	2.70mm	1.30mm
INSULATION Material	Thermoplastic
Nom. thickness	1.40mm	1.20mm	1.00mm	0.50mm
Min.thickness at any point	1.16mm	0.98mm	0.80mm	0.35mm
O.D.	14.60±0.40mm	9.50±0.30mm	4.70±0.20mm	2.30±0.15mm
TWISTED Filler	/	/	/	Cotton
Material	/	/	/	Al-mylar(Foil facing out)
BRAIDING Material	/	/	/	Tinned copper
Size	/	/	/	0.12mm,Min 60%
CABLING Filler	PP rope
Material	Nonwoven tape
Assembly	2C×70mm²+1C×25mm²+2C×4mm²+12C×0.75mm²
JACKET Material	TPE
Nom. Thickness	4.20mm
Min.thickness at any point	3.47mm
O.D.	37.60+0.60/-1.00mm

Electrical Characteristics & Physical Properties

Rated voltage	DC 1000V	Tensile strength	≥10MPa
Rated temperature	90ºC	Elongation	≥250%
Max. DC conductor resistance(20ºC)	A: 0.272Ω/km B: 0.78Ω/km C: 4.95Ω/km D: 26Ω/km	Aged condition	135±1ºC×168h
Voltage withstand test	A&B&C: DC 8.4kV/15min D,E: DC 3.6kV/15min	Percent of original tensile strength	≤±25%
		Percent of original elongation	≤±25%
