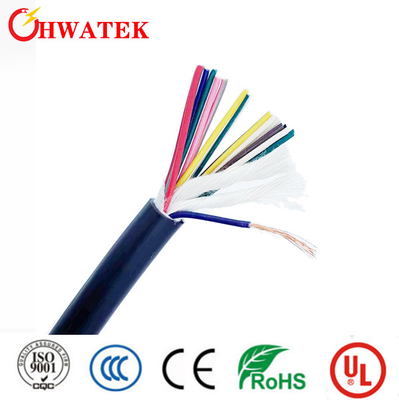

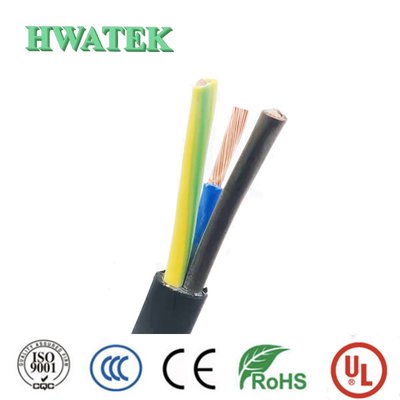

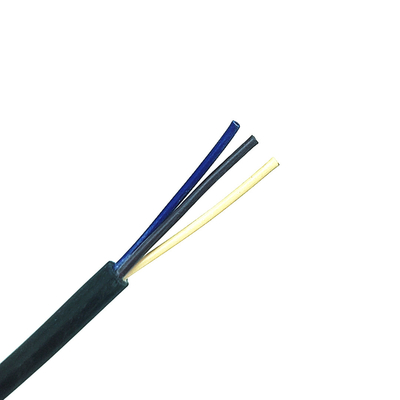

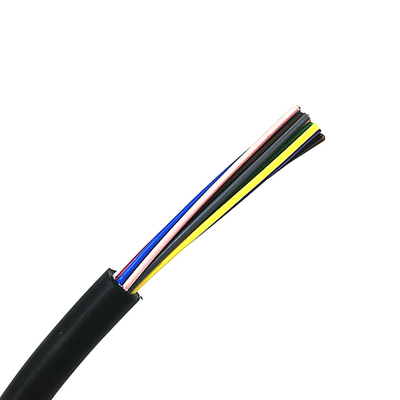

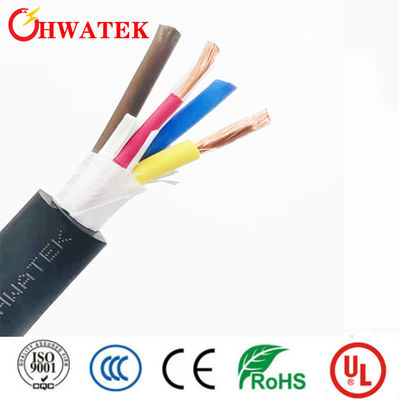

UL13 Power Limited Circuit Cables Type CL2 Bare Copper Stranded Conductor unshield 150 V 75 degree 4 cores 18 AWG cable

UL13 Power Limited Circuit Cables Type CL2 Bare Copper Stranded Conductor unshield 150 V 75 degree 4 cores 18 AWG cable
UL13 Power Limited Circuit Cables Type CL2 Bare Copper Stranded Conductor unshield 150 V 75 degree 4 cores 18 AWG cable

Large Image :  UL13 Power Limited Circuit Cables Type CL2 Bare Copper Stranded Conductor unshield 150 V 75 degree 4 cores 18 AWG cable

Product Details:
Place of Origin: China
Brand Name: HWATEK
Certification: UL
Model Number: CL2
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: negotiable
Packaging Details: Reels or rolls
Delivery Time: 4 Weeks
Payment Terms: T/T
Supply Ability: 1000KM/ month
Contact Now
Detailed Product Description
Rated Voltage: 150V Rated Temperature: 75ºC
Conductor Material: Bare Copper Stranded Conductor Size: 16/0.254mm
Insulation Material: SR-PVC Insulation Thickness: 0.23mm
Min Insulation Thickness: 0.2mm Outer Diameter: 1.70±0.10mm
Jacket Material: PVC Jacket Thickness: 0.84mm
Min Jacket Thickness: 0.66mm Cable Outer Diameter: 6.00±0.30mm
Max DC Resistance: 21.4Ω/km Tensile Strength: ≥10.3MPa
Elongation: ≥100% Spec: HT2504808
Highlight:

Flame Test GB/T 18380.12 EV Charging Cable

,

Outdoor AC EV Power Charger Cable

,

Bare Copper Stranded Electric Vehicle Charging Cable

UL13 Power Limited Circuit Cables Type CL2 Bare Copper Stranded Conductor unshield 150 V 75 degree 4 cores 18 AWG cable
UL13 Power Limited Circuit Cables Type CL2 Bare Copper Stranded Conductor unshield 150 V 75 degree 4 cores 18 AWG cable 0
Product Specifications
Construction
Conductor Bare copper solid
Cross section 18AWG
Construction 16/0.254mm
Strand Dia. 1.18mm
Insulation SR-PVC
Nom.Thickness 0.23mm
Min.Thickness 0.20mm
Insulation Dia. 1.70±0.10mm
Insulation colour 1.red 2.white 3.green 4.blue
Filler optional
Assembly 4Cx18AWG
Jacket PVC
Nom.Thickness 0.84mm
Min.Thickness 0.66mm
Outer Dia. 6.00±0.30mm
Colour Per request



Conductor Bared copper stranded
Cross section 18AWG
Construction 16/0.254mm
Elongation ≥100%
Aged condition 16/0.254mm
Insulation SR-PVC
Nom.Thickness 0.23 mm
Min.Thickness 0.2 mm
Insulation Dia.1.70±0.10mm

Insulation: :1.red 2.white 3.green 4.blue

Jacket: PVC
Reference standard:UL
Nom.Thickness 0.84 mm
Outer Dia. 0.66mm
Colour per request
Performance Characteristics

Electric Performance
Rated Temperature 75℃
Voltage rating 150V
Max.conductor DC resistance(20℃) 21.4Ω/km
Dielectric Strength AC 2.0kV/1min

UL13 Power Limited Circuit Cables Type CL2 Bare Copper Stranded Conductor unshield 150 V 75 degree 4 cores 18 AWG cable 1
Company Profile
UL13 Power Limited Circuit Cables Type CL2 Bare Copper Stranded Conductor unshield 150 V 75 degree 4 cores 18 AWG cable 2
Founded in 2004 with 16 years of development, we Hwatek established our new plant Nantong Hwatek Wires & Cable Co., Ltd in 2020. Located in Nantong City, Jiangsu Province, our new plant covers 34,000 square meters with 100 million investment.
We are dedicating to R&D and produce various wires and cables like industrial control, communication instruments, medical control, green energy EV and special wires and cables etc. OEM & ODM is also available.
Our Capabilities
  • Produce cables with following insulation & jacket: PVC, SR-PVC, XL-PVC(CL PVC), XLPE, FRPE, TPE, FEP etc.
  • Produce cables with temperature range from -40 to 200 degree temperature
  • Produce cables with voltage range from 30V to 1200V DC
  • Flamability rating: VW-1, FT1, FT2
  • 300+ different UL Style approval from UL Authority
  • QMS Certification: ISO9001-2015, IATF16949-2016, ISO13485-2016
  • Product Certification: CCC, UL, CSA, ETL, CE
  • Support drop-in equivalent to any brand of cables and custom made cables
Certifications
UL13 Power Limited Circuit Cables Type CL2 Bare Copper Stranded Conductor unshield 150 V 75 degree 4 cores 18 AWG cable 3
Production Process
UL13 Power Limited Circuit Cables Type CL2 Bare Copper Stranded Conductor unshield 150 V 75 degree 4 cores 18 AWG cable 4
Shipping & Logistics
UL13 Power Limited Circuit Cables Type CL2 Bare Copper Stranded Conductor unshield 150 V 75 degree 4 cores 18 AWG cable 5
Frequently Asked Questions
Q: What can you supply?
A: We produce consumer electronics wires, hook up wires, industrial cables, robot cables, EV charging cables, new/green energy cables.
Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
Q: Can we get samples before ordering?
A: Yes, we are willing to arrange samples for you.
Q: What's your lead time?
A: Normally we can finish your orders in 2-3 weeks, and 5-6 weeks in peak season.
Q: How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final inspection before shipment.
Major Customers
UL13 Power Limited Circuit Cables Type CL2 Bare Copper Stranded Conductor unshield 150 V 75 degree 4 cores 18 AWG cable 6
