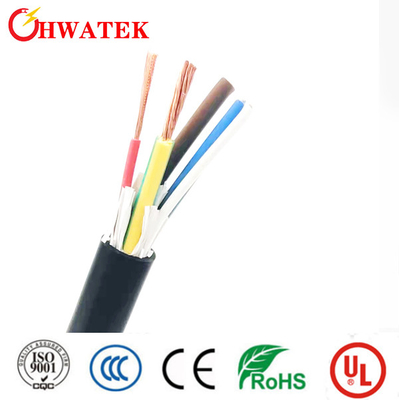

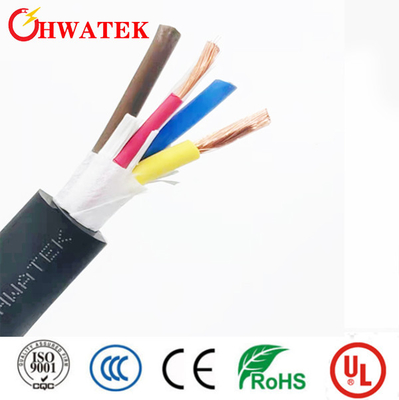

UL13 Power Limited Circuit Cables Type CL2 Bare Copper Stranded Conductor unshield 150 V 75 degree 8 cores 18 AWG cable
Basic Properties
Place of Origin:
China
Brand Name:
HWATEK
Certification:
UL
Model Number:
CL2
Trading Properties
Minimum Order Quantity:
1000
Price:
negotiable
Standard Packaging:
Reels or rolls
Delivery Time:
4 Weeks
Payment Terms:
T/T
Supply Ability:
1000KM/ month
Product Summary
UL13 Power Limited Circuit Cables Type CL2 Bare Copper Stranded Conductor unshield 150 V 75 degree 8 cores 18 AWG cable Product Specifications Construction Conductor Bare copper starned Cross section 18AWG Construction 16/0.254mm Strand Dia. 1.18mm Insulation SR-PVC Nom.Thickness 0.23mm Min...
Product Details
Rated Voltage:
150V
Rated Temperature:
75ºC
Conductor Material:
Bare Copper Stranded
Conductor Size:
16/0.254mm
Insulation Material:
SR-PVC
Insulation Thickness:
0.23mm
Min Insulation Thickness:
0.2mm
Outer Diameter:
1.70±0.10mm
Jacket Material:
PVC
Jacket Thickness:
0.84mm
Min Jacket Thickness:
0.66mm
Cable Outer Diameter:
7.6±0.30mm
Max DC Resistance:
21.4Ω/km
Tensile Strength:
≥10.3MPa
Elongation:
≥100%
Spec:
HT2504809
Product Description
UL13 Power Limited Circuit Cables Type CL2 Bare Copper Stranded Conductor unshield 150 V 75 degree 8 cores 18 AWG cable
Product Specifications
| Construction | ||||
| Conductor | Bare copper starned | |||
| Cross section | 18AWG | |||
| Construction | 16/0.254mm | |||
| Strand Dia. | 1.18mm | |||
| Insulation | SR-PVC | |||
| Nom.Thickness | 0.23mm | |||
| Min.Thickness | 0.20mm | |||
| Insulation Dia. | 1.70±0.10mm | |||
| Insulation colour | 1.white 2.red 3.green 4.blue 5.yellow 6.brown 7.orange 8.black | |||
| Filler | optional | |||
| Assembly | 8Cx18AWG | |||
| Jacket | PVC | |||
| Nom.Thickness | 0.84mm | |||
| Min.Thickness | 0.66mm | |||
| Outer Dia. | 7.6±0.30mm | |||
| Colour | Per request | |||
Conductor Bared copper stranded
Cross section 18AWG
Construction 16/0.254mm
Elongation ≥100%
Aged condition 16/0.254mm
Insulation SR-PVC
Nom.Thickness 0.23 mm
Min.Thickness 0.2 mm
Insulation Dia.1.70±0.10mm
Insulation: :1.white 2.red 3.green 4.blue 5.yellow 6.brown 7.orange 8.black
Jacket: PVC
Reference standard:UL
Nom.Thickness 0.84 mm
Outer Dia. 0.66mm
Colour per request
Performance Characteristics
| Electric Performance | ||||||
| Rated Temperature | 75℃ | |||||
| Voltage rating | 150V | |||||
| Max.conductor DC resistance(20℃) | 21.4Ω/km | |||||
| Dielectric Strength AC | 2.0kV/1min | |||||
Company Profile
Founded in 2004 with 16 years of development, we Hwatek established our new plant Nantong Hwatek Wires & Cable Co., Ltd in 2020. Located in Nantong City, Jiangsu Province, our new plant covers 34,000 square meters with 100 million investment.
We are dedicating to R&D and produce various wires and cables like industrial control, communication instruments, medical control, green energy EV and special wires and cables etc. OEM & ODM is also available.
Our Capabilities
- Produce cables with following insulation & jacket: PVC, SR-PVC, XL-PVC(CL PVC), XLPE, FRPE, TPE, FEP etc.
- Produce cables with temperature range from -40 to 200 degree temperature
- Produce cables with voltage range from 30V to 1200V DC
- Flamability rating: VW-1, FT1, FT2
- 300+ different UL Style approval from UL Authority
- QMS Certification: ISO9001-2015, IATF16949-2016, ISO13485-2016
- Product Certification: CCC, UL, CSA, ETL, CE
- Support drop-in equivalent to any brand of cables and custom made cables
Certifications
Production Process
Shipping & Logistics
Frequently Asked Questions
Q: What can you supply?
A: We produce consumer electronics wires, hook up wires, industrial cables, robot cables, EV charging cables, new/green energy cables.
Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
Q: Can we get samples before ordering?
A: Yes, we are willing to arrange samples for you.
Q: What's your lead time?
A: Normally we can finish your orders in 2-3 weeks, and 5-6 weeks in peak season.
Q: How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final inspection before shipment.
