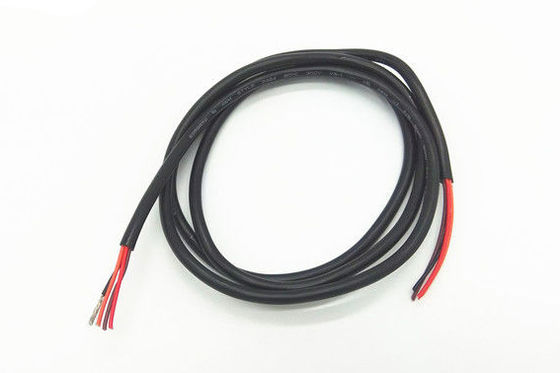

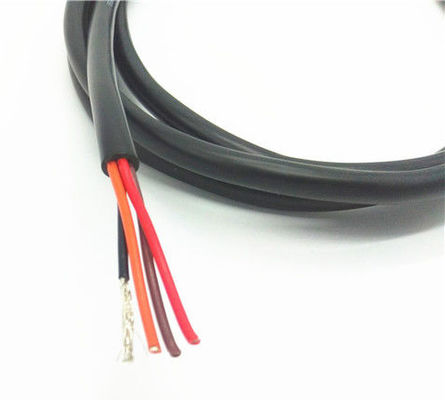

UL20855 PP Insulation FRPE Jacket 5C×26AWG+A 80℃ 30V Tinned copper stranded Cable
Basic Properties
Place of Origin:
China
Brand Name:
HWATEK
Certification:
ISO9001, CE, CCC, RoHS
Model Number:
UL20855
Trading Properties
Minimum Order Quantity:
1000
Price:
Negotiable
Standard Packaging:
Reels or rolls
Delivery Time:
4 Weeks
Payment Terms:
T/T
Supply Ability:
1000KM/ month
Product Summary
UL20855 PP Insulation FRPE Jacket 5C×26AWG+A 80℃ 30V Tinned copper stranded Cable Product Specifications Conductor Tinned copper stranded Cross section 5C×26AWG Construction 7/0.16mm Strand Dia.(Ref) 0.48mm Insulation PP Nom.Thickness 0.20mm Min.Thickness 0.18mm Insulation Dia. 1.00±0.08mm ...
Product Details
Model NO.:
UL20855
Sheath Material:
FRPE
Insulation Material:
PP
Material Shape:
Round Wire
Qty/Roll:
305m,610m Or As Request
Rated Temperature:
80ºC
Rated Voltage:
30v
Conductor Size:
26AWG
Conductor Type:
Tinned Or Bare Copper, Stranded Or Single
Max Conductor Resistance:
150Ω/km
Spec:
HT2504652
Product Description
UL20855 PP Insulation FRPE Jacket 5C×26AWG+A 80℃ 30V Tinned copper stranded Cable
Product Specifications
| Conductor | Tinned copper stranded | |||
| Cross section | 5C×26AWG | |||
| Construction | 7/0.16mm | |||
| Strand Dia.(Ref) | 0.48mm | |||
| Insulation | PP | |||
| Nom.Thickness | 0.20mm | |||
| Min.Thickness | 0.18mm | |||
| Insulation Dia. | 1.00±0.08mm | |||
| Insulation colour | 1.red, 2.black 3.blue 4.green 5.white | |||
| Material | Al-mylar,face out,≥25% | |||
| Cabling | 5C×26AWG+A | |||
| Jacket | FRPE | |||
| Nom.Thickness | 0.76mm | |||
| Min.Thickness | 0.61mm | |||
| Outer Dia. | 4.50±0.15mm | |||
| Colour | Yellow pantone 101C | |||
Products are used in industrial control system, household appliances, office system, and consumer electronics.
Key Features
- Application: Internal wiring or external interconnection of electronic equipment
- Application standard: UL758 & UL1581 & CSA C22.2 No.210
- Excellent insulation performance, stable chemical properties
- Pass UL VW-1 and CSA FT1 vertical flame test
- Heat resistance, anti-acid and environmental protection
Construction
- Tinned or bare copper, stranded or single conductor, 30-4/0AWG
- PVC insulation
- Two or more single-core wire are twisted
- Tinned or bare copper wire, spiral or braid shield or Al-mylar wrapped shield
- PVC jacket UV resistant
Technical Parameters
- Rated temperature: 80ºC
- Rated Voltage:30 V
Product Specifications Table
| Electric Performance | ||||||
| Rated Temperature | 80℃ | |||||
| Voltage rating | 30V | |||||
| Max.conductor DC resistance(20℃) | 150Ω/km | |||||
| Dielectric Strength AC | 0.5 KV/min | |||||
| Mechanical Performance | ||||||
| Jacket | ||||||
| Material | FRPE | |||||
| Tensile strength | ≥8.27MPa | |||||
| Elongation | ≥100% | |||||
| Aged condition | 113±1℃×168h | |||||
| Percent of original tensile strength | ≥75% | |||||
| Percent of original elongation | ≥75% | |||||
Company Profile
Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
Certificates
Production Progress
Shipping
Frequently Asked Questions
Q: What can you supply?
A: We do produce consumer electronics wires, hook up wires, industrial cables, robot cables, EV charging cables, new/green energy cables.
Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
Q: Can we get samples before ordering?
A: Yes, we are willing to arrange samples for you.
Q: What's your lead time?
A: Normally we can finish your orders in 2-3 weeks, and 5-6 weeks in peak season.
Q: How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final Inspection before shipment.
