UL2517 13P×24AWG+AB PVC Insulation Industrial Flexible Cable with 105℃ Rating and Tinned Copper Stranded Conductor

Large Image : UL2517 13P×24AWG+AB PVC Insulation Industrial Flexible Cable with 105℃ Rating and Tinned Copper Stranded Conductor

Product Details:

Place of Origin:	China
Brand Name:	HWATEK
Certification:	ISO9001, CE, RoHS
Model Number:	UL2517

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	Negotiable
Packaging Details:	Reels or rolls
Delivery Time:	4 Weeks
Payment Terms:	T/T
Supply Ability:	1000KM/ month

Contact Now

Detailed Product Description

Conductor Material:	Tinned Copper Stranded	Sheath Material:	PVC
Insulation Material:	PVC	Rated Voltage:	300V
Rated Temperature:	105ºC	Max Conductor Resistance:	94.2Ω/km
Cable Voltage:	AC 2.0kV/1min	Spec:	HT2502246
Highlight:	13P×24AWG+AB Industrial Flexible Cable , 105℃ UL2517 Cable , PVC Insulation Tinned Copper Stranded Cable

UL2517 13P×24AWG+AB PVC Jacket PVC Jacket Tinned Copper Stranded 105℃ 300V Cable

Product Specifications

Construction
Conductor			Tinned copper stranded
Cross section			24AWG
Construction			7/0.20mm
Strand Dia.			0.60mm
Insulation			PVC
Nom.Thickness			0.23mm
Min.Thickness			0.18mm
Insulation Dia.			1.10±0.10mm
Insulation colour			1.White&Black 2.White&Brown 3.White&Red
			4.White&Orange 5.White&Yellow 6.White&Green
			7.White&Blue 8.White&Violet 9.White&Gray
			10.Black&Brown 11.Black&Red 12.Black&Orange
			13.Black&Yellow
Filler			Optional
Material			Al-mylar,≥25%
Assembly			13P×24AWG+A
Braid			Tinned copper,0.12mm,≥75%
Jacket			PVC
Nom.Thickness			0.76mm
Min.Thickness			0.61mm
Outer Dia.			9.90±0.30mm
Colour			Per request

Technical Specifications

Electric Performance

Rated Temperature				105℃
Voltage rating				300V
Max.conductor DC resistance(20℃)				94.2Ω/km
Dielectric Strength AC				2.0kV/1min
Mechanical Performance

				Jacket
Material				PVC
Tensile strength				≥10.3MPa
Elongation				≥100%
Aged condition				136±1℃×168h
Percent of original tensile strength				≥70%
Percent of original elongation				≥65%

UL758-E258652-20060111A-CertificateofCompliance(2)...

Product character:

Flame rated : VW-1

Tensile strength:≥10.3MPa Elongation:≥100%

Aged condition:113℃×168H

Percent of original tensile strength: ≥70%

Percent of original elongation: ≥65%

Company Profile

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters. In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.

With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.

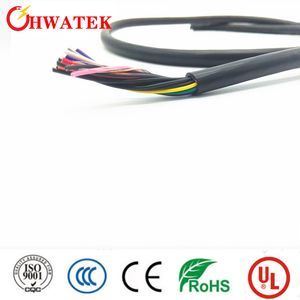

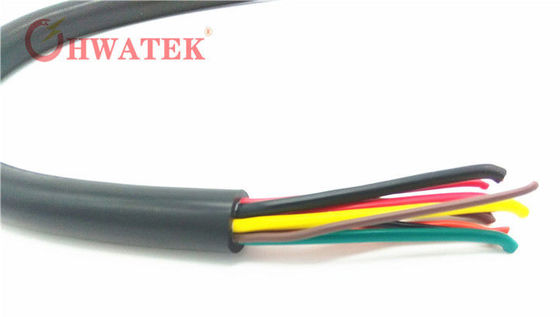

Product Images
