UL20276 20P×28AWG+W Industrial Flexible Cable with 80℃ Rated Temperature and 30V Rated Voltage

Large Image : UL20276 20P×28AWG+W Industrial Flexible Cable with 80℃ Rated Temperature and 30V Rated Voltage

Product Details:

Place of Origin:	China
Brand Name:	HWATEK
Certification:	ISO9001, CE, RoHS
Model Number:	UL20276

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	Negotiable
Packaging Details:	Reels or rolls
Delivery Time:	4 Weeks
Payment Terms:	T/T
Supply Ability:	1000KM/ month

Contact Now

Detailed Product Description

Conductor Material:	Tinned Copper Stranded	Sheath Material:	PVC
Insulation Material:	PVC	Rated Voltage:	30V
Rated Temperature:	80ºC	Max Conductor Resistance:	239Ω/km
Cable Voltage:	0.50kV/1mi	Spec:	HT2505407
Highlight:	80℃ Rated Temperature Industrial Flexible Cable , 30V Rated Voltage UL20276 Cable , 20P×28AWG+W Construction Tinned Copper Stranded Cable

UL20276 20P×28AWG+W PVC Jacket PVC Jacket Tinned Copper Stranded 80℃ 30V Cable

Product Specifications

Construction

Conductor		Tinner copper stranded
Cross section		28AWG
Construction		7/0.127mm
Strand Dia.		0.38mm
Insulation		SR-PVC
Nom.Thickness		0.23mm
Min.Thickness		0.18mm
Insulation Dia.		0.90±0.08mm
Insulation colour		See the colour table
Twisted		1.80mm
Filler		Optional
Material		Non-woven
Assembly		20P×28AWG+A
Jacket		PVC
Nom.Thickness		0.76mm
Min.Thickness		0.61mm
O.D.		9.80±0.40mm
Colour		Per request

Technical Specifications

Electric Performance


Rated Temperature				80℃
Voltage rating				30V
Max.conductor DC resistance(20℃)				239Ω/km
Dielectric Strength AC				0.50kV/1min
Mechanical Performance

				Jacket
Material				PVC
Tensile strength				≥10.3MPa
Elongation				≥100%
Aged condition				113±1℃×168h
Percent of original tensile strength				≥70%
Percent of original elongation				≥65%

UL758-E258652-20060111A-CertificateofCompliance(2)...

Product character:

Flame rated : VW-1

Tensile strength:≥10.3MPa Elongation:≥100%

Aged condition:113℃×168H

Percent of original tensile strength: ≥70%

Percent of original elongation: ≥65%

Company Profile

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters. In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.

With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.

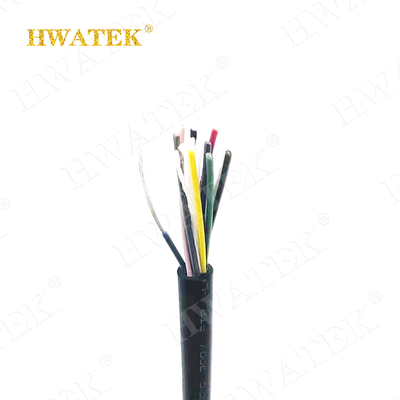

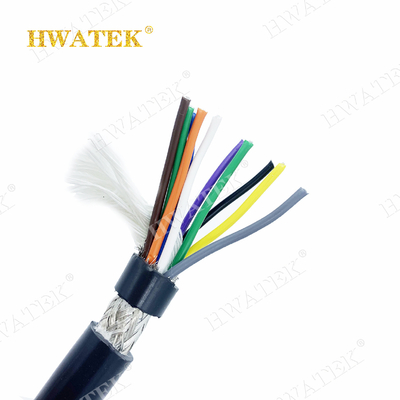

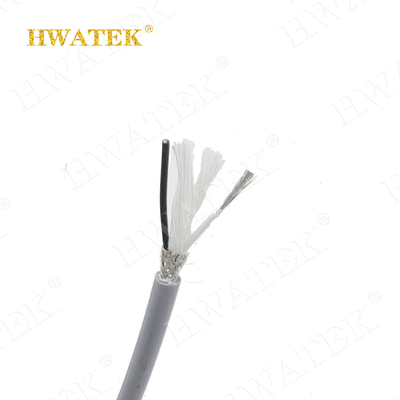

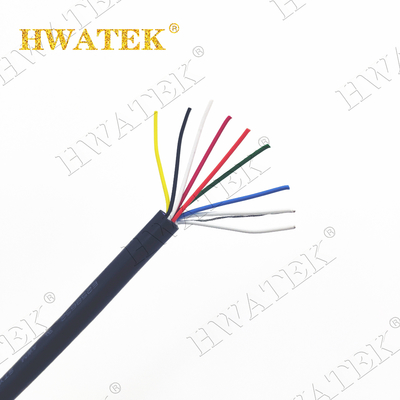

Product Images
