3C×16AWG 105℃ Rated Temperature Industrial Flexible Cable with PVC Insulation and Bare Copper Stranded Conductor

Large Image : 3C×16AWG 105℃ Rated Temperature Industrial Flexible Cable with PVC Insulation and Bare Copper Stranded Conductor

Product Details:

Place of Origin:	China
Brand Name:	HWATEK
Certification:	ISO9001, CE, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	Negotiable
Packaging Details:	Reels or rolls
Delivery Time:	4 Weeks
Payment Terms:	T/T
Supply Ability:	1000KM/ month

Contact Now

Detailed Product Description

Conductor Material:	Tinned Copper Stranded	Sheath Material:	PVC
Insulation Material:	PVC	Rated Voltage:	600V
Rated Temperature:	105ºC	Max Conductor Resistance:	14.1Ω/km
Cable Voltage:	AC 2.0kV/1min	Spec:	HT2505406
Highlight:	3C×16AWG Industrial Flexible Cable , 105℃ PVC Jacket Cable , Rated Temperature Bare Copper Stranded Cable

STO 3C×16AWG(1.31mm2) 105℃ 600V PVC Insulation PVC Jacket Bare copper stranded Cable

Product Specifications

ITEM		4C×16AWG(26/0.254B)
CONDUCTOR	Material	Bare copper stranded
	Size	26/0.254mm
	O.D.(Ref)	1.49mm
INSULATION	Material	PVC
	Min.average thickness	0.76mm
	Min.thickness at any point	0.69mm
	O.D.	3.30±0.20mm
CABLING	Material	Nonwoven tape
	Assembly	3C×16AWG(26/0.254B)
JACKET	Material	PVC
	Min.average thickness	1.52mm
	Min.thickness at any point	1.22mm
	O.D.	11.60±0.40mm

Technical Specifications

ELECTRICAL CHARACTERISTICS
Rated voltage:600V
Rated temperature:105℃
Max. DC conductor resistance(20℃): 14.1Ω/km
Voltage withstand test:AC 2.0kV/1min
PHYSICAL PROPERTIES
Tensile strength:			≥10.3MPa
Elongation:			≥100%
Aged condition:			136±1℃×168h
Percent of original tensile strength:			≥85%
Percent of original elongation:			≥45%

UL758-E258652-20060111A-CertificateofCompliance(2)...

Product character:

Flame rated : VW-1

Tensile strength:≥10.3MPa Elongation:≥100%

Aged condition:113℃×168H

Percent of original tensile strength: ≥70%

Percent of original elongation: ≥65%

Company Profile

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters. In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.

With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.

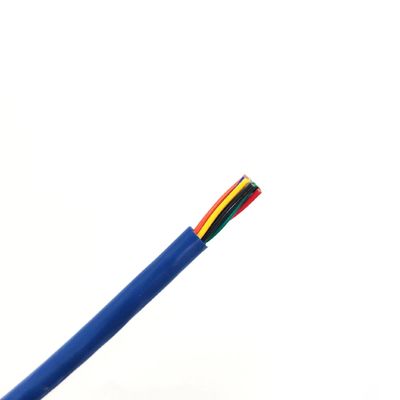

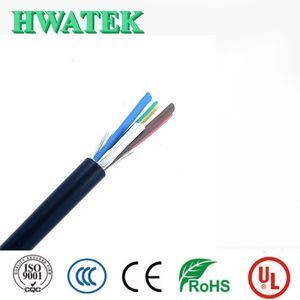

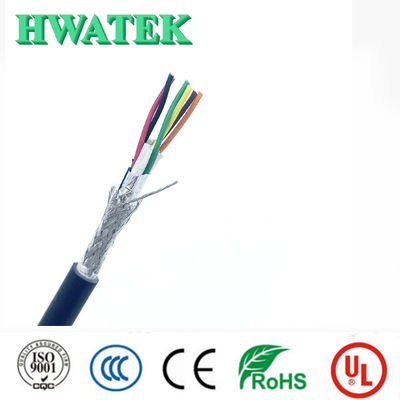

Product Images
