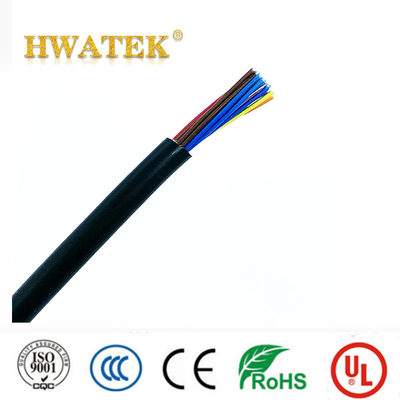

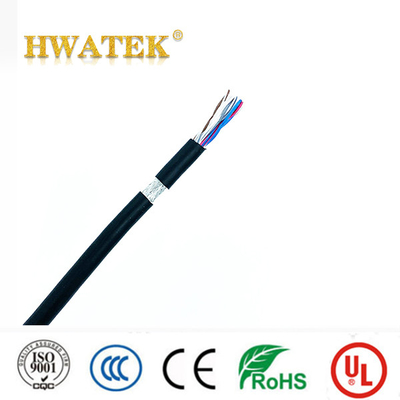

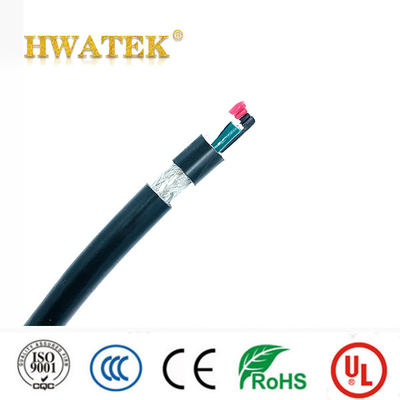

UL20276 Industrial Flexible Cable with Flame Rated VW-1 ETFE Insulation and Oil-Resistant PVC Jacket
Product Details
Flame Rated Industrial Flexible Cable
,Oil-Resistant UL20276 Cable
,UL Certified ETFE Insulation Cable
| ITEM | |||||||||
| CONDUCTOR | Material | Tin plated copper alloy | |||||||
| Size | 49/0.05mm | ||||||||
| O.D.(Ref) | 0.45mm | ||||||||
| INSULATION | Material | ETFE | |||||||
| Min.average thickness | 0.18mm | ||||||||
| Min.thickness at any point | 0.13mm | ||||||||
| O.D. | 0.85±0.08mm | ||||||||
| TWISTED | O.D.(Ref) | 1.70mm | |||||||
| CABLING | Material | Non-woven,≥25% | |||||||
| Assembly | 3P×28AWG+W | ||||||||
| Braid | Material | Tin plated copper | |||||||
| Size | 0.10mm,≥80% | ||||||||
| JACKET | Material | PVC(oil-resistant) | |||||||
| Min.average thickness | 0.76mm | ||||||||
| Min.thickness at any point | 0.61mm | ||||||||
| O.D. | 5.50±0.20mm | ||||||||
| ELECTRICAL CHARACTERISTICS | ||||||
| Rated voltage:30V | ||||||
| Rated temperature:80℃ | ||||||
| Max. DC conductor resistance(20℃):296.9Ω/km | ||||||
| Voltage withstand test:0.5kv/1min | ||||||
| Insulation resistance:100MΩ·km | ||||||
| Bending radius:6×OD | ||||||
| PHYSICAL PROPERTIES | ||||||
| Jacket | ||||||
| Material | PVC | |||||
| Tensile strength | ≥10.3MPa | |||||
| Elongation | ≥100% | |||||
| Aged condition | 113±1℃×168h | |||||
| Percent of original tensile strength | ≥70% | |||||
| Percent of original elongation | ≥65% | |||||
UL758-E258652-20060111A-CertificateofCompliance(2)...
Product character:
Flame rated : VW-1
Tensile strength:≥10.3MPa Elongation:≥100%
Aged condition:113℃×168H
Percent of original tensile strength: ≥70%
Percent of original elongation: ≥65%
