UL2725 Industrial Flexible Cable with VW-1 Flame Rating, Tin Plated Copper Alloy Conductor, and Tinned Copper Stranded for Durability

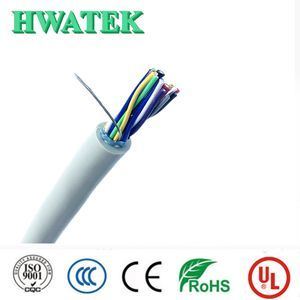

Large Image : UL2725 Industrial Flexible Cable with VW-1 Flame Rating, Tin Plated Copper Alloy Conductor, and Tinned Copper Stranded for Durability

Product Details:

Place of Origin:	China
Brand Name:	HWATEK
Certification:	ISO9001, CE, RoHS
Model Number:	UL2725

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	Negotiable
Packaging Details:	Reels or rolls
Delivery Time:	4 Weeks
Payment Terms:	T/T
Supply Ability:	1000KM/ month

Contact Now

Detailed Product Description

Conductor Material:	Tin Plated Copper Alloy ;Tinned Copper Stranded	Sheath Material:	ETFE
Insulation Material:	PVC	Rated Voltage:	30V
Rated Temperature:	80ºC	Max Conductor Resistance:	:296.9Ω/km
Cable Voltage:	0.5kv/1min	Spec:	HT2505401
Highlight:	VW-1 Flame Rated UL2725 Cable , Tin Plated Copper Alloy Industrial Flexible Cable , Tinned Copper Stranded UL2725 Cable

UL2725 (2C×22AWG+2P×24AWG+WB)+(6C×22AWG+W)+(10C×28AWG+W) 80℃ 30V VW-1 ETFE Insulation PVC Jacket Cable

Product Specifications

ITEM		A:2C×22AWG	B:2P×24AWG	C:6C×22AWG	D:10C×28AWG
CONDUCTOR	Material	Tinned copper stranded			Tin plated copper alloy
	Size	72/0.08	44/0.08	72/0.08	49/0.05
	O.D.(Ref)	0.78mm	0.61mm	0.78mm	0.45mm
INSULATION	Material	ETFE	ETFE	ETFE	ETFE
	Min.average thickness	0.20mm	0.18mm	0.20mm	0.18mm
	Min.thickness at any point	0.18mm	0.13mm	0.18mm	0.13mm
	O.D.	1.37±0.05mm	1.01±0.05mm	1.37±0.05mm	0.85±0.08mm
TWISTED	O.D.	/	2.02mm	/	/
CABLING	Material	Non-woven /		Non-woven /	Non-woven /
	Filler	Optional		Optional	Optional
Braid	Material	Tinned copper		/	/
	Size	0.15mm,≥80%		/	/
JACKET	Material	PVC(oil-resistant)
	Min.average thickness	0.76mm
	Min.thickness at any point	0.61mm
	O.D.	H×W:6.70±0.30mm×20.10±0.80mm

Technical Specifications

ELECTRICAL CHARACTERISTICS
Rated voltage:30V
Rated temperature:80℃
Max. DC conductor resistance(20℃)
A&C&C:59.4Ω/km B:94.2Ω/km D:296.9Ω/km
Voltage withstand test:AC 0.5kV/1min
Insulation resistance:100MΩ·km
PHYSICAL PROPERTIES
Tensile strength:							≥10.3MPa
Elongation:							≥100%
Aged condition:							113±1℃×168h
Percent of original tensile strength:							≥70%
Percent of original elongation:							≥65%

UL758-E258652-20060111A-CertificateofCompliance(2)...

Product character:

Flame rated : VW-1

Tensile strength:≥10.3MPa Elongation:≥100%

Aged condition:113℃×168H

Percent of original tensile strength: ≥70%

Percent of original elongation: ≥65%

Company Profile

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters. In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.

With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.

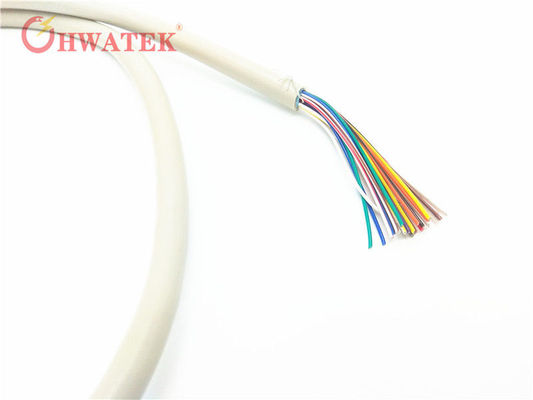

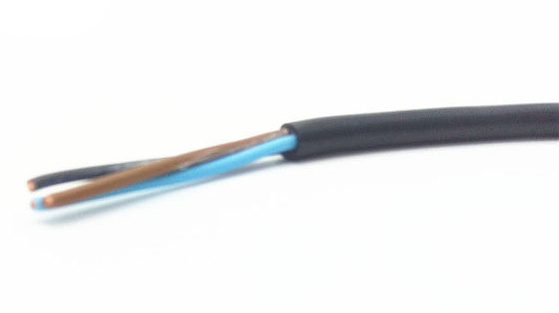

Product Images
